Pump Fluid Suction Filter Kit For Snow Plow Solenoid Pump Custom
Order
The suction filter for a snow plow solenoid pump is a type of
filter that is installed on the suction side of the pump to prevent
debris and contaminants from entering the pump and causing damage
or reducing its performance. It is commonly used in snow plow
hydraulic systems to protect the solenoid pump.
Share Filters' snow plow fluid filter is made of synthetic filter
mesh and thermoplastic by the processing of mesh insert injection
molding. Thanks to wide range of filter mesh openings, Share
Filters' suction filters can be available in different filtration
ratings, which indicate the size of particles they can effectively
capture. It's important to choose a filter with an appropriate
rating that suits the requirements of snow plow system.
It's important to note that specific requirements for suction
filters may vary depending on the snow plow system and pump model.
Always refer to the manufacturer's recommendations and guidelines
for customizing the appropriate suction filter for particular snow
plow solenoid pump.
Share Filters' Plastic Molded Filters Materials Options:
| Support frame material: | PA, PE, PP, ABS and other thermoplastic |
| Filter media: | Nylon mesh, polyester mesh, PP mesh, metalic mesh |
| Mesh opening: | 25 - 200 micron |
| Application: | Fuel filter, oil filter, fluid filter |
| Specification: | Custom |
| Colour: | Custom |
Nylon Filter Mesh Datasheet
| Ref. No. | Mesh Count | Thread Diam. | Mesh Opening | Opening Area |
| mesh/cm | mesh/inch | µm | µm | % |
| JPP40 | 40 | 100 | 100 | 150 | 36 |
| JPP43 | 43 | 110 | 80 | 152 | 43 |
| JPP48 | 48 | 120 | 80 | 130 | 38 |
| JPP56 | 56 | 140 | 60 | 120 | 44 |
| JPP59 | 59 | 150 | 60 | 110 | 42 |
| JPP64 | 64 | 160 | 60 | 100 | 37 |
| JPP72 | 72 | 180 | 50 | 90 | 41 |
| JPP80 | 80 | 200 | 50 | 75 | 36 |
| JPP100 | 100 | 250 | 40 | 60 | 36 |
| JPP120 | 120 | 305 | 40 | 43 | 25 |
| JPP130 | 130 | 330 | 40 | 37 | 23 |
| JPP140 | 140 | 355 | 30 | 38 | 33.7 |
| JPP150 | 150 | 381 | 30 | 34 | 30.25 |
| JPP165 | 165 | 420 | 30 | 28 | 20.7 |
How to select the right filter mesh? You can follow these points.
- Mesh size or the size of the particle you need to filter
- Mesh material (consider the working condition)
- Mesh thread diameter, Mesh thickness
- Opening area
We're a trusted provider of precision injection-molded plastic
parts with mesh filters for critical practices. There are many ways
to make a filtration product. Share Filters Can Offer the woven mesh in different types to meet
customs' different demands.
Woven Filter Mesh in Rolls
The width of nylon filter mesh rolls can be in 100cm, 127cm, 150cm,
160cm, 175cm, 183cm, 365cm or other custom width.
Length can be 30m, 50m, 70m, or other custom length.

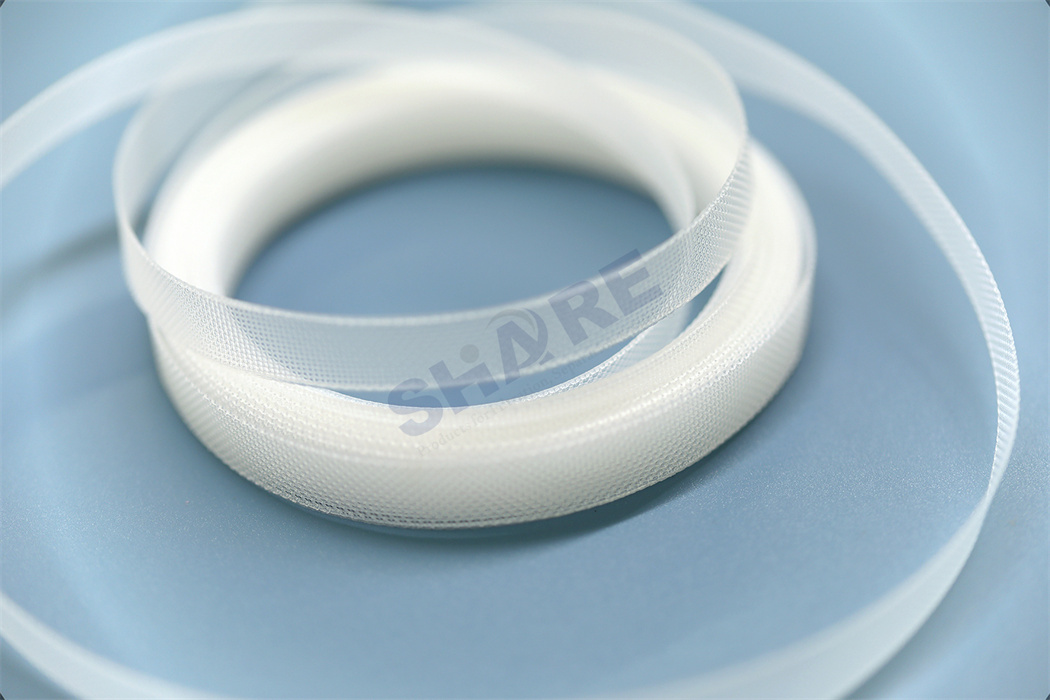

Filter Mesh in Narrow Strips
Share Filters ultrasonic slitting is also used for manufacturing
fabric strips and produces a closed edge with very little material
build up at the edge.
Filter Mesh in Cutted Shapes
Our cutting method include Laser cutting, Cold cutting, Hot
cutting, Slitting, Punching. Professional cutting using custom made
tools that will not damage the materials.

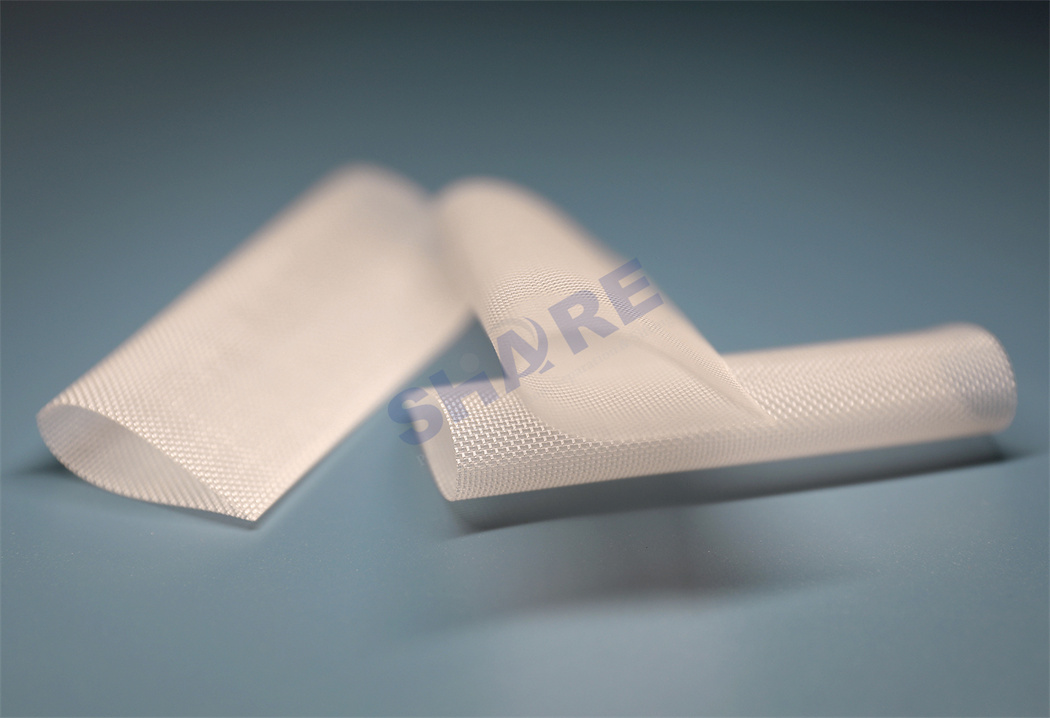

Filter Mesh In Tubes
Sonic welding are accurate, clean. Lapping welding strength to some
degree.
Custom Nylon Filter Mesh Bags
Share Filters has standard filter bags with galvanized steel or
plastic rings, which are sewn or welded, made of regenerable
monofilament filter cloth from 3 micron to 2000 microns or felt
from 0.5 microns to 200 microns.
Mesh Insert Plastic Injection Molded Filters
Our injection moulded filters products consist of a synthetic
filter mesh held in a polymer plastic frame, allowing for a more
robust part/product giving more reliability and longevity in its
use.
