Airless Paint Sprayer Gun Filter OEM Filter With Nylon Mesh Screen

An airless paint sprayer gun filter is a component used in airless paint sprayers, it's located near the inlet of the spray gun to filter out impurities and debris from the paint. It helps ensure a smooth and consistent spray pattern by preventing clogs and blockages in the spray gun nozzle.

Share Filters' OEM airless paint sprayer gun filters can come in various types and sizes, depending on the specific model and brand of the sprayer. They are often made of stainless steel or nylon mesh material combine with thermoplastic, which provides durability and effective filtration.

The Properties of Share Filters Airless Paint Sprayer Gun Filter OEM Filter:

• Durability
• High filtration efficiency
• Easy installation
• Cost-effective

Filter Mesh Insert Production
The quality of the air, fluids, or gases passing through is essential for various applications, from automobiles and water treatment to medical equipment and chemical processing. Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. Take filtration to new performance levels with mesh insert production from component plastics. We’re a trusted manufacture of precision injection-molded plastic parts with mesh filters for critical practices.

Share Filtes Airless Paint Sprayer Gun Filter Materials Options

	Support Frame material	PA6, PA66, PET, PP, ABS, brass, etc.
	Filter media	Nylon mesh, stainless steel mesh
	Micron rating	60μm - 500μm
	Mesh fabrication	Laser cutting, ultrasonic cutting, sonic welding
	Processing	Mesh insert injection moulding
	Specification	Custom
	Colour	Custom

Properties of Polymer Plastic

PA6 (polyamide 6) Tough, abrasion-resistant, good vibration damping, resistant to solvents, fuels and lubricant
PA66 (polyamide6.6) Rigid, stiff, abrasion-resistant, dimensionally stable at heat exposure.
PET (polyethyleneterehthalate) High rigidity, high hardness, high chemical resistance, good dimensional stability.
PP (polypropylene) Good chemical resistance, more heat resistant than PVC
PEEK (polyetheretherketone) High mechanical strength, stiffness, toughness, temperature, chemical and radiation resistance

How To Select The Right Filter Mesh? You Can Follow These Points.

• Mesh size or the size of the particle you need to filter
• Mesh material (consider the working condition)
• Mesh thread diameter, Mesh thickness
• Opening area

PA(nylon) Filter Mesh Specification for Paint Sprayer Gun Filter

This data sheet just include our common specification, please contact us if you have other custom specification

Custom-made Mesh Insert Injection Molded Filters

About Share Filters

Share has over 20 years of experience developing and manufacturing filter mesh and custom product solutions for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.

Factory Capabilities

Filter mesh woven, Mesh Slitting, Cutting Shape, Welding, Sewing, Injection molding.

Share Filters Products Applications

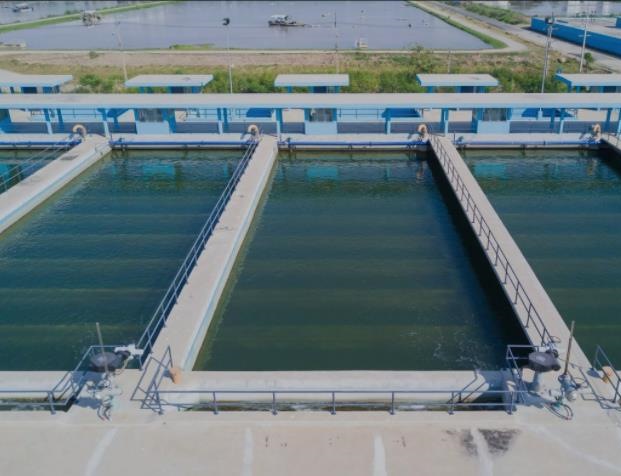

Automotive	Appliance	Medical	Food & Beverage		Environmental

Contact us
Please connect with us so we can learn more about your application and design specifications!

Introduction:

SHARE GROUP LIMITED (hereinafter short for SHARE) is an enterprise set up in 1983, producing and supplying filter fabrics back then. After more than 30 years of fast development, SHARE has successfully developed and evolved into a big group company owning three production units, producing Filter Clothes, Printing Mesh and Plastic Filter Parts separately, however, Sales, After-service and Accounting are maintained and operated under the name of SHARE.

What SHARE offers:

• Industrial Filter Fabrics: Polyester Filter Cloth, Polyamide Filter Cloth, Polypropylene Filter Cloth, Airslide Fabrics, Polyester Filter Mesh, Polypropylene Filter Mesh, Nylon Filter Mesh, Stainless Steel Filter Mesh, Dust Collection and Liquid Filtration Felts and various kinds of Standard and Customized Liquid Filter Bags, Dust Collector Filter Bags made of Filter Mesh, Filter Cloth and Filter Felts.
• Silk Printing Mesh: Mono-filament Polyester Printing Mesh, Multifilament Polyester Printing Mesh, Nylon Printing Mesh, Stainless Steel Printing Mesh
• Molded Filters: Insert/Over-molded Plastic Filters, Rubber-molded Filters

Where SHARE products applied:

• Industrial Filtration: Automotive, Chemical Processing, Cooking Oil/Food Processing, Ethanol, Mining Operation, Municial Waterworks, Oil and Gas, Power Plants, Pulp and Paper Mills, Vehicle Washing Systems.
• Silk Printing: Electronic (Printed Circuits, Membrane Swtiches and Dials, Touchscreen and Displays), Glass, Graphics, Plastics and Packaging, Textiles, Ceramic and Tiles Industry, Solar.
