    Automatic Transmission Hydraulic Fluid Filter Element Stainless Steel Screen

    Ask Lasest Price
    Brand Name : Share Filters
    Model Number : Automatic Transmission Hydraulic Filter
    Certification : SGS
    Price : USD0.60.-USD1.00/pc
    Payment Terms : T/T, L/C, Western Union, Payple
    Supply Ability : 10000pcs/day
    Delivery Time : 7-20 days
    • Product Details
    • Company Profile

    Automatic Transmission Hydraulic Fluid Filter Element Stainless Steel Screen


    Automatic Transmission Hydraulic Fluid Strainer Element Stainless Steel Screen


    What Is a Hydraulic Filter?


    The hydraulic filter is a component within a hydraulic system that removes damaging particulates by forcing hydraulic fluid through a porous filter element. The filter element catches contaminants and prevents them from re-entering the fluid flow and damaging other pieces of equipment further downstream.

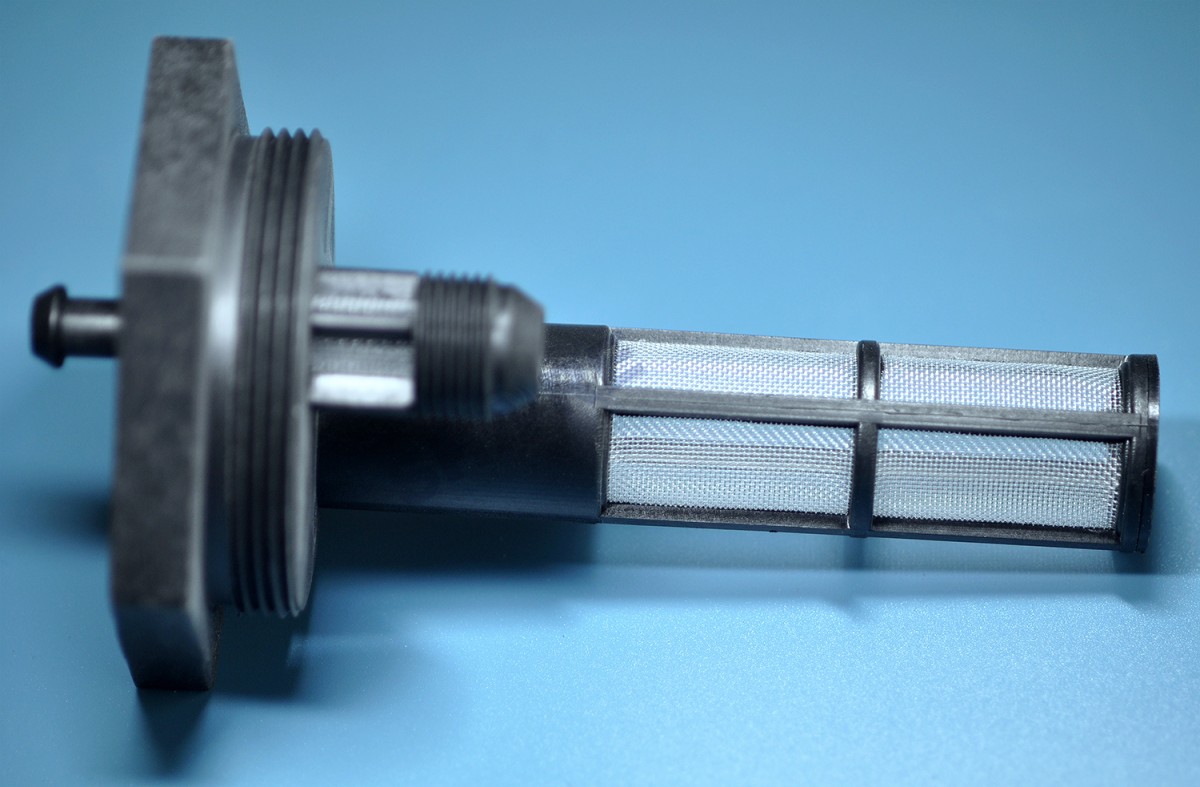

    Share Filters' injection moulded hydraulic filters consist of a stainless steel mesh and synthetic filter mesh held in a polymer plastic frame, allowing for a more robust part/product giving more reliability and longevity in its use. Injection moulding can take many forms and Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit your needs, as well as, offering any additional advice or service along the way.


    transmission hydraulic fluid filter

    transmission hydraulic filter


    In-line hydraulic filters are integrated into a hydraulic system and are used to remove impurity from hydraulic oil. In-line filters are installed on the return line before the pump, valves, and cylinders to clean contaminated hydraulic fluid before it is returned to the tank and recirculated into the system. Clean hydraulic fluid reduces contaminant buildup, reduces maintenance costs, and extends the working life of system components. In-line hydraulic filters can be installed in all typical hydraulic systems, such as those found in industrial, mobile, and agricultural settings.


    Share Filters Mesh Insert Injection Molded Filters Material Options


    Product NameHydraulic Filter Element
    ApplicationHydraulic fluid
    Filter MediaStainless steel mesh, synthetic filter mesh
    Micron Rating60μm - 200μm
    Suport cage materialPA6, PA66, PP, POM, PE, etc.
    DimensionCustom size

    Welded stainless steel mesh tube before injection moulding

    welded stainless steel filter mesh


    Stainless Filter Mesh Specification


    Mesh count (per inch)Thread diameter (microns)ApertureOpen Area (%)Weight (IB) /100 square foot
    inchmminchmm
    1x10.0802.030.92023.3784.641.1
    2x20.0631.600.43711.1076.451.2
    3x30.0541.370.2797.0970.156.7
    4x40.0631.600.1874.7556.0104.8
    4x40.0471.190.2035.1665.957.6
    5x50.0411.040.1594.0463.254.9
    6x60.0350.890.1323.3562.748.1
    8x80.0280.710.0972.4660.241.1
    10x100.0250.640.0751.9156.341.2
    10x100.0200.510.0802.0364.026.1
    12x120.0230.5840.0601.5251.842.2
    12x120.0200.5080.0631.6057.231.6
    14x140.0230.5840.0481.2245.249.8
    14x140.0200.5080.0511.3051.037.2
    16x160.0180.5080.04451.1350.734.5
    18x180.0170.4320.03860.9848.334.8
    20x200.0200.5080.03000.7636.055.2
    20x200.0160.4060.03400.8646.234.4
    24x240.0140.3560.02770.7044.231.8
    30x300.0130.3300.02030.5237.134.8
    30x300.0120.3050.02130.5440.829.4
    30x300.0090.2290.02430.6253.116.1
    35x350.0110.2790.01760.4537.929.0
    40x400.0100.2540.01500.3836.027.6
    50x500.0090.2290.01100.2830.328.4
    50x500.0080.2030.01200.3136.022.1
    60x600.00750.1910.00920.2330.523.7
    60x600.0070.1780.00970.2533.920.4
    70x700.00650.1650.00780.2029.820.8
    80x800.00650.1650.00600.1523.023.2
    80x800.00550.1400.00700.1831.416.9
    90x900.0050.1270.00610.1630.115.8
    100x1000.00450.1140.00550.1430.314.2
    100x1000.0040.1020.00600.1536.011.0
    100x1000.00350.0890.00650.1742.38.3
    110x1100.00400.10160.00510.129530.712.4
    120x1200.00370.09400.00640.116830.711.6
    150x1500.00260.06600.00410.104137.47.1
    160x1600.00250.06350.00380.096536.45.94
    180x1800.00230.05840.00330.083834.76.70
    200x2000.00210.05330.00290.073733.66.2
    250x2500.00160.04060.00240.061036.04.4
    270x2700.00160.04060.00210.053332.24.7
    300x3000.00150.03810.00180.045729.73.04
    325x3250.00140.03560.00170.043230.04.40
    400x4000.00100.02540.00150.37036.03.32
    500x5000.00100.02540.00100.025425.03.80
    635x6350.00080.02030.00080.020325.02.63

    Other Custom Hydraulic Filters


    hydraulic filter


    Share Filters, An OEM Mesh Insert Molded Filters Manufacture From China


    As a filter meshes and molded filters manufacture, Share Filters always find the best solution is to work with our OEM customers to collaborate on their mesh filtration product development projects before the final design prints are completed. Our experienced engineers are able to not only to meet your functional requirements, but also to recommend design alterations to improve performance and manufacturability. We will concentrate on the following:


    Consider Area

    Factors

    Outcoming

    Filtration
    Media
    Select right material, weave type, pore size, thread diam, heat treatment, coatingsMedia selected meets the required performance

    Component Design
    Consider supporting media, housing, end capsThe filtration components can perform well in working condition

    Manufacturing Process
    Design lends itself to easy manufacture and economic costProduced at low cost of manufacture and high efficiency

    Quality Control
    Determine parameters and frequency of measurementHigh quality, precision filter components
