    Double Seam Tube Nylon Polyester Filter Mesh For Plastic Injection Molding Filter

    Ask Lasest Price
    Brand Name : Share Filters
    Model Number : Nylon Polyester Filter Mesh Double Seam Tube
    Certification : SGS
    Price : USD0.06-USD0.95/pc
    Payment Terms : T/T, L/C, Western Union, PayPle
    Supply Ability : 20000pcs/day
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    Double Seam Tube Nylon Polyester Filter Mesh For Plastic Injection Molding Filter


    Nylon Polyester Filter Mesh Double Seam Tube For Plastic Injection Molding Filter


    For injection molding, Share Filters offer our filtration solutions in the form of one to two seam tubes or tube sections. Our tubes are used in a variety of applications or products, such as: automotive filters, healthcare filters, appliance filters, etc.

    Share Filters not only manufactures and supplies the woven filter meshes in rolls, but also has the capability to convert these filter mesh to be various of ribbons, shapes, tubes. After heat or ultrosonic slitting, the mesh ribbons can be cut and welded to mesh tubes.


    Filter Mesh Double Seam Tube Options

    filter meshProduct Name:Filter Mesh tube
    Color:White, yellow, black and other colour
    Material:Nylon mesh, polyester mesh, PP mesh
    Certificate:SGS
    Weave type:Plain Woven
    Mesh Opening:16-2000μm
    Tute inner diameter:

    Custom specific, ≥3mm

    Seam type:Heat-slit, ultrasonic welding
    Supply form:By mesh tube rolls or cut to length
    Samples supply:5-10pcs free sample

    The inner diameter of the tube does not equal the flat width of the tube itself. The effect of welded 'wings' on either side has to be taken into consideration. The width depends on the mesh type

    • Heat-slit tubes diameters range 6 - 320 mm
    • Ultrasonic flat-welded tubes diameters range 2 – 168 mm

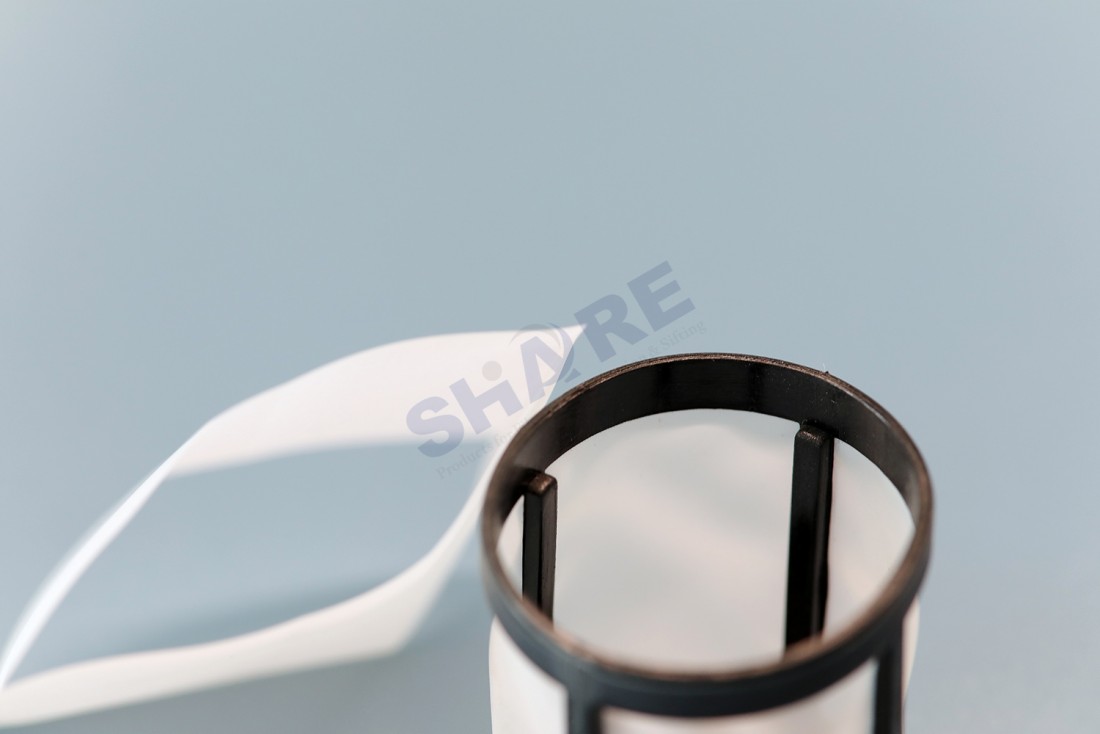

    double seam tube

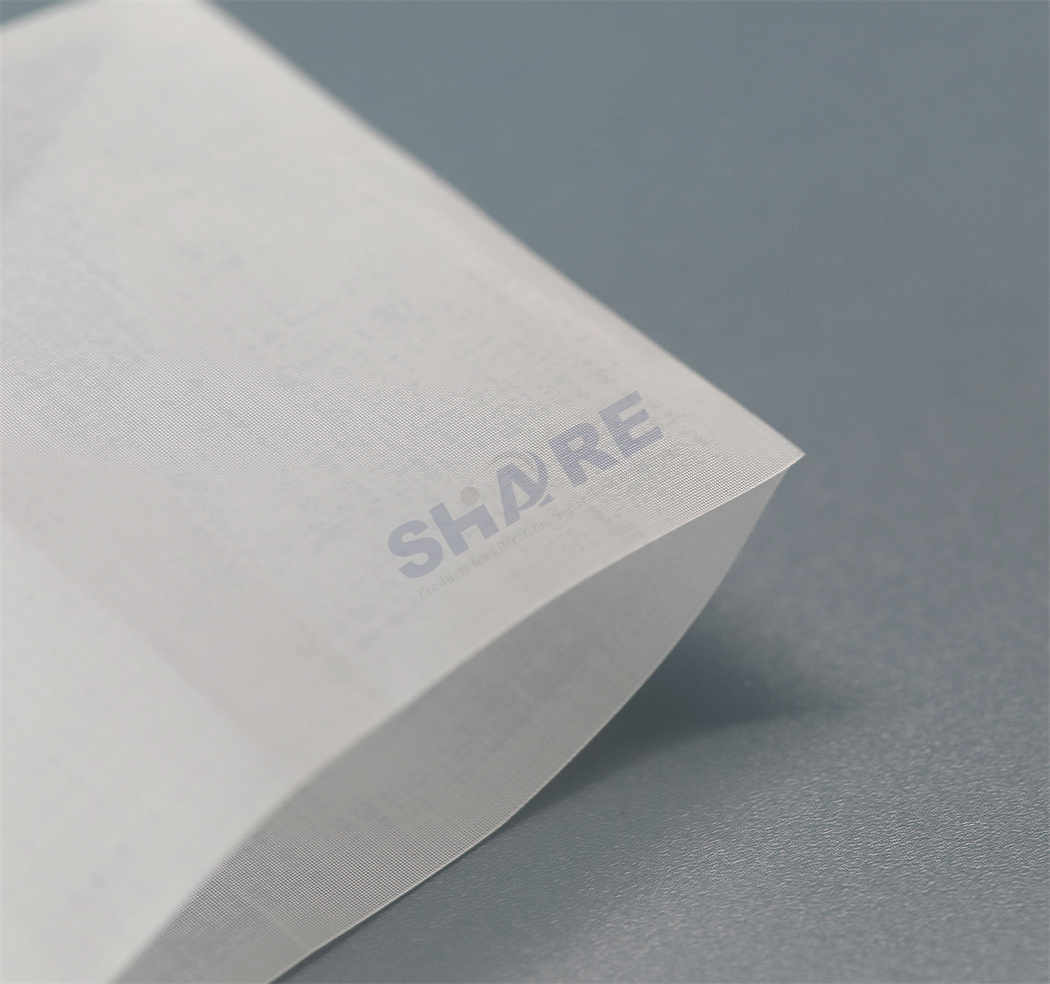

    double seam filter mesh tube


    Filter Mesh Tubes Types


    Tube with double seams



    Dual-layer slit tubes have two edges on the side of the tube, heat slitting and ultrasonic slitting
    Tube with only one functional seam

    single seam mesh tube


    Hot and ultrasonic cutting technologies, the tubes are equipped with one or two functional seams, which provide the necessary seam strength, usually used for injection molding
    Tube with one overlapping ultrasonic welding seam


    Ultrasonic welded tubes have one overlapping weld and like in the ultrasonic slitter, filter mesh having thread diameters < 250 µm and mesh openings < 500 µm can be ultrasonically welded
    Continous Filter Mesh Tube Rolls


    Tube rolls are packed into PE bags that are closed by welding, the custom can cut to any length
    Precut to length Filter Mesh Tube
    Cut to custom specific length


    What Share Filters Do


    Share has over 20 years of experience developing and manufacturing filter mesh and custom product solutions for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.


    Factory Capabilities


    Filter mesh woven, Mesh Slitting, Cutting Shape, Welding, Sewing, Injection molding.

    filter mesh ribbon filter mesh shape disc welded filter mesh fabrication sewn filter mesh bag


    Share Filters Workshops
    Share Filters workshops


    Share Filters Products Applications


    AutomotiveApplianceMedicalFood & BeverageEnvironmental

    Contact us
    Please connect with us so we can learn more about your application and design specifications!


    Nylon Filter Mesh Datasheet


    Ref. No.Mesh CountThread Diam.Mesh OpeningOpening Area
    mesh/cmmesh/inchµmµm%
    JPP5512500150056
    JPP6616400126758
    JPP7718350107957
    JPP882035090052
    JPP992425086060
    JPP10102530070049
    JPP12123025058349
    JPP12123030053341
    JPP14143530041434
    JPP16164020042546
    JPP16164025037536
    JPP20205015035049
    JPP20205020030036
    JPP24246015026741
    JPP28287012023744
    JPP30307612021341
    JPP32328010021346
    JPP36369010017841
    JPP404010010015036
    JPP43431108015243
    JPP48481208013038
    JPP56561406012044
    JPP59591506011042
    JPP64641606010037
    JPP7272180509041
    JPP8080200507536
    JPP100100250406036
    JPP120120305404325
    JPP130130330403723
    JPP140140355303833.7
    JPP150150381303430.25
    JPP165165420302820.7
    JPP180180460302519.5
    JPP200200510301610.2
