Nylon Filter Mesh Pore Size 1270μm 1500μm 1590μm 3233μm Coarse Gauze

The monofilament nylon fibers can be woven very precisely to create industrial textiles with narrow and even pore distribution. This precision weaving process creates fine mesh woven fabrics with apertures (hole sizes) as small as 3 micron. Share Filters' stock of nylon filter mesh screening is available in a variety of specifications that take into consideration of the mesh opening (µ), open area, mesh count (threads per inch) and thread diameter. Other specifications such as weight (kg/m²), thickness (µ), and air permeability are available upon request.

Fabricated Filter Mesh Parts

Share Filters has the ability to engineer our woven filter meshes into finished or partly finished products. The filter meshes available in nylon mesh, polyester mesh, PP mesh and stainless steel mesh. Thanks to advanced processing equipment and more than 20 years of experience, Share Filters provides meshes fabrics cut to size, lot-to-lot consistency and high quality custom fabricated parts, in almost any requested shapes. We process the filter mesh into all kinds of filter components, like ribbons, pieces, tubes, bags, moulded filters, which applied in different equipments.

Product Details

Nylon Mesh Technical Data Micron 700μm - 3233μm

This just a part of specifications which common used.

Edge Qualities of Fabricated Filter Mesh

The edge quality differs significantly depending on processing technology

Processing Technologies	Ultrasonic slitting & welding	Heat slitting & cutting	Laser cutting	Cold cutting & punching
Fabrication Method	Mesh materials are slitted while crushing the edge with ultrasonic vibration	Mesh materials are slitted by heat treatment (temperature close to melting point)	Almost all shapes and sizes can be processed with laser cutter	Mesh are cut by cold slitting or punching
Edge Quality
Advantage	Very clean cut edges, small material build-up tight tolerances possible	Closed edge due to melting, possible for most mesh fabrics	Heat-sealed, non-fraying edges. High flexibility	Non-sealed edge. The most economical process, possible for all fabrics.

Examples of Fabricated Filter Mesh Components

Share Filters has the ability to engineer woven meshes into finished or partly finished products. Thanks to advanced processing equipment and more than 20 years of experience, Share Filters provides meshes fabrics cut to size, lot-to-lot consistency and high quality custom fabricated parts, in almost any requested shapes. We process the filter mesh into all kinds of filter components, like ribbons, pieces, tubes, bags, moulded filters, which applied in different equipments.

What Share Filters Do?

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.

We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

Precise Filter Mesh Weaving The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

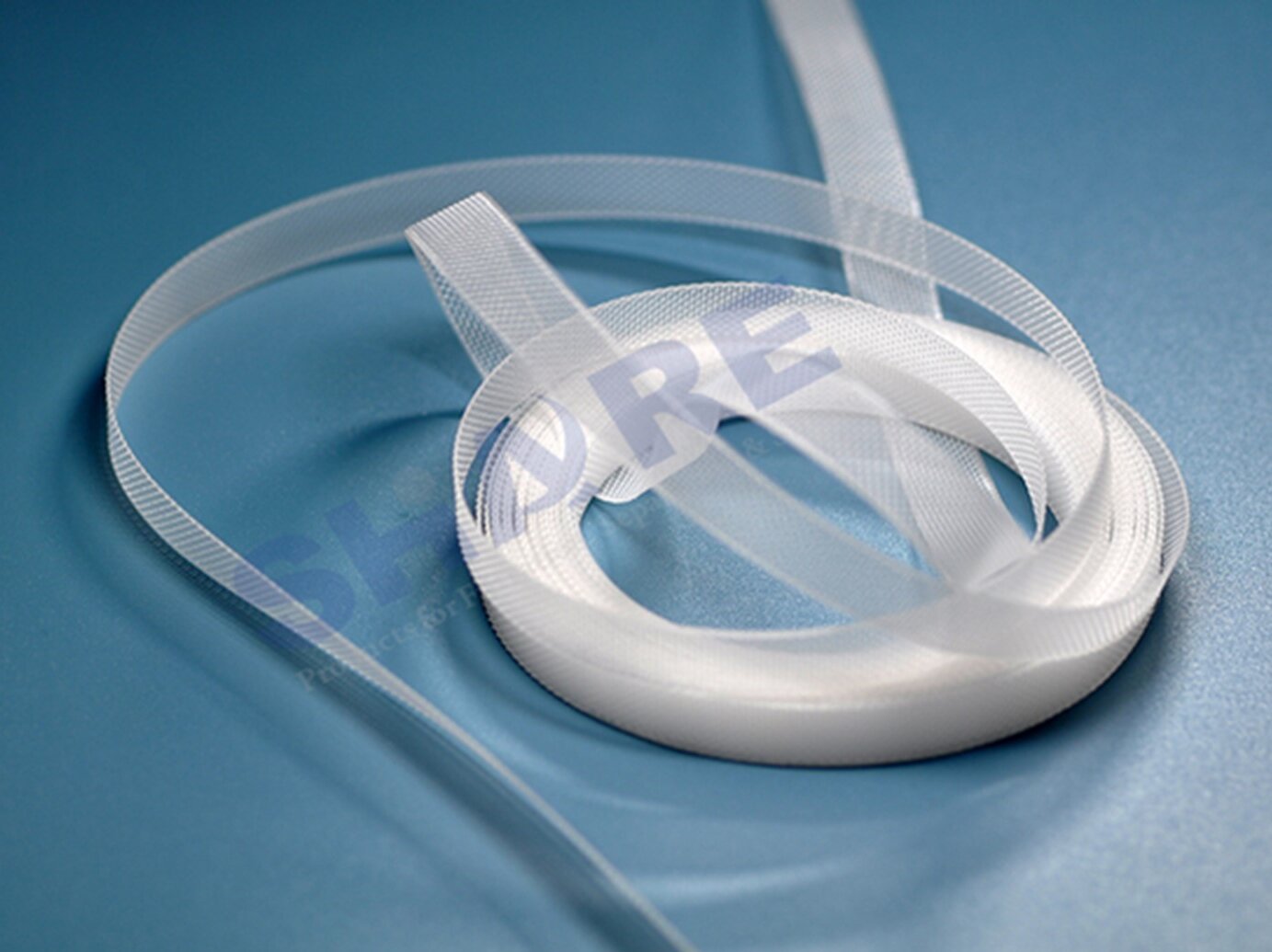

Filter Mesh Slitted in Narrow Ribbons Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. Ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. Advanced heat and ultrasonic slitting and cutting equipment enables the production of various kind of mesh ribbons with clean edges.

Filter Mesh Pre-Cut Pieces and Shapes Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.

Cutting and Welding Tubes With our heat and ultrasonic cutting technologies, we can create continuos tubular in ribbons and pre-cut tubes. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.

Custom Filter Mesh Bag by Welding and Sewing Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter medium (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shapes. If the filter fabric is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 5- 15 working days.

Mesh Insert Injection Moulded Plastic Filters Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.

Example of Application

Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical and etc., giving us a wealth of experience in many areas.

Automotive	Laboratory	Healthcare	Appliance	Beverage	Agriculture
Fuel filter	Biopsy bag	Blood filter	Dryer filter	Coffee filter	Water strainer

Packing & Transportation

Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

• Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
• Large quantities is better by sea which is cost economic. Sometimes by air if urgent in need.
• SF EXPRESS usually to Hongkong and Southeast Asia countries.
• Samples are always sent via express commonly.

Contact Us

Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.

Please connect with us today so we can learn more about your application and design specifications!

FAQ

Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.

Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.

Which Port You Ship?

Ningbo port.

Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.

What's Your Payment Term ?

T/T, LC, PayPal, and others.

What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.

What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.

Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.

How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
