Nylon PA6 Filter Mesh Welded Tube Screen for Blood Filter Injection Moulding

The blood tubular filters are an essential component of hemodialysis and transfusion drip chambers, comprising a filter mesh screen tube with pore sizes ranging from 40 to 300 microns. The blood filters remove waste products such as urea, creatinine, and excess electrolytes from the blood, while allowing essential substances like red blood cells and proteins to remain in the bloodstream.

Share Filters' blood tubular filter screen made from polyester nylon or polyester filter mesh, it's welded in one or two seams by ultrasonic welding or laser which is convenient for further injection moulding. The filter mesh opening available in 40μm, 150μm, 170μm, 200μm, 260μm 300μm, and other custom specified microns. The high throughput rates and precise mesh openings of Share Filters' filter meshes contribute to the excellent reliability and performance of blood hemodialysia and transfusion sets.

Features of Share Filters' Nylon Mesh Welded Tube

Technical Data

Product Pictures

Share Filters not only manufactures the filter mesh tube, but also supplies the moulded tubular filter for the blood filter.

The injection moulding processing can take in many forms, allowing for a more robust part giving more reliability and longevity in its usage. Thanks to advance equipments and more than 20 years of experience, Share Filters is fully capable to help develop and produce the injection moulded filter products that will best suit your needs, as well as offering any additional advice or service along the way, from tool making to final products.

Filter Pore Size

Blood transfusion and hemodialysis filters have specific pore sizes that determine the types and sizes of particles they can effectively remove. The pore sizes are measured in micrometers (μm), and the choice of filter depends on the desired level of filtration and the specific requirements of the transfusion and hemodialysis.

Nylon Filter Mesh Datasheet for Blood Filter

This just a part of specifications which commonly used.

Mesh count (n/cm), (n/in) The mesh count stands for the number of openings per inch. Mesh opening (μm) The mesh opening w is the distance between two adjacent warp or weft thread. Thread diameter (μm) The thread diameter is measured on the thread before weaving. Open area (%) The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area

Other Medical and Biochemical Filter Components

Example of Application

Automotive	Laboratory	Healthcare	Appliance	Beverage	Agriculture
Fuel filter	Biopsy bag	Blood filter	Dryer filter	Coffee filter	Water strainer

What Share Filters Do?

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world.

Filter mesh in rolls, shapes, tubes, bags, Injection-moulded filters and similar products of various shapes, sizes are our primary business.

As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure, from simple components like mesh pieces to complex devices like custom combination moulded filters.

We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic injection moulding in good conditions. The moulding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

Factory Capabilities

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene, Selecting the high-quality monofilament thread, Share Filters weaves filter mesh with Sulzer P7100 looms. The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.

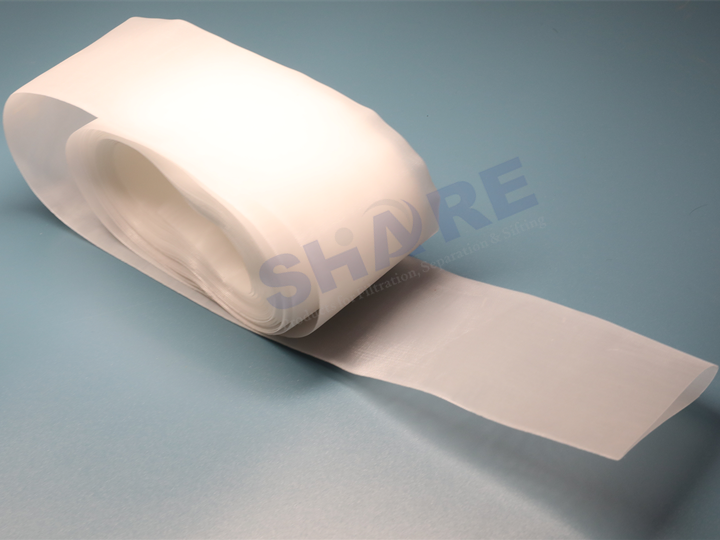

Filter Mesh Slitted in Narrow Ribbons Filter mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of mesh ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

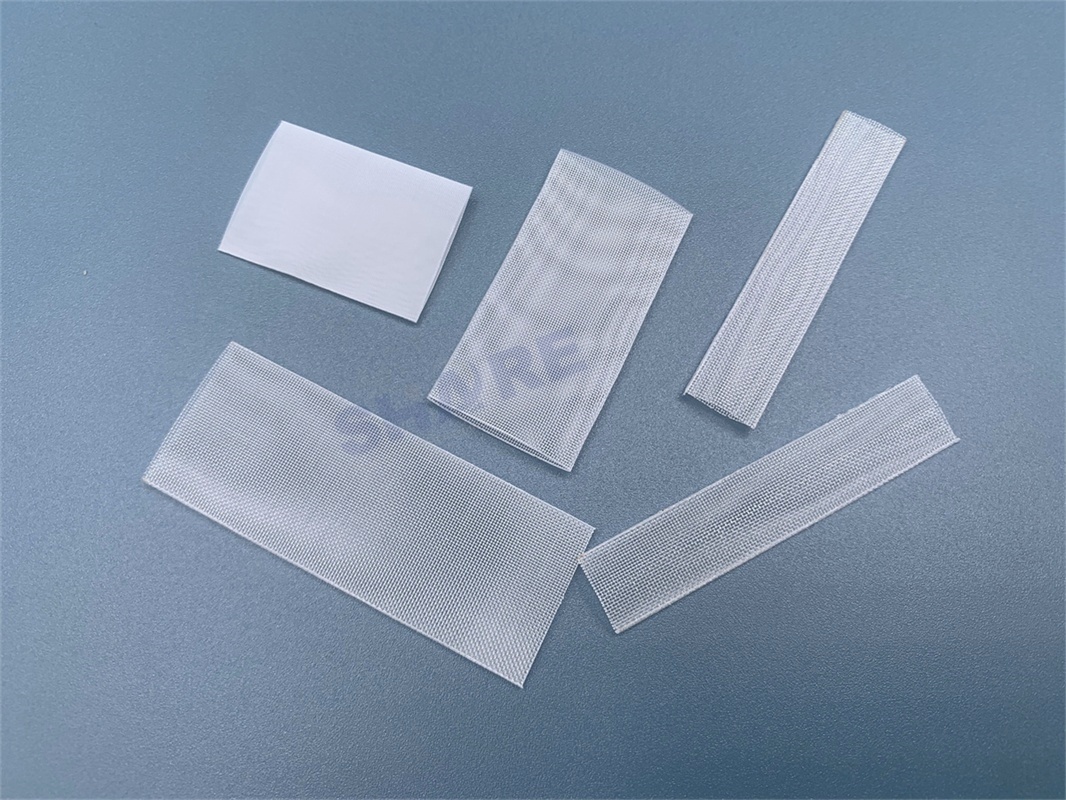

Filter Mesh Pre Cut Pieces and Shapes Share Filters cutting methods include Laser cutting, Cold cutting, Heat cutting and Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.

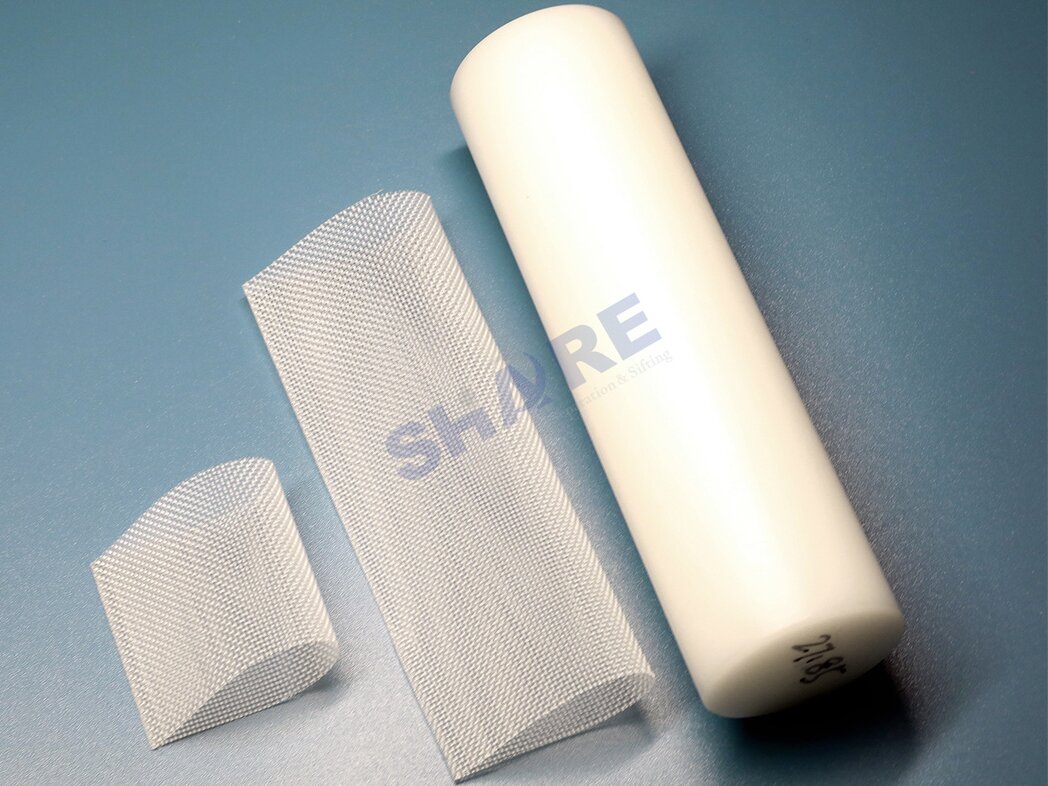

Filter Mesh Tubes and Tubular Ribbons Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat, sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre-cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

Custom Filter Mesh Bag by Welding and Sewing Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter medium (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shapes. If the filter fabric is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 5- 15 working days.

Photos of Factory

Warping	Weaving	Inspection
Whashing	Heat setting	Ultrasonic welding

Delivery and Transportation

Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

• Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
• Large quantities is better by sea which is cost economic. Sometimes by air if urgent in need.
• SF EXPRESS usually to Hongkong and Southeast Asia countries.
• Samples are always sent via express commonly.

FAQ

Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.

Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.

Which Port You Ship?

Ningbo port.

Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.

What's Your Payment Term ?

T/T, LC, PayPal, and others.

What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.

What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.

Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.

How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
