    Tumble Dryer Polyester Fine Filter Mesh 149, 183, 209, 294 um

    Ask Lasest Price
    Brand Name : SHARE FILTERS
    Model Number : SG-PM-47
    Certification : Reach Svhc, SGS RoHS, US California Proposition 65
    Price : $1 for 1000 PCS, $0.9 for 5,000 PCS, $0.8 for 20, 000 PCS
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 10, 0000 pcs / day
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

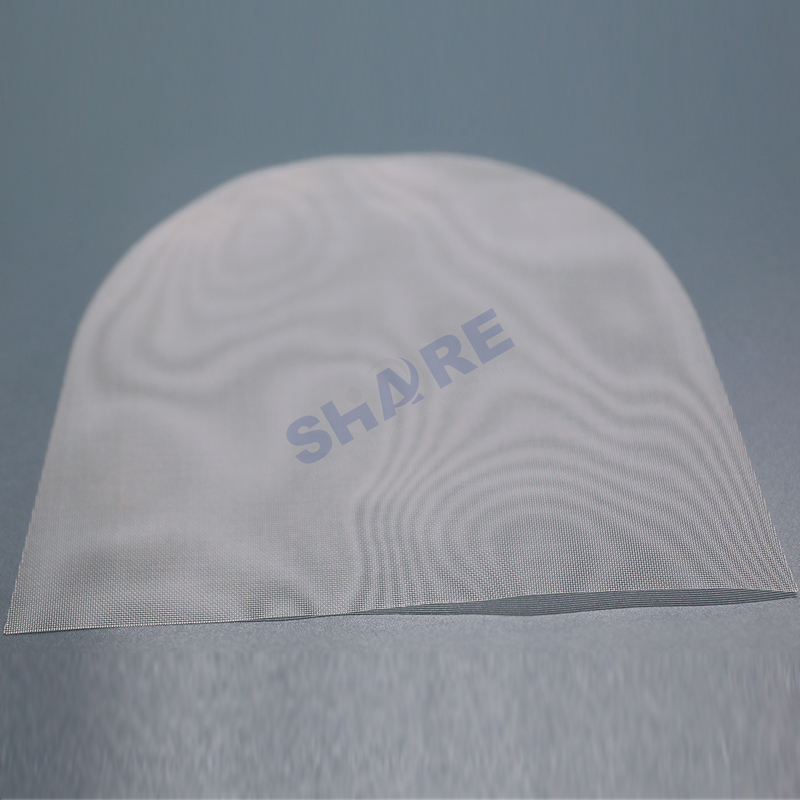

    Tumble Dryer Polyester Fine Filter Mesh 149, 183, 209, 294 um


    SHARE precision polyester filter mesh improve the performance of your tumble dryer by holding back all solid pieces above a desired size.
    SHARE polyester fabrics resist the hot air flow and mechanical stress while remaining durable and easy to clean.


    The polyester filter meshes we recommend for Tumble Dryer Filters are:

    SHARE DPP43T/110-80W PW (PET, 149µm mesh opening)
    SHARE DPP36T/92-90W PW (PET, 183 µm mesh opening)
    SHARE DPP32T/83-100W PW (PET, 209 µm mesh opening)
    SHARE DPP24T/60-120W PW (PET, 294 µm mesh opening)


    Tumble Dryer Polyester Fine Filter Mesh 149, 183, 209, 294 um


    Specifications


    Product NameTumble Dryer Polyester Fine Filter Mesh
    ManufacturerTaizhou Share Filters Co. Ltd.
    BrandSHARE FILTERS
    Material and itemFood grade polyester monofilament filter mesh:
    • SHARE DPP43/110-80W PW (PET, 149µm mesh opening)
    • SHARE DPP36/92-90W PW (PET, 183 µm mesh opening)
    • SHARE DPP32/83-100W PW (PET, 209 µm mesh opening)
    • SHARE DPP24/60-120W PW (PET, 294 µm mesh opening)
    ColorWhite
    Weave typePlain woven, twill woven, dutch woven
    Common width100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm or customized
    Roll length30-100 mester or customized
    Mesh count/cmDPP8T-DPP200T
    Mesh count/inch20 mesh/inch-508 mesh/inch
    Thread diameter27um-600um
    Mesh opening5um - 4400um
    Open area10% to 92%
    Thickness41um -1170um
    CertificateISO19001 SGS ROHS
    Samples2 meters free
    Advantages
    • Acid and alkali resistance
    • High temperature resistance up to 150ºC
    • Excellent resistance to wear
    • Low water absorption
    • Easy cleaning
    • Easy to install and replace
    • High tensile strength
    • Even mesh and accurate filtration
    • Available in the forms of fabrics and plastic filters
    ApplicationsTumble dryer filters


    Technical Datasheet


    Precision Polyester Filter Mesh Specifications
    Mesh count
    (per cm/inch)
    Weave
    (tw or pw)
    Thread diameter (microns)Mesh opening (microns)Overall fabric thickness (microns)

    Open area

    (%)

    Theoretical
    ink deposit (cm3/m2)
    Mesh Weight (gsm)
    24/60-120WPW12029421049.7104.381
    32/83-100WPW10020916644.572.175
    36/92-90WPW9018314743.364.968
    43/110-80WPW8014913040.853.064


    Product Gallery


    Yarn, Weave and Mesh


    Polyester Monofilament

    • Excellent diameter control for precise openings
    • High flow rates and low pressure drops
    • Filtration by surface particle capture
    • Excellent surface particle release, easy to clean
    • High degree of stiffness


    Plain Weave


    Plain weave is made by crossing the warp and weft yarns with each other. Well-regulated and highly durable textile fabrics can be created as there are many points where the threads cross each other (structure points). It is also resistant to friction.


    Since the warp and weft yarns appear on the front and rear surfaces of the textile uniformly, it is sometimes difficult to make a distinction between the front side and the rear side compared to other structures.


    Mesh


    SHARE precision polyester filter mesh has smooth surface, great dimensional stability and strength than other material options, and tighter tolerance. It has different but precise open area ranging from 10% to 92%, mesh opening from 5um to 4400um, and thicknesses from 40um to 1170um. These allow for the different sized polyester filter meshes to be used in different situations and for different purposes, such as home appliance, liquid filtration, dust collection or separation, dry and wet filter bags, sifting, milling, automotive, medical, food, pharmaceutical, molded filters and many more.


    SHARE can further processed polyester filter mesh into various forms of custom filters, such as filter pieces, shapes, ribbons, tubes, plastic filters by our state-of-the-art technologies of cutting, stitching, gluing, welding, laser cutting, molding and more, to fuifil customers and markets' demanding filtration and screening needs.

    Contact SHARE today for additional information and how we can help you with your specific filtration requirements.


    SHARE Shapping Capabilities


    1. Laser Cutting

    Laser cutting produces highly precise fabric parts with a heat-sealed edge. Share uses different laser cutting systems to meet customers various requirements including semi-automated vision systems and fully automated with AI programming.

    2. Heat Slitting
    Heated knives are used to create fabric strips/ribbons for much many applications such as injection molding, and hot-cut mesh edges are melted to enhance durability. Optical measuring systems measure ribbon width with tight tolerances.

    3. Ultrasonic Slitting
    Ultrasonic slitting are often used to produce fabric strips with closed edge, minimal material build-up. Ultrasonic cutting is ideal for precise and clean edge quality, and measurements are conducted using optical systems too.

    4. Ultrasonic Stamping
    Often used for highly precise fabric parts.

    Ultrasonic stamping ensures tight geometric tolerances. The edges are non-fraying. One tool is used for punching and can be used for larger quantities. Optical measuring systems measure dimensions and tolerances.


    5. Tubes and Tube Cuts
    Different processes are used for tube production.

    Ultrasonically welded overlap seams are used for functional seams, while hot cutting technology economically produces transport seams.


    6. Ultrasonic Welding
    Ultrasonic welding has accurate, clean welds without introducing secondary materials. SHARE produces precision cylinder filters by ultrasonic welded tubes.

    7. Pleating
    We increase the filter surface through pleating. Fabrics are firstly welded then pleated together, and cut to size of pleats.

    8. Injection Molding
    Share molded filters provide high flow rates and low pressure drops by maximal open area.
    SHARE convert our fabrics to various plastic molded filters by technologies of plastic insert molding and overmolding.


    Packaging & Shipping


    For mesh rolls:


    1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
    2. 2-8 rolls per standard export carton
    3. Put into PP woven bag to prevent damage during transportation
    4. Package belt strengthen

    For fabricated & molded filters:


    1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
    2. Put into b
    igger PE bag and then standard export carton
    3. W
    rapped the outer carton with PE stretch film to prevent damage during transportation
    4.
    Package belt strengthen if pallets are available


    The label contains the following standard information:
    item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.

    Port to PortDoor to Door
    Express(DHL,UPS,FEDEX, EMS)1 - 5 days
    Air Freight1 - 5 days4 - 10 days
    Sea Freight(FCL)15 - 30 days20 - 35 days
    Sea Freight(LCL)15 - 30 days22 - 37 days

    FAQ


    ​​1. Where is your factory located? How can I visit there?

    We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

    2. Can I get free samples and how long can you deliver them?
    We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.


    3. How long does a quotation take?
    In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

    4. How quickly can I get my order finished?
    The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

    5. What about your quality control?
    By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.


    6. What's your largest advantage?
    One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

    7. What kind of payment terms do you accept?
    T/T and LC and more.
