Precision Technical Mesh Fabrics And Converted Parts For Automotive, Medical, Industrial

Share Group Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Precision Technical Mesh Fabrics And Converted Parts For Automotive, Medical, Industrial from wholesalers

    Buy cheap Precision Technical Mesh Fabrics And Converted Parts For Automotive, Medical, Industrial from wholesalers
    • Buy cheap Precision Technical Mesh Fabrics And Converted Parts For Automotive, Medical, Industrial from wholesalers
    • Buy cheap Precision Technical Mesh Fabrics And Converted Parts For Automotive, Medical, Industrial from wholesalers
    • Buy cheap Precision Technical Mesh Fabrics And Converted Parts For Automotive, Medical, Industrial from wholesalers
    • Buy cheap Precision Technical Mesh Fabrics And Converted Parts For Automotive, Medical, Industrial from wholesalers

    Precision Technical Mesh Fabrics And Converted Parts For Automotive, Medical, Industrial

    Ask Lasest Price
    Brand Name : SHARE FILTERS
    Model Number : SG-SF-02
    Certification : Reach Svhc, SGS RoHS, US California Proposition 65
    Price : $0.3 for 1000 PCS, $0.28 for 10,000 PCS, $0.2 for 100, 000 PCS
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 10, 0000 pcs / day
    Delivery Time : Normally 5 to 30 Days
    • Product Details
    • Company Profile

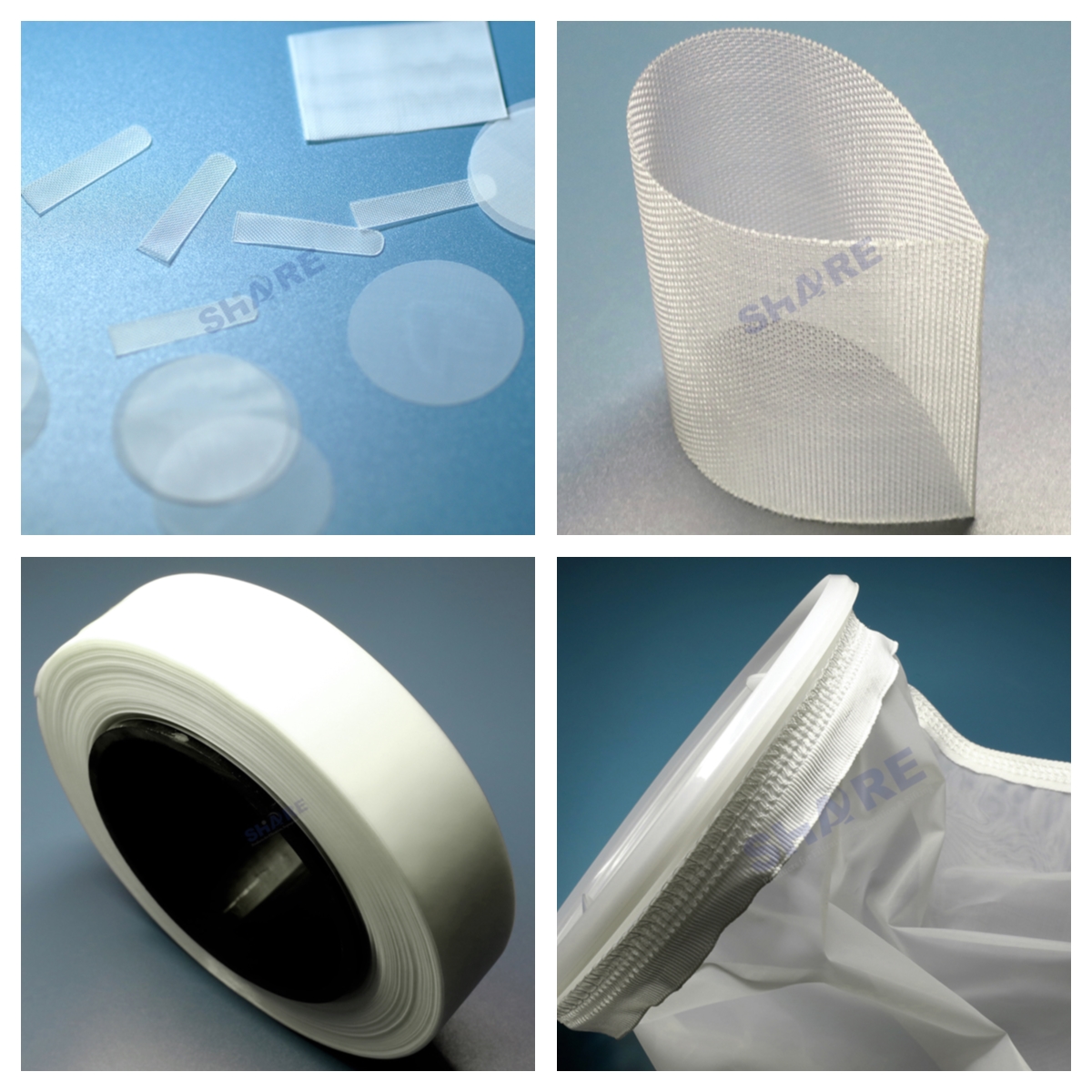

    Precision Technical Mesh Fabrics And Converted Parts For Automotive, Medical, Industrial

    SHARE offers a comprehensive selection of technical synthetic filter mesh fabrics, cut pieces and plastic molded filters, available in custom or standard formats to suit your applications and specifications in various industries, including automotive, medical, home appliance, chemicals, irrigation, agriculture, food and many others.



    We provide


    1. Synthetic filter mesh

    • Nylon, polyester, polypropylene materials(food grade available)
    • Monofilament and plain weave
    • Eco-friendly, reusable and recycled
    • Precision mesh opening from 3um to 4mm, open area from 1% to 92%
    • Good dimensional stability, great strength, strong abrasion, chemical and thermal resistance

    2. Cut pieces

    • Hot cutting technologies(innovated cold, laser, heat and ultrasonics facilities)
    • Clean, smooth, sealed, non-fraying edge
    • Available in almost any size and shape
    • Proceeded and packaged in cleanrooms upon request

    3. Plastic molded filters
    • Custom size and shape (cone, cylinder, disc, pleated, panel or specialised filters)
    • Maximum material selection (for both plastic and mesh)
    • Clean smooth surface
    • High flow rate
    • Chemical pH range 1-14
    • Great heat resistance
    • Manufacturing expertises and experiences support



    Customers trust SHARE filtration solutions for customization, full traceability, consistent reliable performance and lot-to-lot accuracy. We help customers with their application at every stage of development to make sure quality mesh filters at competitive price with fast delivery.


    Specifications


    Item NamePrecision Technical Mesh Fabrics and Converted Parts
    ManufacturerTaizhou Share Filters Co., Ltd
    BrandSHARE FILTERS
    Plastic We Often UseABS, PP, HDPE, POM, PA66, PA6+GF, TPU, PBT
    Filter Fabrics We Often Use1. Synthetic Filter Meshes
    Polyamide filter mesh, polyester filter mesh, polypropylene filter mesh, polyethylene filter mesh
    2. Metallic Filter Mesh
    Stainless steel filter mesh, brass filter mesh, other alloy filter meshes
    3. Other filter fabrics and filter felts
    Plastic ColorBlack white blue yellow red and any Pantone colors
    Filter Mesh ColorNatural white or custom color
    Micron Rating3 um to 4mm
    Product FormsRolls, discs, pieces, ribbons, sheets, tubes, bags, pleated elements, plastic molded filters
    Product SizeCustomizable size according to customer needs and applications
    SampleAvailable upon request
    Processing TechnologyCold stamping, laser cutting, heat slitting, ultrasonics cutting, stitching, gluing, plastic inset molding and over molding
    Quality ControlVisual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, self-inspections, spot inspections and final inspections at every stage of the process
    Features
    • Precision mesh opening
    • Excellent surface particle release, easy to clean
    • Wide range of plastic and variety of filter media available
    • Consistency and quality, reduced cost and maintenance, ease of installation and replacement
    • Adaptable to any system configuration
    • Long life in aggressive environments
    • Environmentally friendly (fully recyclable)
    Your Benefits
    • 40 years of application expertise and manufacturing experience to support customers
    • Complete filtration solution with competitive pricing
    • Daily status update
    • Fast delivery
    • 24/7 aftersales service support
    Applications
    • Agricultural, aerospace, air filtration, automotive,
    • Beverages, biotechnology, building trades,
    • Chemical analysis, clean rooms, cleaning products, clothing,
    • Computers, confectionery, construction, consumer durables, cosmetics,
    • Dairy products, dental, domestic appliances, drinks,
    • Electronics, fishing, flour, food, furniture,
    • Gas, grain, health care, heating, hotels,
    • Industrial engineering, laboratory, livestock,
    • Machine tooling, manufacturing, medical, mesh filters,
    • Metalworking, military, mining,
    • Oil, petroleum, pharmaceutical, plastics, printing and publishing, pulp, paper,
    • Quarrying, refining, restaurants,
    • Semiconductors, shipping, smelting, space, steel, sugar, swimming pools,
    • Textile, timber, tobacco production, toys, transport,
    • Utilities, ventilation, waste management, water purification.

    Precision Technical Mesh Fabrics And Converted Parts For Automotive, Medical, IndustrialAt SHARE, we produce filter materials characterized by precise mesh openings, open area and mesh thickness by ourselves. The most commonly filter material are the following:


    Polyamide mesh (Nylon): Resistance to acids is limited and dependent on the concentration and temperature. Excellent resistance to alkalis, including caustic soda and caustic potash. Chemical performance against organic solvents is very good. Temperature resistant from 0 to 115 °C when dry, 95 to 100 °C in water.

    Polyester mesh: Resistant to most acids. Not resistant to alkalis. Temperature resistant from -75 to +150 °C (for short periods), up to 135 °C for longer requirements.

    PP mesh: Humidity resolution at 95% rel. air moisture and 25 °C is less than 0,01%. Resistant to alkalis, even in high concentrations. Use with organic solvents is limited. Temperature resistant from 0 to +100 °C (for short periods), up to 90 °C for longer requirements.


    Customers have different requirements for filtration & separation , and relying only on single fabrication technology is not sufficient to meet the challenges of today's demanding filtration market . Therefore, after years of developments, SHARE has developed expertise in almost all processing technologies, including cold cut& stamping , heat slitting , laser cutting, ultrasonics cutting, stiching, gluing, pleating, and injection molding etc.We are able to convert our precision woven filter mesh fabrics(mainly PA, PET, PP) into various cut-to-size and cut-to-length discs, tubes, tube cuts, ribbons, shapes, sections, bags. These are just a few examples that SHARE processes with laser cutting, welding and stiching technology.


    Shapping Capabilities



    SHARE Fabricated Product
    SHARE Fabrication Capabilities
    COLDHEATULTRASONICSLASER
    Continuous & tubular ribbonsRibbonRibbonRibbon
    Double seam tubular ribbonDouble seam tubular ribbon
    Multiple layer ribbonMultiple Layer ribbon
    Multiple layer tubular ribbon
    Single seam tubular
    ribbon
    Tubes & RectanglesFilter segment, two sides heat cut,
    two sides cold cut
    Rectangle, four sides
    ultrasonically cut
    Rectangle, two sides heat cut and two sides ultrasonically cut
    Tube, two open endsTube, two open ends,
    hot wire cut
    Tube, one end sealedTube, two open ends, laser cut
    Tube special execution
    (single/double layer)
    Biopsy bag with or
    without flaps
    ShapesCold punched part
    (single layer)
    Punched part
    (single or multiple layer)
    Single layer shapes, laser cut
    Pleated ElementPleated pack
    (ultrasonically cross cut)
    Pleated cartridges
    (ultrasonically sealed)
    Cone Shaped
    (Truncated)
    Single seam
    Double seam
    (single/double layer)


    We have created thousands of filtration solutions to help customers achieve the best filtration configuration and solution for various applications, including appliance, electronics, medical and healthcare, automotive, food and beverage, mining, architecture, aerospace etc.

    Please feel free to contact us for any filtration inquiry, and our application specialists will be glad to provide our best filtration solution for you.

    FDA Approved Black Nylon Mesh StripFDA Approved Black Nylon Mesh Strip

    Why SHARE


    By vertical integration of our global supply chain and expertise, our extensive manufacturing and production facilities, our experiences of filtration team, as well as our materials management, we take end-to-end control of all the steps in the manufacturing process, including weaving, fabrication, molding. Our ability to efficiently manufacture products not only ensures repeatable product quality, but also maintains a steady supply chain, reduces production costs and shortens lead times for our customers.


    We aim to offer the most reliable and cost effective filter solutions for all filtration applications. Our specialist problem solving skills are ready to address any challenges you encounter.
    FDA Approved Black Nylon Mesh Strip FDA Approved Black Nylon Mesh Strip

    FAQ


    1. Where is your factory located? How can I visit there?

    We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

    2. Can I get free samples and how long can you deliver them?
    We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.


    3. How long does a quotation take?
    In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

    4. How quickly can I get my order finished?
    The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

    5. What about your quality control?
    By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.


    6. What's your largest advantage?
    One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

    7. What kind of payment terms do you accept?
    T/T and LC and more.
