    Nylon Monofilaments Mesh Filter Bags With Drawstring, Plastic Flange, Stainless Steel Ring Or Zinc Galvanized Steel Ring

    Ask Lasest Price
    Brand Name : SHARE FILTERS
    Model Number : SG-NB-26
    Certification : Reach Svhc, SGS RoHS, California Proposition 65
    Price : $1 for 500 pcs, $0.9 for 10,000 pcs, $0.7 for 50, 000 pcs
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 1, 0000 pcs / day
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

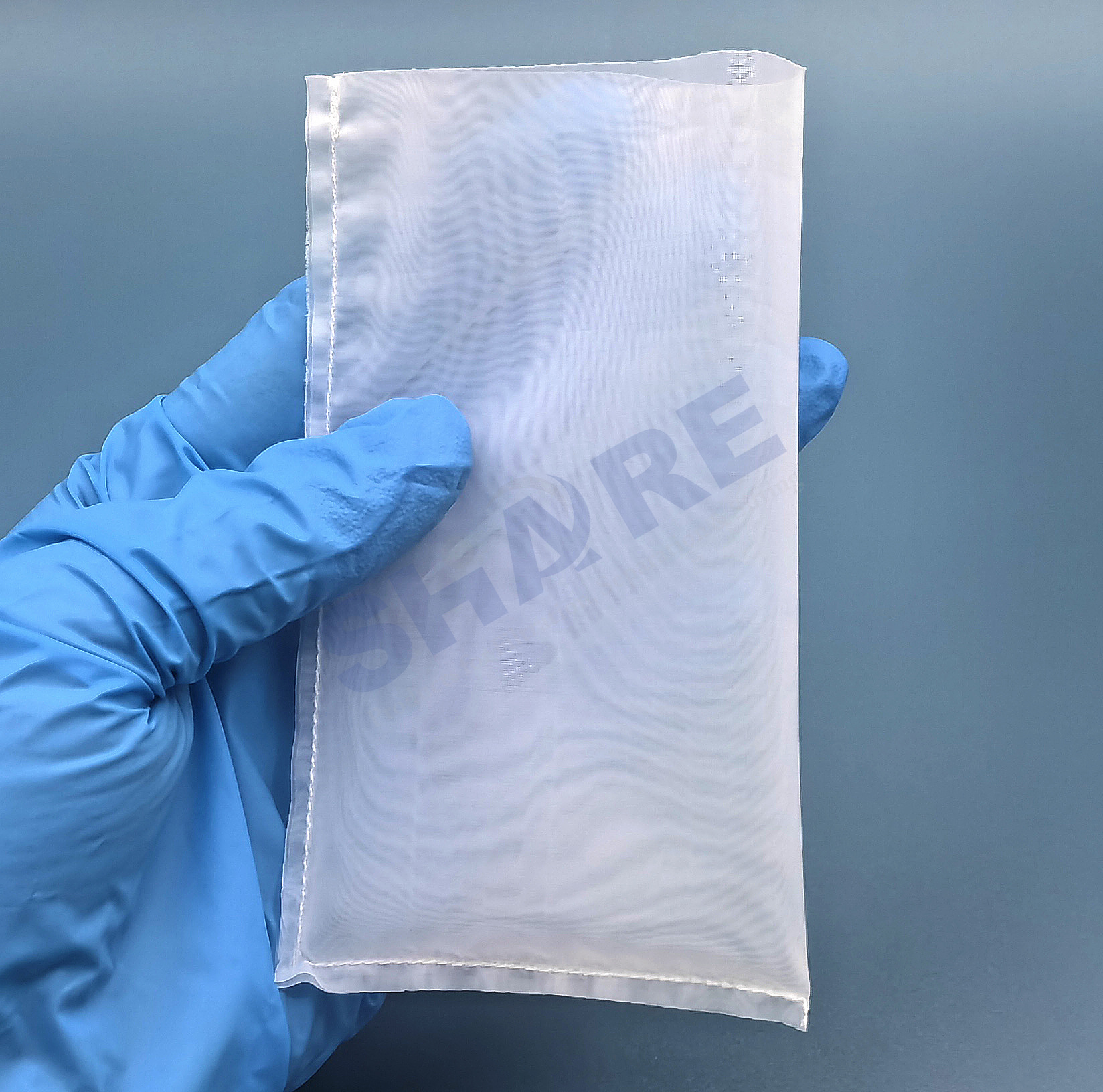

    Nylon Monofilaments Mesh Filter Bags With Drawstring, Plastic Flange, Stainless Steel Ring Or Zinc Galvanized Steel Ring

    SHARE offers a wide range of nylon(NMO) monofilament filter bags with drawstring, plastic flange, stainless steel ring or zinc steel. Micron rataings range from 3 micron to 2500 micron. Our nylon filter mesh are made of continuous nylon monofilament thread. It provides excellent strength, consistent openings and has no fiber migration.

    Our filter bags are available in many different sizes & shapes and can be customised.


    Nylon Monofilaments Mesh Filter Bags With Drawstring, Plastic Flange, Stainless Steel Ring Or Zinc Galvanized Steel RingNylon Monofilaments Mesh Filter Bags With Drawstring, Plastic Flange, Stainless Steel Ring Or Zinc Galvanized Steel Ring

    Nylon Monofilaments Mesh Filter Bags With Drawstring, Plastic Flange, Stainless Steel Ring Or Zinc Galvanized Steel Ring

    Nylon Monofilaments Mesh Bag Filter with Zinc Galvanized Steel Ring

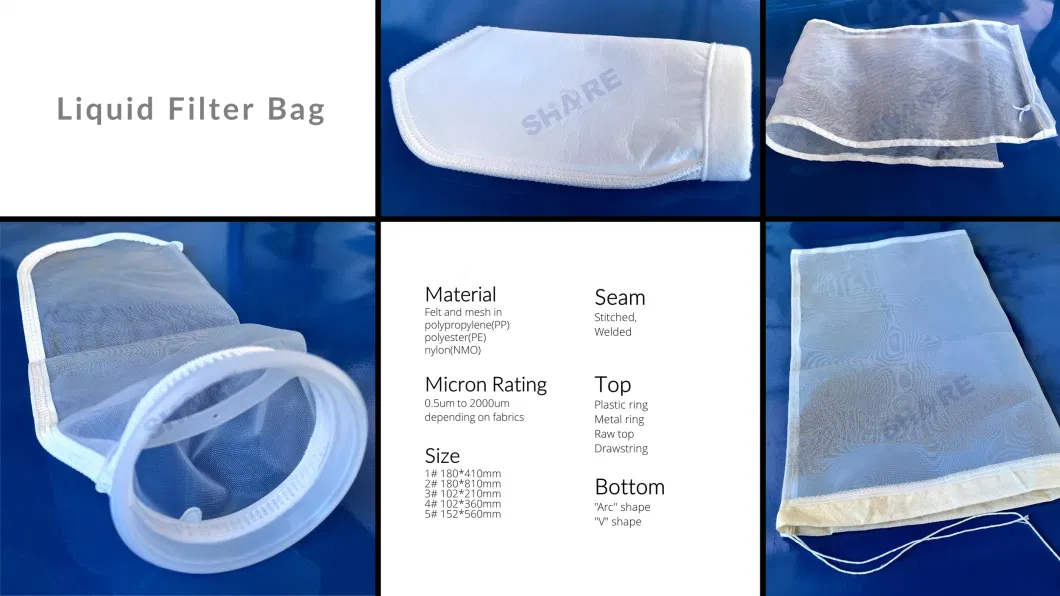

    Product NameNylon Monofilament Filter Bag
    MaterialNylon monofilament mesh
    Maximum Operating Temperature100° C
    Micron Rating3, 5, 10, 15, 25, 35, 40, 45, 50, 55, 75, 100,125, 150, 200, 250, 300, 400, 500, 600, 700, 800, 900, 1000, up to 2500um
    Standard SizeSee below
    Seam TypeStitched, welded
    Bag TopPlastic flange top, metal ring top, raw top, drawstring top
    Bag Bottom"Arc" shape bottom, "V" shape bottom, "O" shape bottom
    Applications1. Electric paint coating line filtration.
    2. Pre-discharge treatment, circuit board production cycle water filtration.
    3. Automobile production coating line, metal casting, pre-ultrafiltration protection filtration, spray water filtration and oil filtration.
    4. Solid-liquid separation in petrochemical, light industrial food, metallurgy, electronics, pharmaceutical, etc.
    5. Handling pre-cleaning, electrophoretic paint, spray rinse water, circulating water, etc. in the automotive industry.
    6. Solvent purification treatment, resin treatment and wastewater treatment in the paint industry.
    Bag sizeDiameter (inches/mm)Length (inches/mm)Surface Area (m2)Volume (l)
    17"(180mm)17"(430mm)0.2511
    27"(180mm)32"(810mm)0.520
    34"(104mm)9"(230mm)0.071.9
    44"(104mm)14"(360mm)0.123.2

    Related Products

    SHARE produces all kinds of nylon filter bags for a wide range of applications. Our liquid filter bags provide surface filtration, where particles larger than the pore size stay on the surface. Bags are made of nylon, polypropylene, or polyester monofilament to ensure a precise micron rating without fiber migration. Micron ratings range from 3 to 2500μm, and these bags are great for removing solid particles due to their high strength.

    Contact SHARE for further information.


    Nylon Monofilaments Mesh Bag Filter with Zinc Galvanized Steel Ring Nylon Monofilaments Mesh Bag Filter with Zinc Galvanized Steel Ring

    The Chemical Resistance Of Liquid Filter Bag
    Fiber MaterialPolyesterNylonPolypropylene
    Abrasion ResistanceVery GoodExcellentVery Good
    Weakly AcidVery GoodGeneralExcellent
    Strongly AcidGoodPoorExcellent
    Weakly AlkaliGoodExcellentExcellent
    Strongly AlkaliPoorExcellentExcellent
    SolventGoodGoodGeneral

    Packaging & Shipping

    Filte bags are packed into sealed PE bags. The label contains the following standard information:

    item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.


    Port to PortDoor to Door
    Express(DHL,UPS,FEDEX, EMS)1 - 5 days
    Air Freight1 - 5 days4 - 10 days
    Sea Freight(FCL)15 - 30 days20 - 35 days
    Sea Freight(LCL)15 - 30 days22 - 37 days

    Company Profile

    Nylon Monofilaments Mesh Bag Filter with Zinc Galvanized Steel Ring


    FAQ

    1. Where is your factory located? How can I visit there?

    We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

    2. Can I get free samples and how long can you deliver them?
    We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.


    3. How long does a quotation take?
    In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

    4. How quickly can I get my order finished?
    The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

    5. What about your quality control?
    By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.


    6. What's your largest advantage?
    One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

    7. What kind of payment terms do you accept?
    T/T and LC and more.
