    Black Filter Mesh Strip In Polyester, Nylon, Polypropylene And Polyethylene Materials

    Ask Lasest Price
    Brand Name : SHARE FILTERS
    Model Number : SG-MR-19
    Certification : Reach Svhc, SGS RoHS, California Proposition 65
    Price : $0.2 for 1000 PCS, $0.19 for 5,000 PCS, $0.16 for 20, 000 PCS
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 10, 0000 pcs / day
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    Black Filter Mesh Strip In Polyester, Nylon, Polypropylene And Polyethylene Materials

    SHARE Typical Filter MaterialAdvantagesSupplied Formats
    Nylon (PA6)Tough, abrasion-resistant, good vibration damping, resistant to solvents, fuels and lubricantsRoll, disc, sheet, ribbon, tube, bag, plastic molded filter
    Nylon (PA6.6)Rigid, stiff, abrasion-resistant, dimensionally stable at heat exposure
    Polyester (PET)High rigidity, high hardness, high chemical resistance, good dimensional stability
    Polypropylene (PP)Good chemical resistance, more heat resistant than PVC

    Share offers the most comprehensive selection of woven precision filter mesh in nylon, polyester and PP, at the same time we specialise in custom cut mesh by cold, heat, laser and ultrasonics technologies. Contact us now for more information and discover how our advanced processes can meet your specific needs.


    SHARE Nylon Strip Advantages

    • Clean, non fraying edges

    Woven fabrics can easily fray after cutting, but the heat generated by the hot knives, laser or ultrasonics create sealed edges due to melting.

    • Precision width, down to 5mm

    Integration of optical measuring systems ensures tight tolerances for ribbon width, further enhancing the precision of the cutting process.
    Our slitting mesh width can be down to 5mm.

    • High cutting speed

    High speed heat, laser and ultrasonics cutting machines combined with SHARE custom designed roll-off mechanism to process filter material from rolls. This results in significant faster production times. Therefore, we ensure prompt delivery for standard orders.

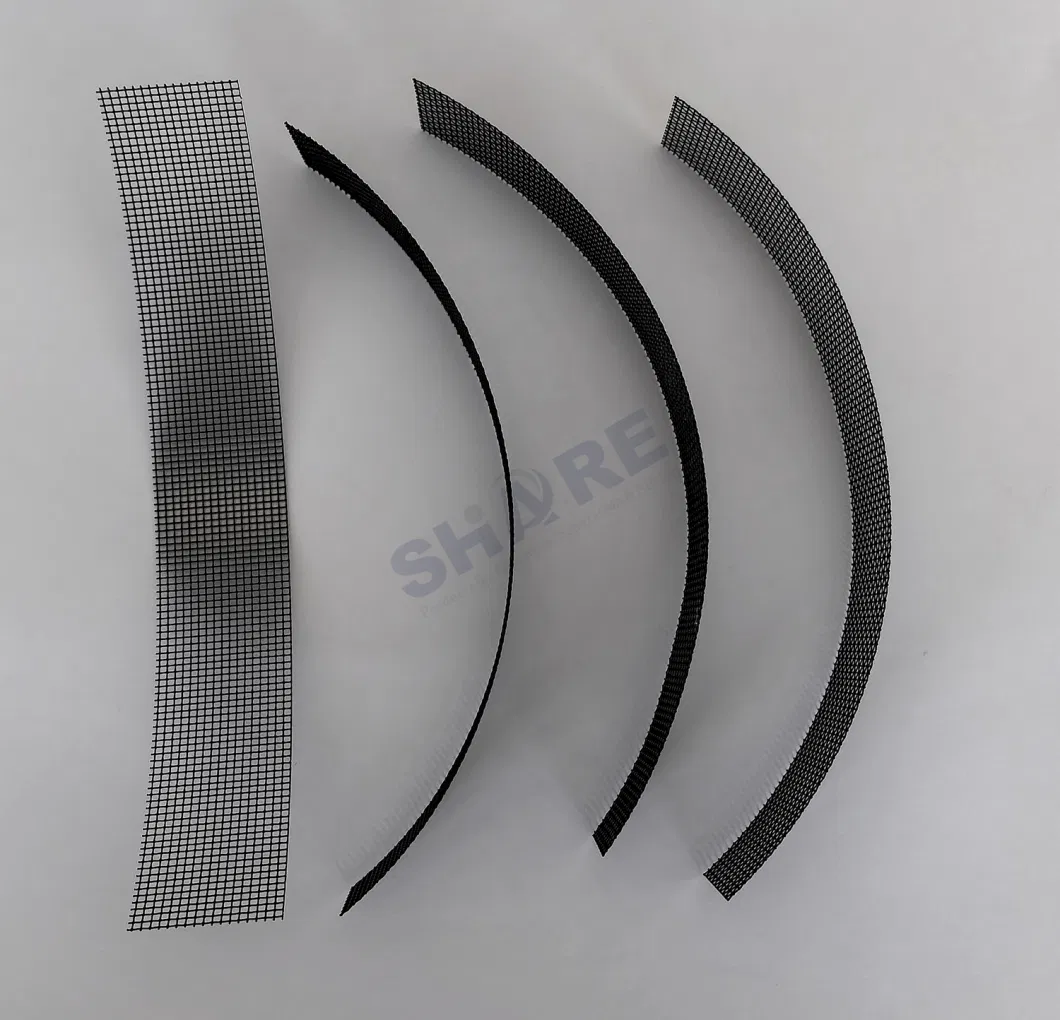

    FDA Approved Black Nylon Mesh Strip


    SHARE Filter Mesh

    • Surface properties are even and consistent
    • Thickness tolerance is within microns through entire rolls and lots
    • Cleanliness meets strict standards

    FDA Approved Black Nylon Mesh Strip


    SHARE Filter Strip


    Strip color: Black and white
    Strip & Ribbon form: Single or multilayer ribbon
    Cutting technology: Heat, laser and ultrasonics cut


    Heat cut edge

    • Welded, closed edges
    • For all fabric, except PTFE
    • Width from 5 mm to 2000 mm

    Laser cut edge

    • Heat-sealed, non-fraying edges
    • High flexibility(Almost all shapes can be cut)
    • For all fabric
    • Width from 5 mm to 2000 mm

    Ultrasonics cut edge

    • Closed edge without rim
    • Width from 1 mm to 700 mm
    • PA/PP/PET with mesh opening < 280 µm

    FDA Approved Black Nylon Mesh Strip


    Your Benefits

    • No fraying edges
    • Can be used for medical, pharmaceutical, food applications
    • Different types of coils available
    • Traceability (label)

    FDA Approved Black Nylon Mesh Strip


    Packaging

    • Ribbons and strips are packed into welding sealed PE bags
    • Double bagged

    Labeling

    The label contains the following information:

    • Manufacturer
    • Material
    • Dimensions (width in mm, length in meter)
    • Manufacturing date
    • Order number
    • Roll number

    FDA Approved Black Nylon Mesh Strip


    Applications

    Our strips and ribbons are used by our customers in various industries, including automotive and aerospace for filter systems, household and industrial settings for filtration purposes, electronic devices for specialized functions, and healthcare applications such as diagnostic test strips, perfusion, and transfusion filters.


    SHARE Converting Capabilities



    Customers have different requirements for filtration, separation and sifting, and relying only on single fabrication technology is not sufficient to meet the challenges of today's demanding filtration market.

    With 40 years of expertise and experience from precision filter mesh materials to filter components, SHARE has the capability to tailor our precision filter mesh to your exact application through our outstanding manufacturing capabilities and automated fabrication processes, including cutting, calendering, stitching, gluing, welding, slitting, sewing, pleating, molding and more.

    1. Laser Cutting
    Laser cutting produces highly precise fabric parts with a heat-sealed edge. Share uses different laser cutting systems to meet customers various requirements including semi-automated vision systems and fully automated with AI programming.


    2. Heat Slitting

    Heated knives are used to create fabric strips/ribbons for much many applications such as injection molding, and hot-cut mesh edges are melted to enhance durability. Optical measuring systems measure ribbon width with tight tolerances.


    3. Ultrasonic Slitting

    Ultrasonic slitting are often used to produce fabric strips with closed edge, minimal material build-up. Ultrasonic cutting is ideal for precise and clean edge quality, and measurements are conducted using optical systems too.


    4. Ultrasonic Stamping

    Often used for highly precise fabric parts.
    Ultrasonic stamping ensures tight geometric tolerances. The edges are non-fraying. One tool is used for punching and can be used for larger quantities. Optical measuring systems measure dimensions and tolerances.


    5. Ultrasonic Welding

    Ultrasonic welding has accurate, clean welds without introducing secondary materials.
    SHARE produces precision plastic cylindrical filters by using ultrasonic welded tubes.


    6. Pleating

    We increase the filter surface through pleating.
    Fabrics are firstly welded then pleated together, and cut to size of pleats.


    7. Sewing

    Sewing and stitching are very suitable for various of mesh filter bags.
    The thread, patch and stitch can be customized on demand.


    8. Plastic Injection Molding

    The filter material is inserted into the injection molding tool, positioned and over molded or insertmolded with plastic.
    Created from a variety of mesh types and plastic materials, SHARE manufactures high quality molded plastic filters for a variety of applications.


    We have created thousands of filtration solutions to help customers achieve the best filtration configuration and solution for various applications, including appliance, electronics, medical and healthcare, automotive, food and beverage, mining, architecture, aerospace etc.


    Please feel free to contact us for any filtration inquiry, and our application specialists will be glad to provide our best filtration solution for you.

    FDA Approved Black Nylon Mesh StripFDA Approved Black Nylon Mesh StripFDA Approved Black Nylon Mesh StripFDA Approved Black Nylon Mesh Strip

    FAQ


    1. Where is your factory located? How can I visit there?

    We are located in Taizhou city, Zhejiang province in China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

    2. Can I get free samples and how long can you deliver them?
    We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.


    3. How long does a quotation take?
    In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

    4. How quickly can I get my order finished?
    The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

    5. What about your quality control?
    By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.


    6. What's your largest advantage?
    One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

    7. What kind of payment terms do you accept?
    T/T and LC and more.
