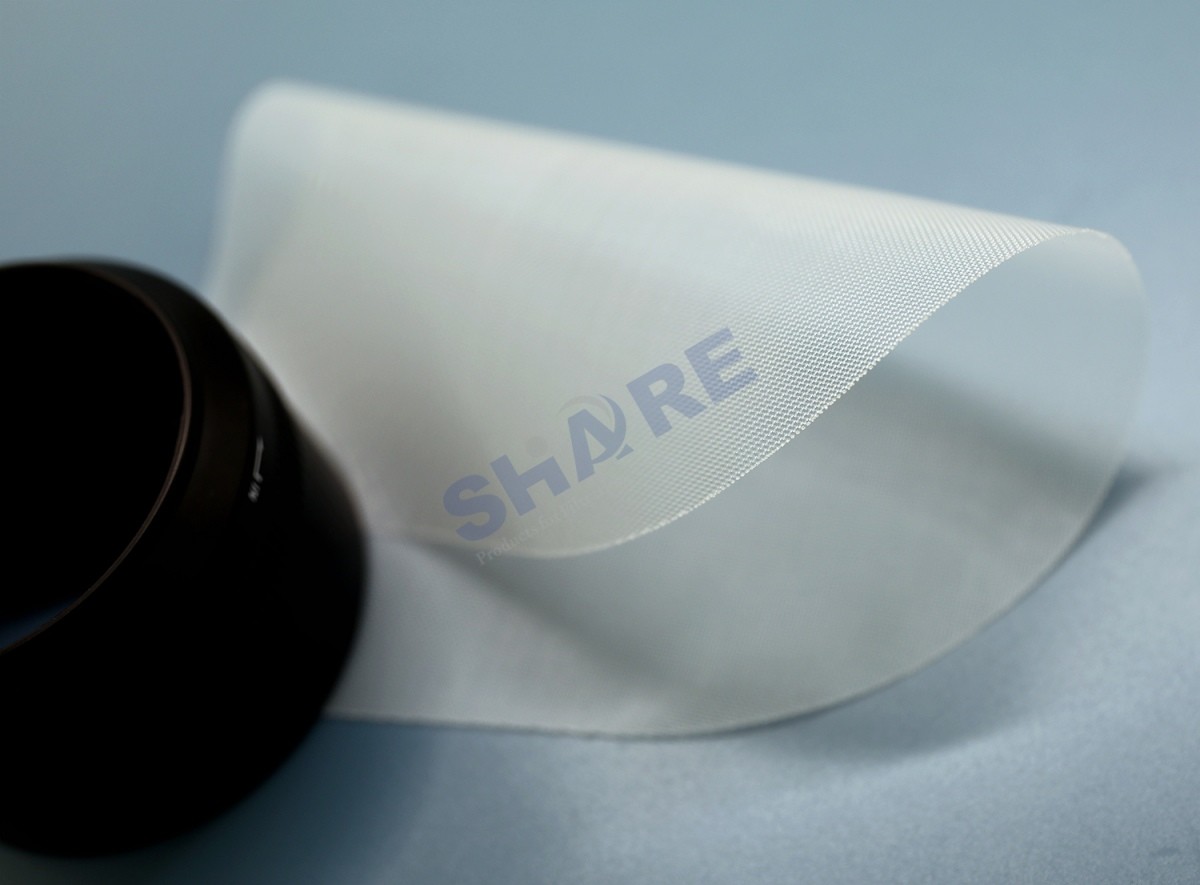

SHARE Polyester Mesh Filters

SHARE provides a broad range of polyester woven mesh filters, characterized by precise mesh openings, open area and mesh thickness.

Features

---

• Characterized by precise mesh openings, open area, and mesh thickness
• Midly hydrophobic
• Good resistance against acid, alkalis and organics
• Compatible with a broad range of solvents
• High strength and durability
• Resistant against pH 3 to 13
• Thermal stability: up to 140°C

Specifcations

---

​

Type	Mesh Opening(um)	Open Area(%)	Thickness(um)	Disc Diameter(mm)	Sheet(cm)
Polyester Mesh Woven Filters	5	2	65	25mm, 47mm, 55mm, 90mm	30cm*30cm or custom size
	10	2	55
	15	8	55
	21	15	70
	43	29	70
	60	29	87
	74	36	90
	80	39	90
	300	44	258

​

Customers have different requirements for filtration, separation and sifting, and relying only on single fabrication technology is not sufficient to meet the challenges of today's demanding filtration market. Therefore, SHARE has developed expertises and experiences in almost all processing technologies including cutting, stitching, gluing, welding, laser cutting, molding and more after decades of developments.

1. Laser Cutting

Laser cutting produces highly precise fabric parts with

a heat-sealed edge.

Share uses different laser cutting systems to meet

customers various requirements including

semi-automated vision systems

and fully automated with AI programming.

2. Heat Slitting

Heated knives are used to create fabric strips/ribbons for much many applications such as injection molding, and hot-cut mesh edges are melted to enhance durability.

Optical measuring systems measure ribbon width with tight tolerances.

3. Ultrasonic Slitting

Ultrasonic slitting are often used to produce fabric strips

with closed edge, minimal material build-up.

Ultrasonic cutting is ideal for precise and clean edge

quality, and measurements are conducted using

optical systems too.

4. Ultrasonic Stamping

Often used for highly precise fabric parts.

Ultrasonic stamping ensures tight geometric tolerances. The edges are non-fraying. One tool is used for punching and can be used for larger quantities. Optical measuring systems measure dimensions and tolerances.

5. Ultrasonic Welding

Ultrasonic welding has accurate, clean welds without

introducing secondary materials.

SHARE produces precision plastic cylindrical filters

by using ultrasonic welded tubes.

6. Pleating

We increase the filter surface through pleating. Fabrics are firstly welded then pleated together, and cut to size of pleats.

7. Sewing

Sewing and stitching are very suitable for various of mesh

filter bags.

The thread, patch and stitch can be customized

on demand.

8. Plastic Injection Molding

Share plastic filters provide h igh flow rates and low pressure drops by maximum open area.

SHARE process our mesh fabrics to various plastic molded filters for automotive, chemical, medical, home appliance and f ood industry by plastic insert molding and overmolding technologies.

Your Benefits

• Wide range of filter materials(mainly in nylon, polyester, polypropylene, stainless steel) and micron sizes available
• Supplied in the form of rolls, pieces, shapes, ribbons, tubes, bags, plastic molded filters
• Precision unifom mesh opening and clean smooth surface
• Custom cutting and molding service, tight tolerances
• Unlimited shapes, non-fraying sealed edges
• Free samples
• 2 days or less lead time

For mesh rolls:

1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen

For fabricated & molded filters:

1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available

The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.
