    Biopsy Bag 30×50mm Polyester Filter Mesh Acid Resistant 100/bg

    Ask Lasest Price
    Brand Name : Share Filters
    Model Number : Polyester Mesh Biopsy Bag 30×50mm
    Certification : SGS
    Price : USD0.06-USD0.90/pc
    Payment Terms : T/T, L/C, Western Union, MoneyGram, PayPle
    Supply Ability : 30000pcs/day
    Delivery Time : 7-20 days
    • Product Details
    • Company Profile

    Biopsy Bag 30×50mm Polyester Filter Mesh Acid Resistant 100/bg


    Biopsy Bag 30×50mm Polyester Filter Mesh Acid Resistant 100/bg


    The polyester biopsy bag are made from white polyester filter mesh, it's designed for the processing of small pathology tissue samples and cytology aspirates. The Biopsy Bag is particularly useful for collecting endometrial samples from formalin as it can be used as a sieveTissue samples are placed or filtered into the biopsy bag. The bag is then placed into a tissue cassette and processed as normal. These nylon biopsy bags prevent the loss of small tissue samples.


    Share Filters' polyester biopsy bag is made from precise polyester filter mesh, the mesh opening available from 100μm to 300μm, and other custom specified microns are available. Polyester filter mesh is known for having a mechanical and chemical resistance greater than that of polyamide (nylon), polyester filter mesh is often used in chemically aggressive environments. An easy tear design from Share Filters biopsy bag allows for the fast retrieval of the sample after processing


    Features of Share Filters' Polyester Biopsy Bag


    • Ensure unrestricted fluid movement around tissue
    • Carefully selected high quality polyester filter mesh
    • Precise and even mesh opening
    • Wide range of filtration micron rating of polyester filter mesh available
    • Seams are ultrasonically gentle sealed for easy peel-open bag
    • Reduce risk of small specimen loss
    • Reduce reagent carryover and pressure artifact often found with sponges
    • Remove specimen rapidly with convenient peel-open bag

    nylon biopsy bag


    Technical Data


    Product name:Polyester biopsy bag 30×50mmProcessing:Ultrasonic seamed
    Application:Tissue embedding proceduresMaterial option:Polyester mesh, nylon mesh
    OEM/ ODM:

    Acceptable

    Mesh opening:From 100μm to 300μm, ect
    Other dimension:30×40mm 45×60mm 45×75mm 75×95mmFlag:With or without 7mm flag
    Supply type:Welded bagPackage:100/bag, master carton

    Product Pictures

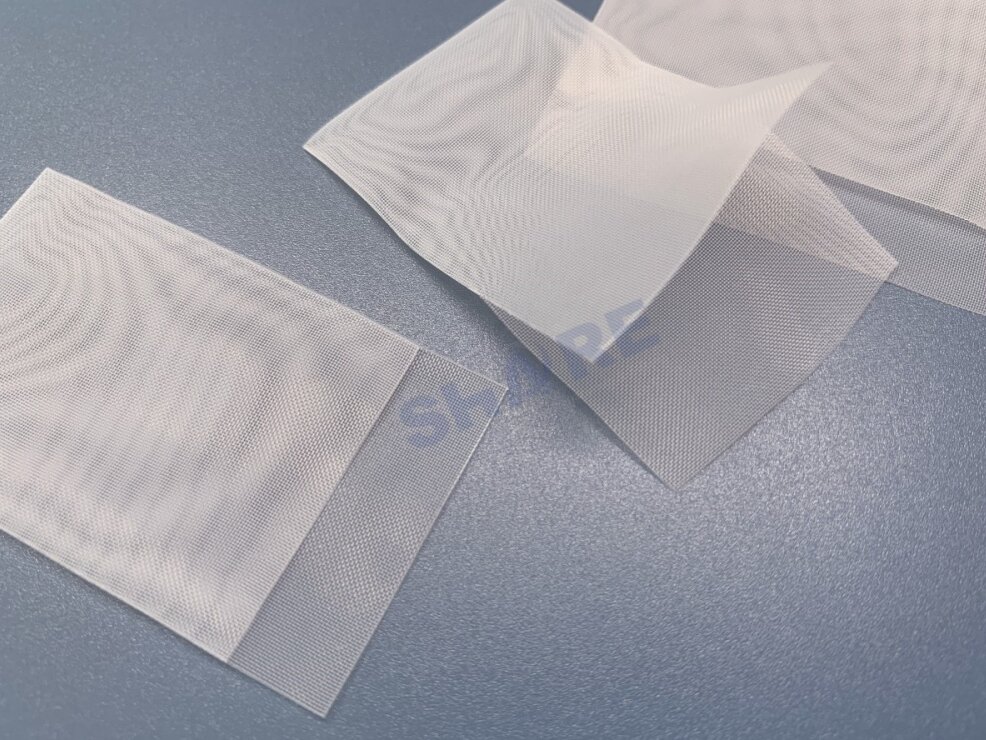

    polyester biopsy bag polyester biopsy bag


    Share Filters not only makes the biopsy bag, but also supplies the filter mesh ribbon in custom size.

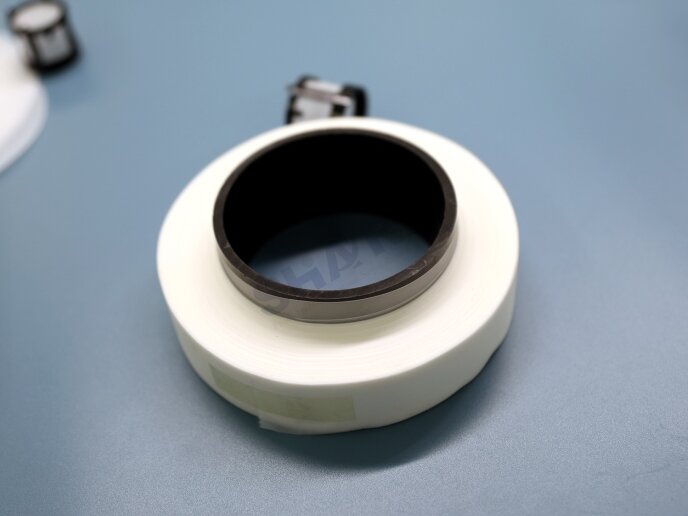

    filter mesh ribbon filter mesh ribbon


    Dimensions:

    • Small Biopsy Bags measure 30 × 40mm, 30 × 50mm
    • Medium Biopsy Bags measure 45 × 60mm, 45 × 75mm
    • Large Biopsy Bags measure 75 × 95mm

    Polyester Filter Mesh Datasheet for Biopsy bag


    Fabric
    number
    Mesh countThread
    diameter
    Mesh
    opening
    Open
    surface
    Fabric
    thickness
    Weight
    No.mesh/cmmesh/inchmicronmicron%microng/m2
    PES 340/6724S611203406722088
    PES 270/4224T6115027042280138
    PES 250/4627T6812025046230100
    PES 280/6228S71802806215046
    PES 240/4528T7112024045230103
    PES 225/4329T7412022543230107
    PES 215/4230T7612021542230111
    PES 230/5432S80802305415052
    PES 210/4532T801002104518082
    PES 215/5334S86802155315056
    PES 195/4434T861001954418087
    PES 180/4236T911001804218092
    PES 200/6139S9955200619530
    PES 190/5539T99641905511540
    PES 150/3640T10210015036190103
    PES 150/4243T110801504215571
    PES 160/5747S12055160579636
    PES 150/5047T120641505012048
    PES 140/4347HD120711404313059
    PES 140/4749S125641404712050
    PES 135/4449T125711354413062
    PES 144/5553S13545144557627
    PES 135/5153S13555135519740
    PES 125/4453T135641254412254
    PES 117/3953T135711173913267
    PES 115/4659S15055115469945
    PES 105/3859T150641053812361
    PES 100/4164S160551004110048

    This just a part of specifications which commonly used.


    Mesh count (n/cm), (n/in)

    The mesh count stands for the number of openings per inch.


    Mesh opening (μm)

    The mesh opening w is the distance between two adjacent warp or weft thread.


    Thread diameter (μm)

    The thread diameter is measured on the thread before weaving.


    Open area (%)

    The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area


    Other Medical and Biochemical Filter Components


    cell strainer cap filter cylinder bag cell trainer blood tubular filter


    Example of Application


    Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical and etc., giving us a wealth of experience in many areas.


    AutomotiveLaboratoryHealthcareApplianceBeverageAgriculture
    Transfusion filterwater strainer
    Fuel filterBiopsy bagBlood filterDryer filterCoffee filterWater strainer

    What Share Filters Do?


    Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world.

    Filter mesh in rolls, shapes, tubes, bags, Injection-moulded filters and similar products of various shapes, sizes are our primary business.

    As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure, from simple components like mesh pieces to complex devices like custom combination moulded filters.


    We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic injection moulding in good conditions. The moulding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.


    Factory Capabilities


    weaving filter mesh

    Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,


    Selecting the high-quality monofilament thread, Share Filters weaves filter mesh with Sulzer P7100 looms. The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.


    Filter Mesh Slitted in Narrow Ribbons

    Filter mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of mesh ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

    Filter mesh slitted to be ribbons

    Filter Mesh Pre Cut Pieces and Shapes

    Share Filters cutting methods include Laser cutting, Cold cutting, Heat cutting and Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.


    Filter Mesh Tubes and Tubular Ribbons


    Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat, sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre-cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

    nylon filter mesh weld tube ribbon

    mesh filter bag

    Custom Filter Mesh Bag by Welding and Sewing


    Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter medium (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shapes. If the filter fabric is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 5- 15 working days.


    Mesh Insert Injection Moulded Filters


    Our injection moulded filters products consist of a filter mesh held in a plastic support frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.


    Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.

    custom mesh insert injection moulded filter


    Photos of Factory

    Share Filter workshops
    WarpingWeavingInspection
    WhashingHeat settingUltrasonic welding

    Delivery and Transportation


    Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

    • Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
    • Large quantities is better by sea which is cost economic. Sometimes by air if urgent in need.
    • SF EXPRESS usually to Hongkong and Southeast Asia countries.
    • Samples are always sent via express commonly.


    FAQ


    Are You Factory or Trade Company ?

    We're factory, and manufacture our products in-house.


    Where Is Your factory Located? How Can I Get There?
    We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.


    Which Port You Ship?

    Ningbo port.


    Can I Get Free Samples ?
    We are pleased to provide you with free samples for testing, just the freight will be at your account.


    What's Your Payment Term ?

    T/T, LC, PayPal, and others.


    What's the Lead Time of the Order?
    The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.


    What About Your Quality Control?
    By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.


    Why Choose You ?
    One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.


    How To Delivery the Order?

    Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
