    45 Micron Nylon Mesh Disc Filters Precise Even Openings Cut Shapes Sheets

    Ask Lasest Price
    Brand Name : Share Filters
    Model Number : Nylon Mesh Disc Filters 45 Micron
    Certification : SGS
    Price : USD0.03-USD1.50/pc
    Payment Terms : T/T, L/C, D/P, Western Union, PayPay
    Supply Ability : 50000pcs/day
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    45 Micron Nylon Mesh Disc Filters Precise Even Openings Cut Shapes Sheets


    Nylon Mesh Disc Filters 45 Micron Precise Even Openings Cut Shapes Sheets


    Share Filters specializes in manufactuer filter mesh including nylon mesh, polyester mesh, popypropylene mesh and stainless steel mesh. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or configuration – from simple, traditional components like filter mesh discs and filter bags to highly complex elements like custom plastic filters.

    Share Filters' filter mesh discs can be tailored to virtually any shape or dimension. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cut parts can be also produced in multiple layers. The high-precision laser cut parts are characterized by closed edge quality without fray. Another method ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality.


    Benifits From Share Filters' Nylon Mesh Cutted Shapes:

    • Cut or punch in any sizes and shapes based on customers' design, drawing, or samples.
    • Various kinds of filter medias and specifications available, such as polyester filter mesh, nylon filter mesh, polypropylene filter mesh, metallic-fiber filter mesh as well as needle punched filter felts.
    • Slitting, laser cutting and ultrasonic cutting by custom-made tools ensures the mesh edges from fraying.

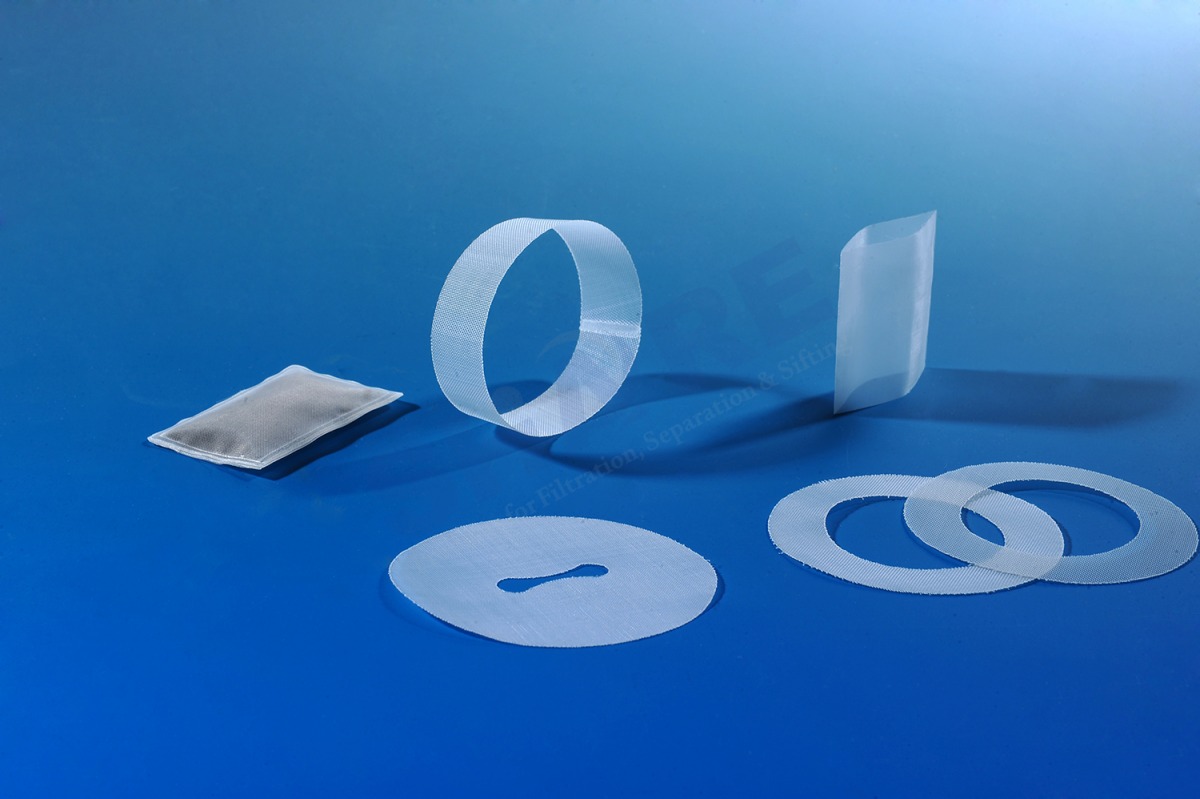

    nylon filter mesh disc

    filter mesh shapes

    Share Filters Specification Options for Cutting Discs and Shapes


    Material OptionNylon mesh, polyester mesh, PP mesh, stainless steel mesh
    Mesh OpeningFrom 3 micron to 3233 micron
    Thread DiameterFrom 30 micron to 1000 micron
    Open AreaFrom 3% to 60%
    Weave TypePlain Weave
    Primary TreatmentDyeing, Calendaring, Sputtering, etc
    DimensionCan be tailored to virtually any shape or dimension
    ColourWhite, or customize

    Share Filters' nylon filter mesh shapes can be tailored to virtually any shape or dimension.

    • Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The high-precision laser cut parts are characterized by closed edge quality. Laser cut parts can be also produced in multiple layers.
    • Ultrasonic stamping is available for fabrics having mesh openings < 400 µm. It ensures tight tolerances and provides high-quality sealed edges which do not fray.
    • Cold cutting combines a roller cutter with the traditional scissors for cutting fabrics that can’t be cut with other methods.

    The edges by laser cutting, ultrasonic cutting and colding cutting.

    filter mesh laser cutfilter mesh ultrasonic cutwoven filter mesh cold cut
    Laser cuttingUltrasonic cuttingCold cutting

    Nylon Filter Mesh Discs Specifications For Lab Solvents

    Fabric NumberMesh CountThread DiameterMesh OpeningOpen AreaMesh ThicknessWeight
     n/cmn/inchμmμm%μmg/m2
    PA 213/4130761202134122594
    PA 213/4632801002134616569
    PA 178/4136901001784117878
    PA 150/36401001001503619087
    PA 152/4343110801524213560
    PA 130/3848120801303814562
    PA 120/445614060120448544
    PA 110/425915060110419846
    PA 100/3764160601003810550
    PA 90/41721805090418239
    PA 75/36802005075369043
    PA 60/361002504260346535
    PA 42/251203054242247542
    PA 44/271203053844297235
    PA 42/251203053842256735
    PA 45/291203053545336028
    PA 55/421203053055405220
    PA 40/261303303840257436
    PA 42/301303303542296230
    PA 47/371303303047375522
    PA 32/201403553832216836
    PA 37/261403553537266533
    PA 38/281403553038335325
    PA 31/211503803831186840
    PA 35/271503803035295726
    PA 34/261503803034265026
    PA 30/251654203030255928
    PA 30/191453683830196440
    PA 25/211804603025216031
    PA 25/151654203825157542
    PA 20/162005083020166534
    PA 10/4.320853038104.37753

    This just a part of specifications which common used.


    Factory Capabilities


    Share Filters sepcialize in manufacturing and supplying woven filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to filter mesh ribbons, filter mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.


    Filter Mesh Weaving

    The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.


    woven filter mesh
    filter mesh rolls

    Filter Mesh Slitted in Narrow Ribbons

    Our filter mesh ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge.


    nylon mesh slitting
    slitted filter mesh ribbon

    Laser Cutting Filter Mesh Shapes

    Share Filters cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Punching. Professional cutting using custom made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.


    filter mesh laser cutting
    nylon filter mesh shapes

    Ultrasonic Cutting and Welding

    Ultrasonic cutting and welding are accurate, clean. The tubes are equipped with one or two functional seams, which provide the necessary seam strength.


    welding mesh filter elements

    Custom Sewn Mesh Filter Bag
    Share Filters sewn products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.
    sewing filter mesh bag

    Mesh Insert Plastic Injection Molded Filters

    Our injection moulded filters products consist of a filter mesh held in a polymer plastic frame, allowing for a more robust part/product giving more reliability and longevity in its use.


    injection mould
    share filters's plastic moulded filters

    About Us
    Share Filters has over 20 years of experience developing and manufacturing woven filter mesh and custom product solutions for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.


    Application of Share Filters Products


    AUTOMOTIVE FILTERbiopsy bagappliance filtercoffee maker filterdrip irrigation spray filter
    Fuel filterBiopsy bagAir purifier filterCoffee filterDrip irrigation filter
    AutomotiveHealthcareApplianceFood & BeverageAgriculture

    Contact Us

    Share Filters provides some information for possible applications for mesh filters, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the best products for your specific projects.
