    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

    Ask Lasest Price
    Brand Name : Share Filters
    Model Number : 40 Micron Nylon Mesh Screen Cutted Disc Shapes
    Certification : SGS
    Price : USD0.02-USD1.50/pc
    Payment Terms : T/T, L/C, D/P, Western Union, PayPay
    Supply Ability : 50000pcs/day
    Delivery Time : 1-7 days
    • Product Details
    • Company Profile

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

    Share Filters' precision filter mesh is made from an extruded synthetic yarn. This monofilament fiber can be made from a variety of materials such as polyamide (nylon), polyester, polypropylene, polyethylene, etc. Each of these materials has unique properties and costs, directly related to their performance. It is important to define the conditions in which the filter mesh will be used and its expected performance to best meet the environmental and economic demands of your specific industrial filtration application.

    Thanks to the adavanced process equipments and more than 20 years of experience, Share Filters has the facility to process these filter meshes into all kinds of filter components, like mesh discs, shapes, tubes, ribbons, sleeves, bags and moulded filters. The filter mesh discs can be cut in any diametter, and the mesh shapes can be tailored to virtually any shape or dimension. Laser cutting and US punching allows for elaborate shapes to be cut that are specific to the customer’s design needs and is characterized by closed edge quality.

    Mesh Cutted Piece Edge Forms

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic 25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic 25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic
    Laser cutting Ultrasonic cutting Cold cutting

    Share Filters Filter Mesh Options for Cutting Pieces, Discs

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

    Material Options Nylon mesh, polyester mesh, PP mesh, stainless steel mesh
    Mesh Opening From 3 micron to 3233 micron
    Thread Diameter From 30 micron to 1000 micron
    Open Area From 16% to 61%
    Mesh Weave Type Plain Weave
    After Treatment Washing, Dye, Calendaring, Water-repellent, etc
    Dimension Cut in custom design in tight tolerance
    Colour White, or customize

    Products Pictures

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

    The Benefits from Pre-Cut Nylon Filter Mesh Pieces:

    • Specific to the customer’s design needs
    • Closed non-fraying edges(depends on the technology)
    • Convenient for insert injection moulding
    • High precision opening, uniform thread diameter
    • Available in singe layer or double layers, disc, polygon, irregular and other special shapes
    • material compliance with food grade

    Nylon Filter Mesh Cutted Pieces for Injection Moulded

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic 25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic 25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic
    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic 25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic 25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic
    Nylon Filter Mesh Specification

    Fabric
    number

    Mesh count

    Thread
    diameter

    Mesh
    opening

    Open
    area

    Fabric
    thickness

    Weight

    No.

    mesh/cm

    mesh/inch

    micron

    micron

    %

    micron

    g/m2

    JPP2

    2.3

    6

    1000

    3233

    58.3

    1900

    412

    JPP3

    3.1

    8

    900

    2300

    51.3

    1700

    450

    JPP4

    4

    10

    550

    1950

    61

    950

    262

    JPP5

    5

    12

    500

    1500

    56

    850

    271

    JPP6

    6

    16

    400

    1267

    58

    780

    208

    JPP7

    7

    18

    350

    1079

    57

    675

    186

    JPP8

    8

    20

    350

    900

    52

    685

    212

    JPP9

    9

    24

    250

    860

    60

    455

    145

    JPP10

    10

    25

    300

    700

    49

    576

    195

    JPP12

    12

    30

    250

    583

    49

    470

    162

    JPP12

    12

    30

    300

    533

    41

    585

    234

    JPP14

    14

    35

    300

    414

    34

    595

    273

    JPP16

    16

    40

    200

    425

    46

    370

    139

    JPP16

    16

    40

    250

    375

    36

    485

    217

    JPP20

    20

    50

    150

    350

    49

    375

    98

    JPP20

    20

    50

    200

    300

    36

    385

    173

    JPP24

    24

    60

    150

    267

    41

    285

    117

    JPP28

    28

    70

    120

    237

    44

    215

    87

    JPP30

    30

    76

    120

    213

    41

    225

    94

    JPP32

    32

    80

    100

    213

    46

    165

    69

    JPP36

    36

    90

    100

    178

    41

    178

    78

    JPP40

    40

    100

    100

    150

    36

    190

    87

    JPP43

    43

    110

    80

    152

    43

    135

    60

    JPP48

    48

    120

    80

    130

    38

    145

    62

    JPP56

    56

    140

    60

    120

    44

    85

    44

    JPP59

    59

    150

    60

    110

    42

    98

    46

    JPP64

    64

    160

    60

    100

    37

    105

    50

    JPP72

    72

    180

    50

    90

    41

    82

    39

    JPP80

    80

    200

    50

    75

    36

    90

    43

    JPP100

    100

    250

    42

    60

    36

    65

    35

    JPP120

    120

    305

    30

    55

    42

    52

    20

    JPP120

    120

    305

    35

    45

    29

    60

    28

    JPP120

    120

    305

    38

    42

    25

    67

    35

    JPP120

    120

    305

    42

    42

    25

    75

    42

    JPP130

    130

    330

    30

    47

    37

    55

    22

    JPP130

    130

    330

    35

    42

    30

    62

    30

    JPP130

    130

    330

    38

    40

    26

    74

    36

    JPP140

    140

    355

    30

    38

    28

    53

    25

    JPP140

    140

    355

    35

    37

    26

    65

    33

    JPP140

    140

    355

    38

    32

    20

    68

    36

    JPP145

    145

    368

    38

    30

    19

    64

    40

    JPP150

    150

    380

    30

    34

    26

    50

    26

    JPP150

    150

    380

    38

    31

    21

    68

    40

    JPP165

    165

    420

    30

    30

    25

    59

    28

    JPP165

    165

    420

    38

    25

    15

    75

    42

    JPP180

    180

    460

    30

    25

    21

    60

    31

    JPP200

    200

    508

    30

    20

    16

    65

    34

    This just a part of specifications which common used.

    What We do

    Share Filters is engaged in manufacturing and processing of woven precision meshes for screen and filter technology. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple, traditional components like filter mesh pieces and bags to highly complex devices like custom plastic filters. Our customers typically work in the fields of automotive spares, food technology, motor equipment, water treatment, acoustics, medical device. We also supply institutes, laboratory facilities or private end customers.

    Applications of Share Filters Products

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic 25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic 25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic 25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic 25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic
    Fuel filter Tranfusion filter Air purifier filter Coffee filter Drip irrigation filter
    Automotive Healthcare Appliance Food & Beverage Agriculture

    Factory Capabilities

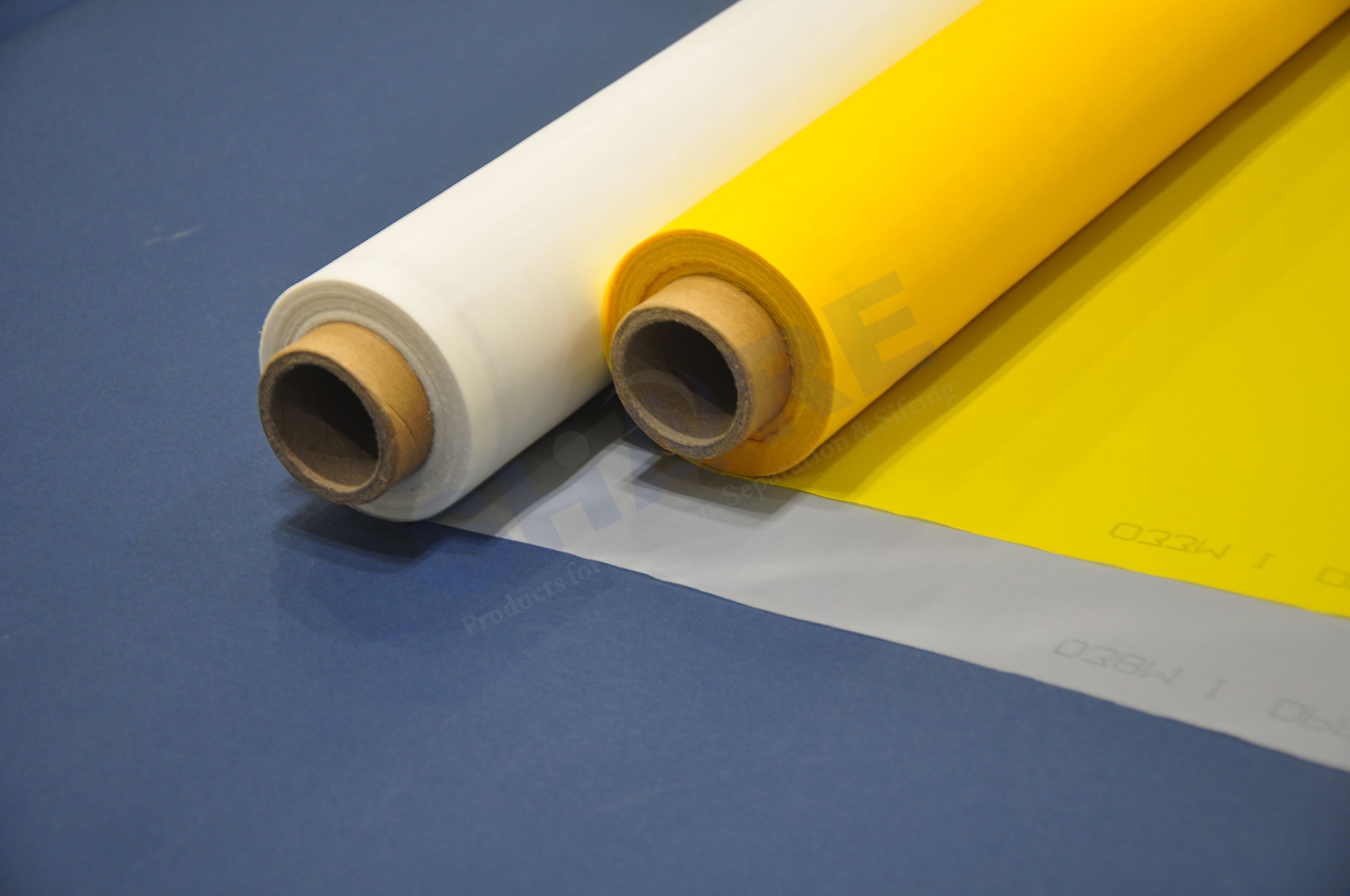

    Filter Mesh Weaving

    The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic
    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

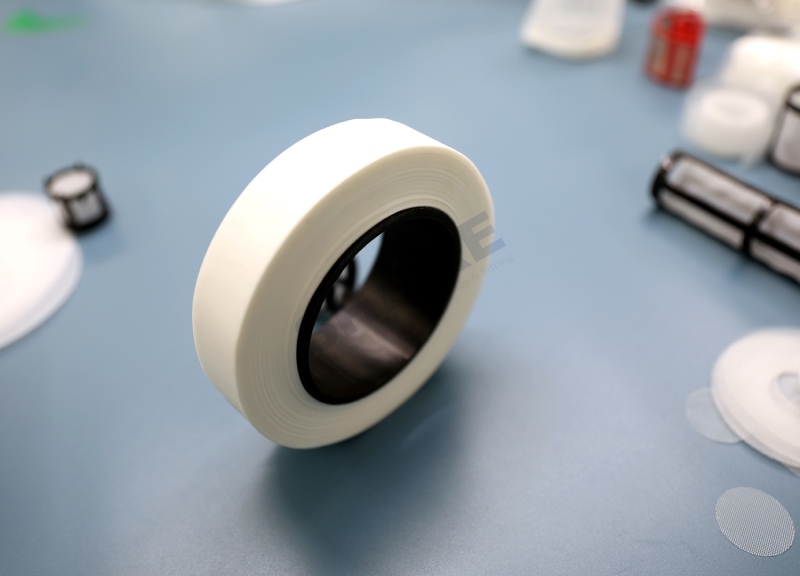

    Filter Mesh Slitted in Narrow Ribbons

    Our filter mesh ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge.

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic
    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

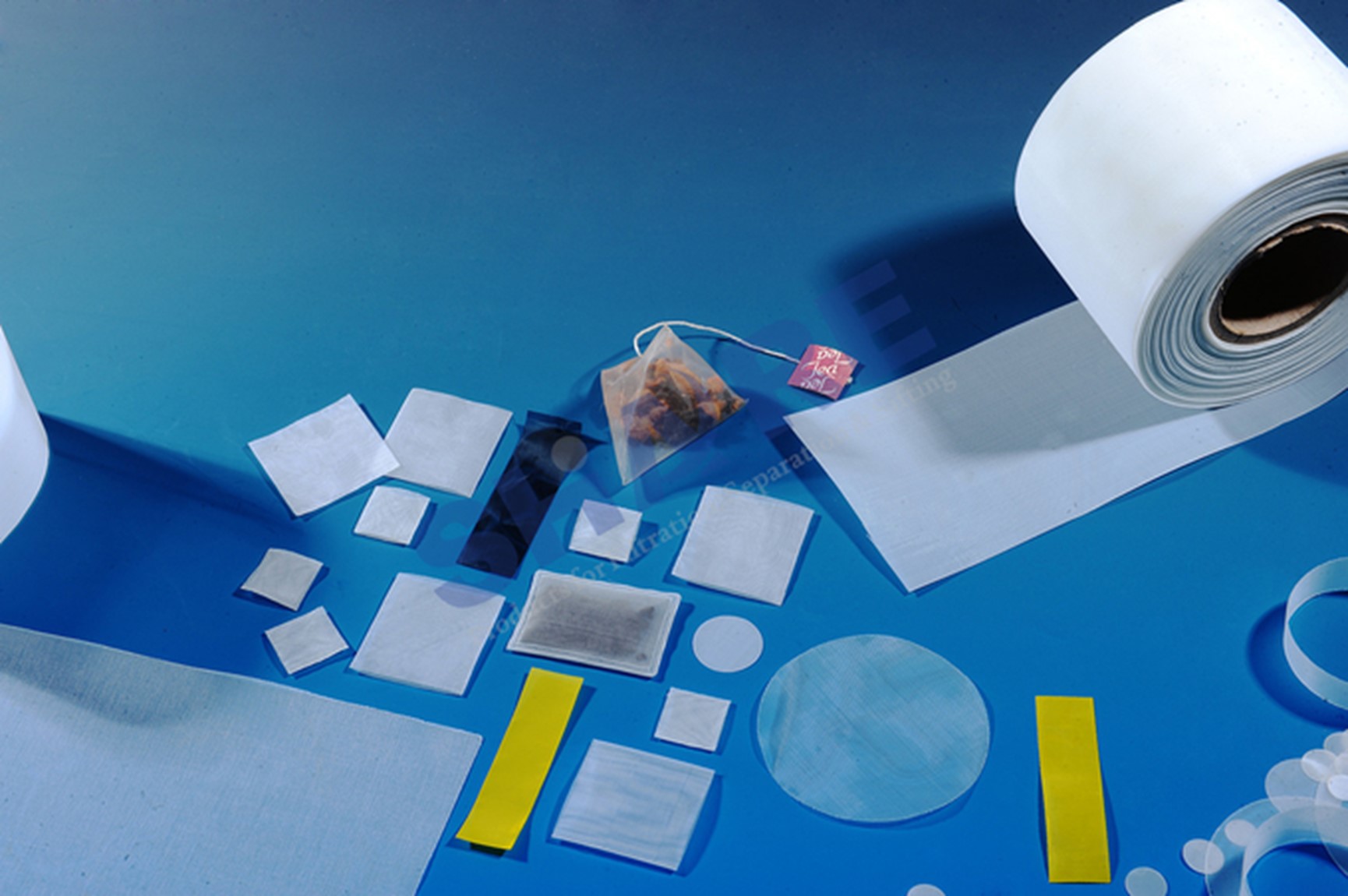

    Laser Cutting Filter Mesh Shapes

    Share Filters cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Punching. Professional cutting using custom made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic
    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

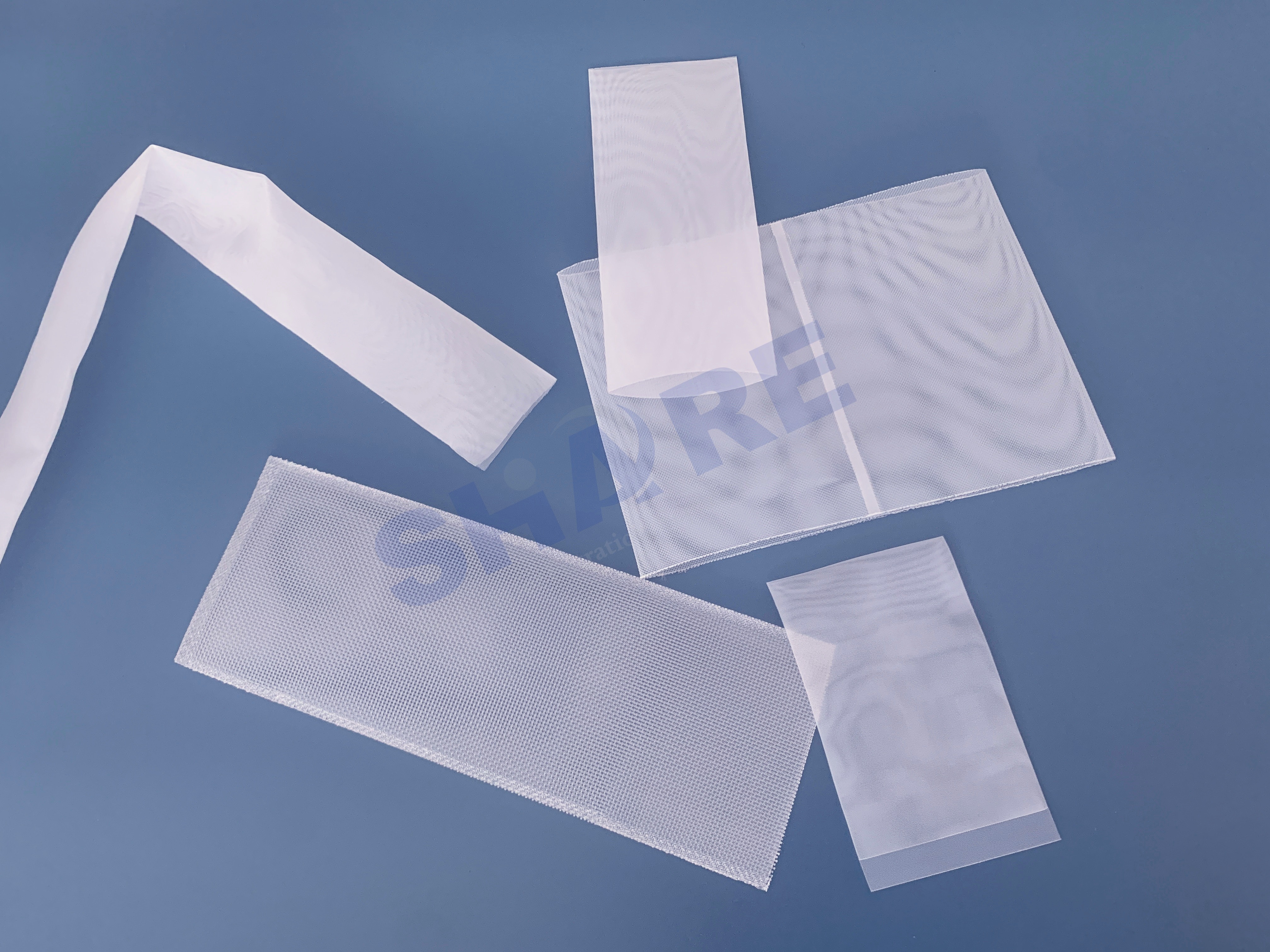

    Ultrasonic Cutting and Welding

    Ultrasonic cutting and welding are accurate, clean. The tubes are equipped with one or two functional seams, which provide the necessary seam strength.

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic
    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

    Custom Sewn Mesh Filter Bag
    Share Filters sewn products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.
    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

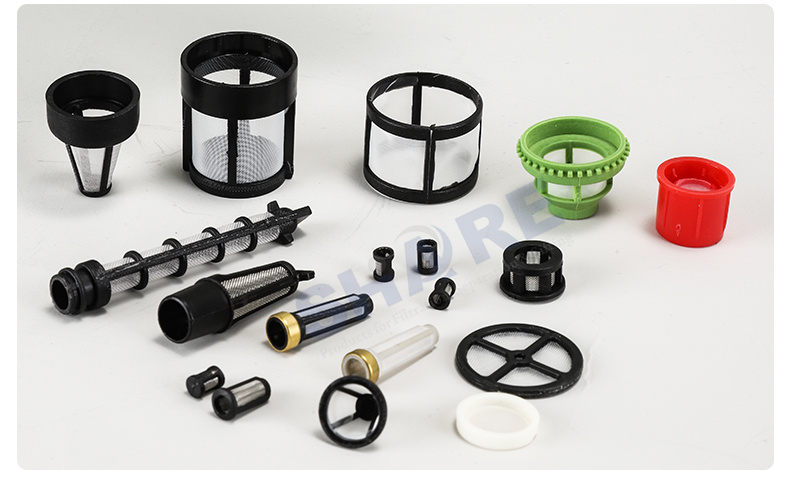

    Mesh Insert Plastic Injection Molded Filters

    Our injection moulded filters products consist of a filter mesh held in a polymer plastic frame, allowing for a more robust part/product giving more reliability and longevity in its use.

    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic
    25 Micron Nylon Filter Mesh Cutted In Pieces Discs By Laser Ultrasonic

    Contact Us

    Share Filters provides some information for possible applications for mesh filters, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the best products for your specific projects.

    Please connect with us so we can learn more about your application and design specifications!
