25 Micron Polyester Filter Mesh Disc For Lab Cleanliness Analysis

Ask Lasest Price
Brand Name :	Share Filters
Model Number :	25μm Polyester Filter Mesh Disc
Certification :	RoHS
Price :	USD0.04-USD0.90/pc
Payment Terms :	T/T, L/C, D/P, Western Union, PayPal
Supply Ability :	20000pcs/day
Delivery Time :	3-9 days

Add to Cart

Product Details
Company Profile

25 Micron Polyester Filter Mesh Disc For Lab Cleanliness Analysis

25 Micron Polyester Filter Mesh Disc for Lab Cleanliness Analysis

Polyester filter mesh is known for having a mechanical and chemical resistance greater than that of polyamide (nylon). It is often used in chemically aggressive environments. Share Filters not only offers a wide range of specifications of polyester filter mesh in rolls, but also can process the filter mesh into all kinds of filter components, including mesh ribbons, discs, shapes, tubes, bags, moulded filters. Thanks to the advanced process equipments, Share Filters' filter mesh discs and shapes can be tailored to any shape or dimension.

In the cleanliness chekcing and analysis, filter cleanliness is of importance and should be specified. the mesh filters are preferred against foamed filters due to the quicker filtration processes. Polyester (PET) filter mesh and nylon (Polyamide) filter mesh are suitable for all rinsing liquids used because of their chemical stability. Because of moisture-absorbing and thermal asistance advantages, polyester mesh filters are mostly used in cleanliness analysis applications. Share Filters precision polyester filter mesh is compatible with a broad range of solvents, with mesh openings ranging from 5 to 4400 µm.

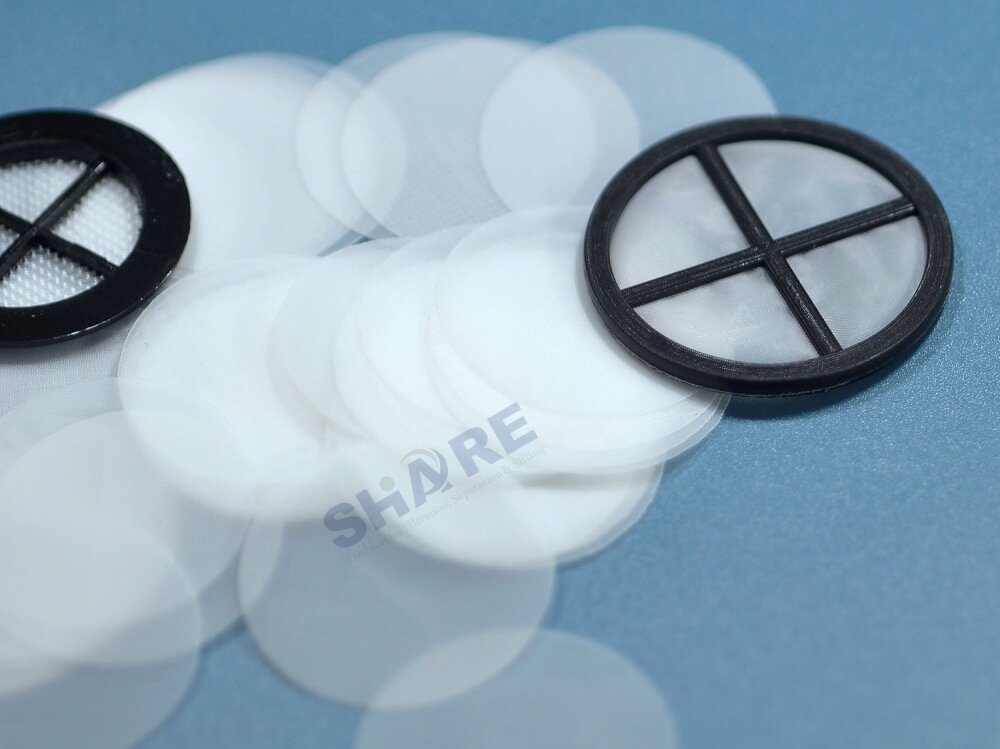

Polyester Mesh Filter Discs by Laser Cut

Due to cleanliness requirements, Share Filters offers most filter mesh discs by laser cut. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh shapes can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. Another cutting method, ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality. These mesh discs and shapes are convenient for directly usage or custom injection moulding.

25 Micron Polyester Filter Mesh Disc For Lab Cleanliness Analysis

Laser cut

Technical Data

Product name:	25μm polyester filter mesh disc	Diameter:	5 13 25 47 50 60 90 100 110 150 200mm, other custom sise.
Material:	Monofilament woven polyester filter mesh	Pore size:	25μm
Fabricated method:	Laser cut, punching	Open Area:	16%
Application:	Cleanliness analysis, other laboratory filtration	Thickness:	66μm
HS code:	5911200090	Package:	50pcs/bag 100pcs/bag 150 pcs/bag 200pcs/bag

Product Details

25 Micron Polyester Filter Mesh Disc For Lab Cleanliness Analysis

The Feature of Polyester Mesh Disc

Compatible with a broad range of solvents
Hydrophobic
Excellent dimensional stability
Thermal resistance
Autoclavable

The Benefits of Pre Cut Mesh Discs

Specific to the customer’s design needs
Special-made cut tool make size in tight tolerance
Non-fraying edges(depends on the technology)
Convenient for directly uasage or insert moulding
High productivity

Chemistry and Mechanical Properties

Mesh filters are preferred against foamed filters due to quicker filtration processes. Because of their chemical stability, polyester mesh filters and Nylon (Polyamide) are suitable for all rinsing liquids used.

Filter material		Medium (test or final rinsing liquid)
Filter material		Aqueous neutral cleaner	Aliphatic hydrocarbons (cold cleaners)	Isopropanol	Ethanol (spirit)	Ketones
Filter mesh	Polyester	+	+	+	+	+
Filter mesh	Polyamide/Nylon	+	+	+	+	+
+ suitable, - unsuitable

Polyester mesh filters are mostly used in cleanliness analysis applications, due to its moisture-absorbing and thermal asistance advantages.

Filter Mesh	Melting Temperature	Moisture Regain (20 deg C, 65%rel.Hum.)	Recommended drying temperature
Polyester PET	approx. 250 deg C	0.2%	90 deg C
Polyamide 6 (Nylon)	approx. 210 deg C	4.5%	70 deg C

Ployester Filter Mesh Specifications for Cleanliness Analysis

Fabric number	Mesh count		Thread diameter	Mesh opening	Open surface	Fabric thickness	Weight
Fabric number	Mesh count		Thread diameter	Mesh opening	Open surface	Fabric thickness	Weight
No.	mesh/cm	mesh/inch	micron	micron	%	micron	g/m²
PES 215/53	34S	86	80	215	53	150	56
PES 195/44	34T	86	100	195	44	180	87
PES 180/42	36T	91	100	180	42	180	92
PES 200/61	39S	99	55	200	61	95	30
PES 190/55	39T	99	64	190	55	115	40
PES 150/36	40T	102	100	150	36	190	103
PES 150/42	43T	110	80	150	42	155	71
PES 160/57	47S	120	55	160	57	96	36
PES 150/50	47T	120	64	150	50	120	48
PES 140/43	47HD	120	71	140	43	130	59
PES 140/47	49S	125	64	140	47	120	50
PES 135/44	49T	125	71	135	44	130	62
PES 144/55	53S	135	45	144	55	76	27
PES 135/51	53S	135	55	135	51	97	40
PES 125/44	53T	135	64	125	44	122	54
PES 117/39	53T	135	71	117	39	132	67
PES 115/46	59S	150	55	115	46	99	45
PES 105/38	59T	150	64	105	38	123	61
PES 100/41	64S	160	55	100	41	100	48
PES 90/33	64T	160	64	90	33	125	66
PES 95/47	72S	180	45	95	47	78	37
PES 85/38	72T	180	55	85	38	102	55
PES 75/33	77T	195	55	75	33	105	58
PES 80/41	80S	200	45	80	41	80	41
PES 85/44	80T	200	48	85	44	86	44
PES 70/40	90M	230	39	70	40	68	34
PES 68/34	90T	230	45	68	34	80	46
PES 65/33	90T	230	48	65	33	82	49
PES 60/36	100T	250	39	60	36	69	38
PES 56/38	110T	280	34	56	38	62	34
PES 52/33	110HD	280	39	52	33	70	42
PES 52/40	120S	300	31	52	40	48	32
PES 48/33	120T	300	34	48	33	63	37
PES 44/28	120HD	300	39	44	28	72	46
PES 47/37	130S	330	31	47	37	50	35
PES 42/30	130T	330	34	42	30	58	40
PES 43/34	140S	350	31	43	34	50	37
PES 36/25	140T	355	34	36	25	62	43
PES 37/30	150S	380	31	37	30	50	40
PES 32/24	150	381	34	32	24	56	43
PES 33/31	165S	420	27	33	31	40	26
PES 32/23	165T	420	31	32	23	50	36
PES 25/16	165	419	34	25	16	66	49
PES 24/18	180	457	27	24	18	43	33
PES 23/17	180	457	31	23	17	56	40
PES 18/18	235x245	597x622	24	18	18	44	32
PES 18/13	200	508	31	18	13	60	48
PES 23/25	200T	500	27	23	25	45	32
PES 15/10	200x215	508x546	31	15	10	59	50

This just a part of specifications which common used.

Share Filters Fabricated Filter Mesh Parts and Moulded Filters

25 Micron Polyester Filter Mesh Disc For Lab Cleanliness Analysis

What Share Filters Do?

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.

We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

Factory Capabilities

25 Micron Polyester Filter Mesh Disc For Lab Cleanliness Analysis

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene

Selecting the high-quality monofilament thread with high tenacity, high tension characteristics, Share weaves filter mesh with Sulzer P7100 looms. The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.

Filter Mesh Slitted in Narrow Ribbons

Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

Filter Mesh Pre Cut Pieces and Shapes

Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.

Filter Mesh Tubes and Tubular Ribbon

Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

Custom Filter Mesh Bag by Welding and Sewing

Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.

Standard Filter Bags

Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

Filter media: filter mesh, felt

Mesh Insert Injection Moulded Filters

Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.

Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.

Application of Share Filters Products

Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.

Fuel filter

Biopsy bag

Air purifier filter

Coffee filter

Irrigation filter

Mesh disc filter

Automotive

Laboratory

Appliance

Food & Beverage

Agriculture

Power tool

Contact Us

Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.

Please connect with us now so we can learn more about your application and design specifications!

Photos of Factory


Warping	Weaving	Inspection

Whashing	Heat setting	Injection moulding

FAQ

Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.

Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.

Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.

When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.

What's Your Payment Term ?

T/T and LC and more.

What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.

What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.

Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.

How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
