    Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability

    Ask Lasest Price
    Brand Name : Share Filters
    Model Number : Nylon Mesh 10 μm Disc filter For Cleanliness Analysis
    Certification : RoHS
    Price : USD0.03-USD0.90/pc
    Payment Terms : T/T, L/C, D/P, Western Union, PayPal
    Supply Ability : 50000pcs/day
    Delivery Time : 3-9 days
    • Product Details
    • Company Profile

    Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability

    Chemical Stability 10μm Nylon Filter Mesh Disc Filter for Cleanliness Analysis

    In the laboratory cleanliness analysis filtration, because of quicker filtration processes, mesh filters are preferred against foamed filters. Because of their chemical stability, Nylon (Polyamide) filter mesh and polyester filter mesh are suitable for all rinsing liquids used. Share Filter nylon mesh filters are compatible with a broad range of solvents, with mesh openings ranging from 3 to 3233 µm.

    Nylon filter mesh is the most popular and economical synthetic filtration mesh. Share Filters not only offers a wide range of nylon filter mesh in rolls, we also process the filter mesh into all kinds of filter components. Thanks to the advanced process equipments, Share Filters' filter mesh discs and shapes can be tailored to any shape or dimension.

    Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh shapes can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. Another cutting method, ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality. These mesh discs and shapes are convenient for directly usage or custom injection moulding.

    Technical Data

    Product name: Nylon mesh disc filter 10μm Diameter: 13 25 47 50 60 90 100 110 150 200mm, etc.
    Material: Monofilament woven nylon filter mesh Pore size: 10μm
    Fabricated method: Laser cut, punching Open Area: 4.3%
    Application: Cleanliness analysis, other laboratory filtration Package (pcs/pk): 50pcs/bag 100pcs/bag 150 pcs/bag 200pcs/bag

    Product Details

    Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability

    Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability

    The Feature of Nylon Mesh Disc

    • Compatible with a broad range of solvents
    • Midly hydrophobic
    • Good resistance against alkalis and organics
    • Resistant against pH 3 to 13
    • Autoclavable

    The Benefits from Pre Cut Nylon Mesh Discs

    • Specific to the customer’s design needs
    • Special-made tool make size in tight tolerance
    • Non-fraying edges(depends on the technology)
    • Convenient for directly uasage and insert moulding
    • High productivity

    Chemistry and Mechanical Properties

    Because of quicker filtration processes, mesh filters are preferred against foamed filters. Because of their chemical stability, Nylon (Polyamide) and Polyester mesh filters are suitable for all rinsing liquids used.

    Filter material

    Medium (test or final rinsing liquid)
    Aqueous neutral cleaner Isopropanol Ethanol (spirit) Aliphatic hydrocarbons (cold cleaners) Ketones
    Filter mesh Polyamide/Nylon + + + + +
    Polyester + + + + +
    Foamed membrane Cellulose nitrate + - - + -
    Cellulose acetate + + - + -
    Polyamide/Nylon + + + + +
    + suitable, - unsuitable

    Nylon Filter Mesh Specifications for Cleanliness Analysis

    Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
      n/cm n/inch μm μm % μm g/m2
    PA 300/36 20 50 200 300 36 385 173
    PA 267/41 24 60 150 267 41 285 117
    PA 237/44 28 70 120 237 44 215 87
    PA 213/41 30 76 120 213 41 225 94
    PA 213/46 32 80 100 213 46 165 69
    PA 178/41 36 90 100 178 41 178 78
    PA 150/36 40 100 100 150 36 190 87
    PA 152/43 43 110 80 152 42 135 60
    PA 130/38 48 120 80 130 38 145 62
    PA 120/44 56 140 60 120 44 85 44
    PA 110/42 59 150 60 110 41 98 46
    PA 100/37 64 160 60 100 38 105 50
    PA 90/41 72 180 50 90 41 82 39
    PA 75/36 80 200 50 75 36 90 43
    PA 60/36 100 250 42 60 34 65 35
    PA 42/25 120 305 42 42 24 75 42
    PA 44/27 120 305 38 44 29 72 35
    PA 42/25 120 305 38 42 25 67 35
    PA 45/29 120 305 35 45 33 60 28
    PA 55/42 120 305 30 55 40 52 20
    PA 40/26 130 330 38 40 25 74 36
    PA 42/30 130 330 35 42 29 62 30
    PA 47/37 130 330 30 47 37 55 22
    PA 32/20 140 355 38 32 21 68 36
    PA 37/26 140 355 35 37 26 65 33
    PA 38/28 140 355 30 38 33 53 25
    PA 31/21 150 380 38 31 18 68 40
    PA 35/27 150 380 30 35 29 57 26
    PA 34/26 150 380 30 34 26 50 26
    PA 30/25 165 420 30 30 25 59 28
    PA 30/19 145 368 38 30 19 64 40
    PA 25/21 180 460 30 25 21 60 31
    PA 25/15 165 420 38 25 15 75 42
    PA 20/16 200 508 30 20 16 65 34
    PA 10/4.3 208 530 38 10 4.3 77 53
    PA 8/3 220 560 38 8 3 78 56
    PA 6/1.7 228 580 38 6 1.7 80 59
    PA 3/1 236 600 38 3 1 85 61

    This just a part of specifications which common used.

    Why Work With Share Filters

    Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.

    Combine the Filter Mesh with Plastic

    We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

    Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability

    Filter Mesh Weaving

    The width of nylon and polyester filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

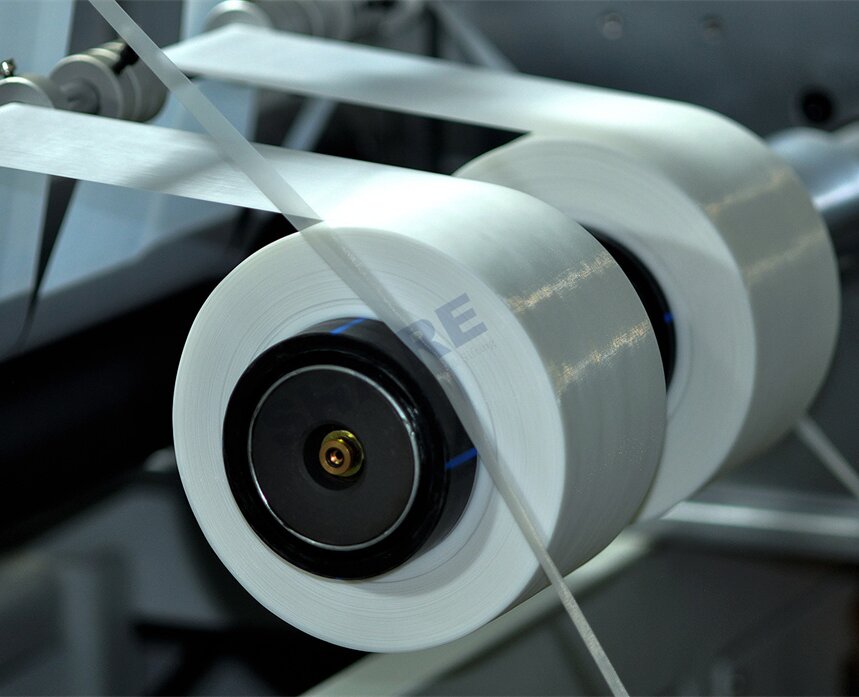

    Filter Mesh Slitted in Narrow Ribbons

    Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

    Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability

    Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability

    Filter Mesh Pre Cut Pieces and Shapes

    Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.

    Filter Mesh Tubes and Tubular Ribbon

    With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

    Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability

    Sewn Mesh Bag Ultrasonic Welded Mesh Bag

    Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability

    Standard Filter Bags

    Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

    Top design: plastic collar, metallic ring

    Filter media: mesh, felt

    Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability

    Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability

    Mesh Insert Injection Moulded Plastic Filters

    Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.

    Application of Share Filters Products

    Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.

    Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability Nylon Filter Mesh Micron 10um Disc Filter For Cleanliness Analysis Chemical Stability
    Fuel filter Biopsy bag Air purifier filter Coffee filter Irrigation filter Mesh disc filter
    Automotive Laboratory Appliance Food & Beverage Agriculture Power tool

    Contact Us

    Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


    Please connect with us so we can learn more about your application and design specifications!
