Automobile Inlet Fuel Top Feed Injector Micro Filter Basket Size 5.5×2.5×8.4mm

The injector filter is typically a small mesh screen or filter element that is situated at the inlet of the fuel injector. Share Filters injector filter protects the injection valves from damage and malfunction and ensures reliable operation of the injection system. Fine woven fabrics and a clamping ring ensure reliable particle protection and optimum fixation.

Share Filters' injector filters consist of a nylon or polyester filter mesh held in a polymer or brass frame by insert moulding, allowing for a more robust part giving more reliability and longevity in its usage. This injection moulding processing can take many forms and Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit your needs.

We're the few suppliers who have experience with synthetic filters and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how.

Share Filtes Fuel Injector Filters Materials Options

	Support rim material	PA6, PA66, PET, PP, ABS, brass, and other High-Performance Thermoplastics
	Filter media	Nylon mesh, polyester mesh, PP mesh, metallic mesh
	Micron rating	8μm - 500μm
	Mesh parts fabrication	Laser cutting, sonic cutting, sonic stamping
	Process	Injection moulding
	Specification	ø6*7, 6*10, 6*12, 6*14, 5.5*8.5mm, ect.
	Colour	Custom

Product Details

The Feature of Share Filters Fuel Injector Filters Filter media in PA, PE, or stainless steel to offer different flow capacities according to the specifications required Filter macron rating range between 8 and 500 micron High filter surface, even in extremely small volumes, respecting the specifications or increasing the performance Quality and experience acquired in the sector enable innovative solutions

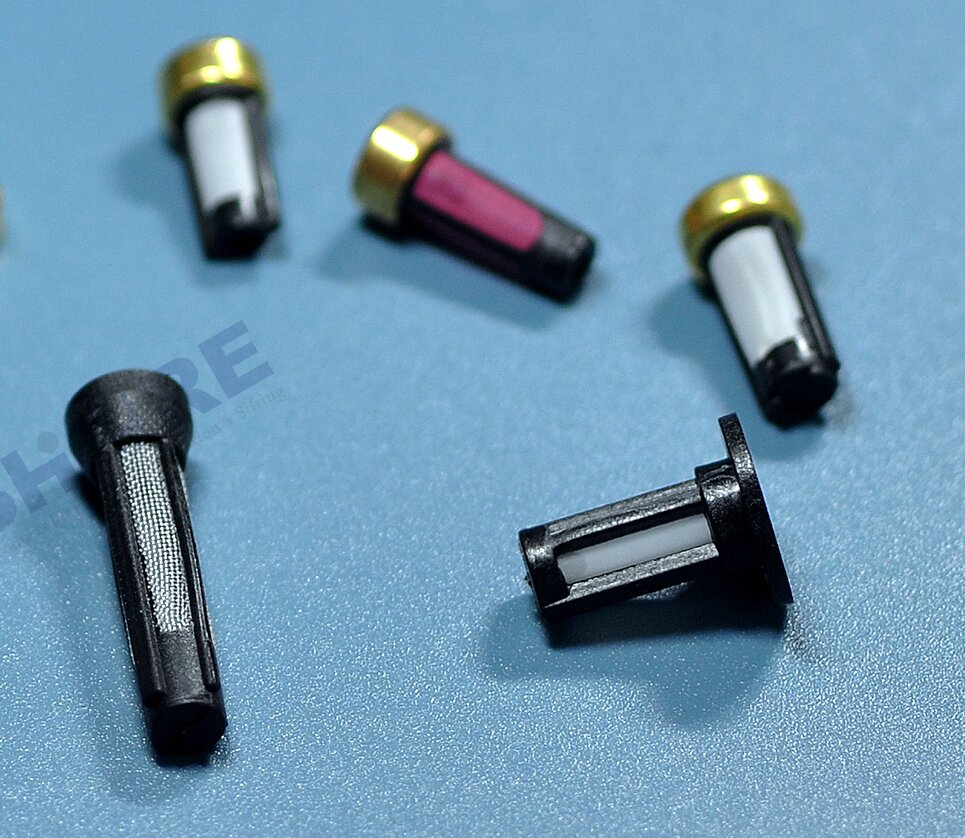

Other Fuel Injector Filters

How To Select The Right Filter Mesh? You Can Follow These Points

Pore size or the size of the particle you need to filter Mesh material (consider the working condition) Mesh thread diameter, mesh thickness Opening area

PA(nylon) Filter Mesh Specification

This data sheet just include our common specification, please contact us if you have other custom specification

About Us

Share Filters has over 20 years of experience developing and manufacturing filter mesh and solutions for our customer's screen and filtration needs. Our monofilament filter mesh includes nylon mesh, polyester mesh, polypropylene mesh, stainless steel mesh. Thanks to the advanced processing equipments and extensive experience, Share Filters has the capability to convert these filter media into all kinds of mesh shapes, discs, ribbons, tubes, bags and plastic moulded filters.

Filter Mesh Weaving

The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

Filter Mesh Slitted in Narrow Ribbons

Filter Mesh Cutting Pieces and Shapes

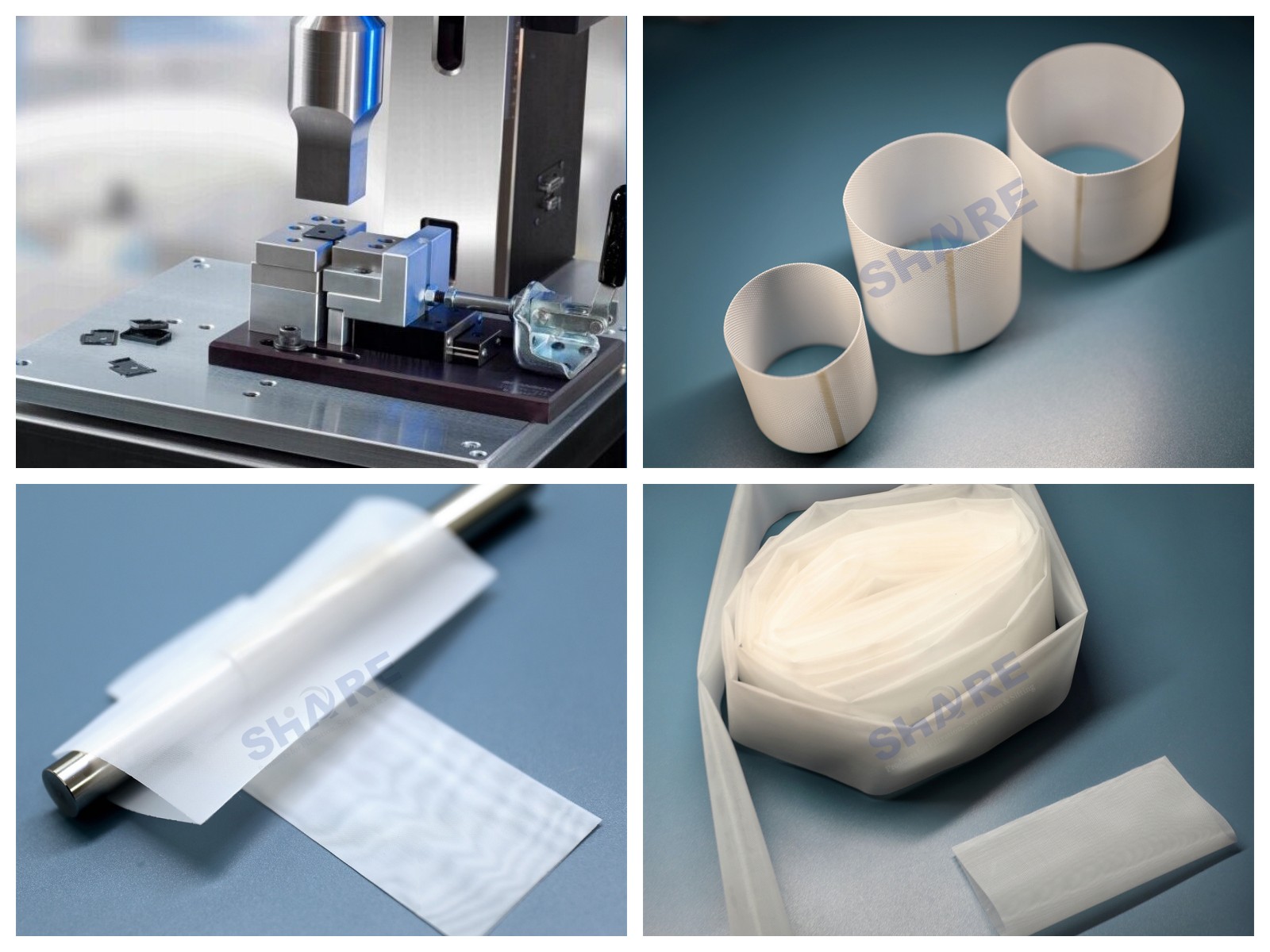

Ultrasonic Cutting and Welding

Ultrasonic cutting and welding are accurate and clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.

Welded Mesh Bags

Sewn Mesh Bag

Mesh Insert Injection Moulded Plastic Filters

Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.

Application of Share Filters Products

Injector filter	Biopsy bag	Air purifier filter	Coffee filter	Drip irrigation filter
Automotive	Healthcare	Appliance	Food & Beverage	Agriculture
