SHARE nylon monofilament mesh filters are designed for surface
filtration applications. We weave by individual filaments to
produce monofilament mesh into precise mesh opening, and heat set
to maintain precision and provide extra strength and durability.
Nylon material is anti aging, wear resistant, pressure resistant,
durable and high temperature resistant, SHARE nylon mesh filter meshes & bags are widely used for food, beverage, petrochemical, coatings, ink, adhesives, process
water, cooling tower, oil, gas, critical pharmaceutical and
automotive paint.
We produce nylon monofilament filter mesh and filter bag in
standard and FDA compliant grades, it is certified silicone free.
Gallery
SHARE nylon woven filter bags are available in standard and custom
sizes.
Standard sizes include:
1# 7*17" (180*430mm),
2# 7*32" (180*810mm)
3# 4*9" (102*230mm)
4# 4*15" (102*420mm)
5# 6*22" (152*559mm)
Other sizes can be custom made.
Metal ring top, plastic ring top, drawstring top are for your
option.
Typical applications suited to SHARE filter meshes and filter bags
include:
• Automotive
• Food, Beverage and Petrochemical
• Paint, Coatings, Ink and Adhesives
• Oil and Gas
We can help select the right micron ratings(available from 3um to
2500um) for your application depends on the type of item you want
to screen.
Specifications
| Item Name | Nylon Monofilament Woven Filter Mesh & Filter Bag, Extra Strength,
Abrasion Resistance, Uniformed Openings |
| Manufacturer | Taizhou Share Filters Co., Ltd. |
| Brand | SHARE FILTERS |
| Material | 100% nylon monofilament mesh |
| Color | Natural white |
| Weave type | Plain woven, twill woven, dutch woven |
| Mesh opening | 3um to 2500um are available |
| Open area | 1% to 67% |
| Thickness | 50um to 1900um |
| Size | Mesh: commonly roll width 39.3 inch/100 cm, 50 inch/127 cm, 78.7 inch/200 cm, 118
inch/300 cm, 1cm to 390cm are available.
roll length 30-70 mester or customized
Bag: 1# 7*17" (180*430mm),
2# 7*32" (180*810mm)
3# 4*9" (102*230mm)
4# 4*15" (102*420mm)
5# 6*22" (152*559mm) |
| Supplied in the form of | Rolls, discs, shapes, bags |
| Features | 1. No toxic, silicone free, no chemicals treatment or additive,
odourless, tasteless, high strength, high elongation, good
elasticity
2. With high toughness, resistance to weak acid, oil resistance,
alkali resistance, heat resistance and other characteristics, it
also has good insulation, low lubricating coefficient
characteristics, wide application range
3. High quality material, corrosion resistance, wear resistance,
long use life, smooth surface high strength
4. Good dimensional stability, great precision, uniform thread
diameter and regular square holes
5. Smooth surface for easy particle separation
6. Available in roll, disc, shape, piece, tube, ribbon, bag and
customized molded parts
7. Available for water, air, oil, paint, powder filtration
8. Compliance with food grade
9. RoHs Reach certificate |
| Quality control | Visual inspection, optical or pressure sensitive equipment and
automated 3D image-inspection equipment |
| Certificate | ISO19001 SGS ROHS REACH |
| Sample | 2 meters or 2 bags free |
| Applications | Wide ranges of industrial applications, such as paint filters,
automotive filters, air purifier filters, air conditioner filters ,
circulating & waster water filter , cell strainer, blood filter
transfusion , wound care, injector filtration, coffee filter,
biopsy bag, milling mesh, test/sample sieve, filters for
agricultural instruments, filtration of powder and liquid
chemicals, etc. |
Related Products
SHARE produces all kinds of liquid filter bags for a wide range of
applications. Our liquid filter bags provide surface filtration, where particles
larger than the pore size stay on the surface. Bags are made of
nylon, polypropylene, or polyester monofilament to ensure a precise
micron rating without fiber migration. Micron ratings range from 3
to 2500μm, and these bags are great for removing solid particles
due to their high strength.
Contact SHARE for further information.
| The Chemical Resistance Of Liquid Filter Bag |
| Fiber Material | Polyester | Nylon | Polypropylene |
| Abrasion Resistance | Very Good | Excellent | Very Good |
| Weakly Acid | Very Good | General | Excellent |
| Strongly Acid | Good | Poor | Excellent |
| Weakly Alkali | Good | Excellent | Excellent |
| Strongly Alkali | Poor | Excellent | Excellent |
| Solvent | Good | Good | General |
Packaging & Shipping
Filte bags are packed into sealed PE bags. The label contains the
following standard information:
item name, manufacturer, material, dimensions, manufacturing date,
order number, batch number etc.
| Port to Port | Door to Door |
| Express(DHL,UPS,FEDEX, EMS) | | 1 - 5 days |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |

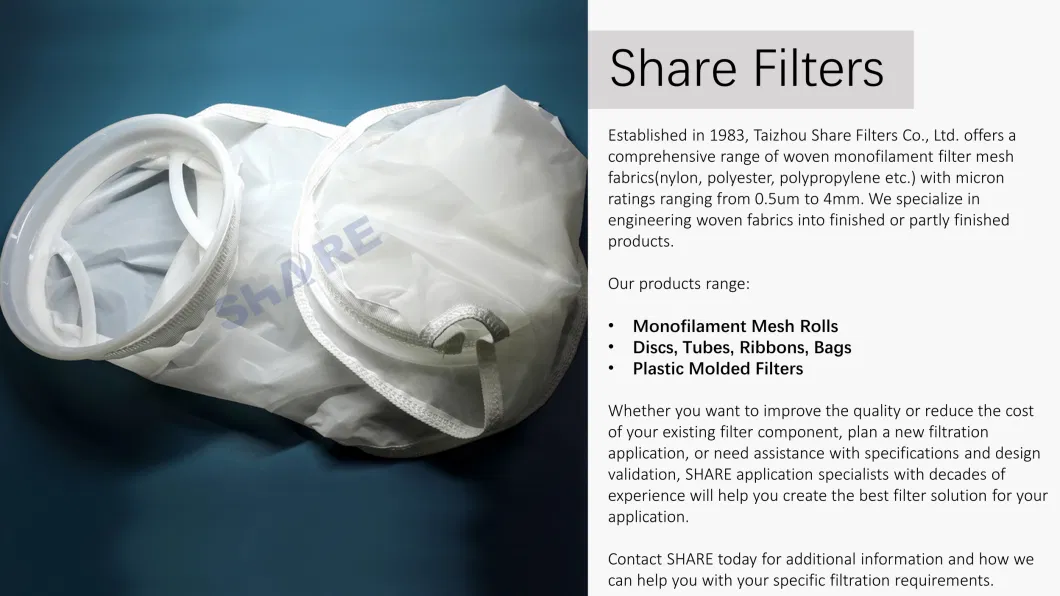

Company Profile
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are
one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly
notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically,
it takes 5 to 15 working days for us to complete mass production once you have
placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and
automated 3D image-inspection equipment, our production operators
conduct self-inspections at every stage of the process.
Additionally, we have spot inspections and final inspections
carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting
capabilities from yarn over weaving to converted items with
professional technical team and quality guarantee and management
for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
