The fuel injector filter is installed on the fuel injector to
filter impurities in the fuel. The injector filter ensures that the
injector precisely delivers clean fuel into the internal combustion
of the engine.
Specifications
| Item Name | Universal Fuel Injector Micro Basket Filter |
| Manufacturer | Taizhou Share Filters Co., Ltd |
| Brand | SHARE FILTERS |
| Type No. | SG-FL-107 |

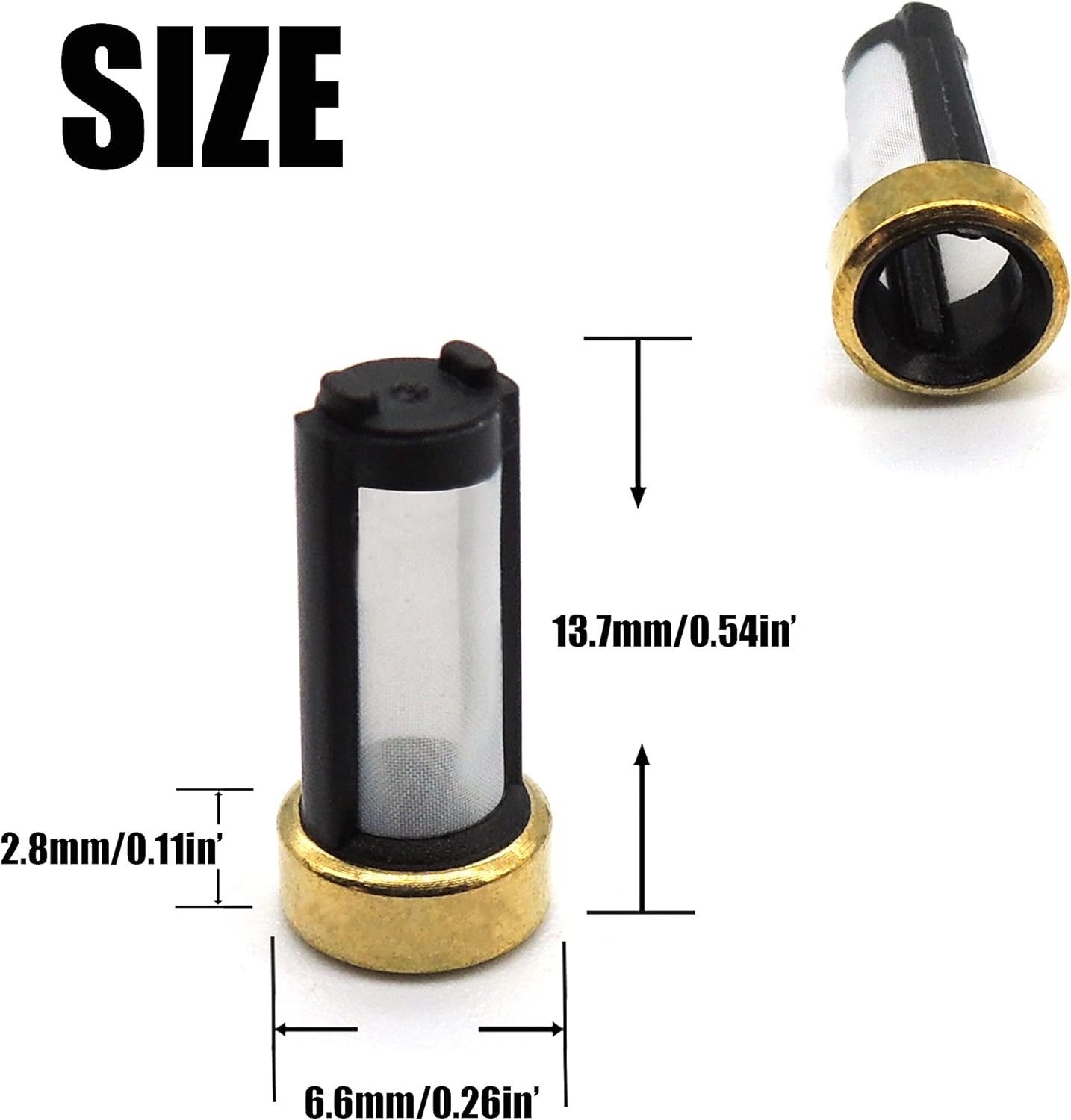

| Size | 6.6mm x 2.8mm x13.7mm |
| Material | Nylon, copper, polyester mesh |
| Processing Technologies | Insert/over injection molding |
| Quality Control | Visual inspection, optical or pressure sensitive equipment and
automated 3D image-inspection equipment, self-inspections, spot
inspections, final inspections |
| Features | 1. 100% brand new and high quality
2. Made of high-quality materials, durable
3. Full range of fuel injector filter, micro basket filter
4. Universal type
5. Fit for 80% kinds fuel injectors in market
6. Fuel Injector Micro Basket Filter |
| Note | 1. The real color of the item may be slightly different from the
pictures shown on website caused by many factors such as brightness
of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data. |
| Applications | Automotive gasline fuel systems |
SHARE produces universal micro fuel injector filters in various
dimensions. Here are some examples (not a complete list):
6x3x12mm, 6x3x10.7mm, 6x3x13.5mm, 6x3x13.8mm, 6x3x13.8mm, 6x3x13mm,
6x3x13mm, 6x3x13mm, 10.5x1x13mm, 10.5x1x13mm, 6.6x2.8x13.7mm,
6x3x14mm, 6x3x14mm, 10.5x1x12.8mm, 6x2x7mm, 5.5x2.4x8.4mm,
6.6x2.8x10mm, 5.9x5.5x18.4mm, 7.2x5.7x28.6mm, 7.5x3x23.4mm,
10.3x1x11.2mm, 6x3x21.50mm, 3.2x3.6x5x14mm, 6.7x3x35.3mm,
8.1x10.7x5.7x19.1x22.9mm, 7.6x5.3x25.6x34.5mm, 18x19.2x33.3mm,
6.6x6x16.4mm, 6.2x4.3x11.9mm, 4.6x3.5x18mm, 4.7x3.5x18mm,
10.4x10.7mm, 4.2x3x14.9mm, 12.5x1x11.3mm, 6x3x10mm,
4.5x9.7x2.4x10.6mm, 4.1x4x10.4mm, 6.5x10x1x15.1mm, 8x3.7x12.5mm,
6x9.4x2.4x10.6mm, 6.1x3x14mm, 6x5.1x3.5mm, 6.3x4x3.8mm,
6.1x3x10.5mm, 8.7x3.8x13.4mm, 7.05x7.2mm, 15.9x12.5x6.1mm,
23.3x18.5x12.6mm, 16.1x12.6x7.7mm, 23.55x18.5x12.6mm,
11.3x7.75x5.7mm, 15.3x12x7.7mm, 23.3x15.8x8mm, 24.8x20.7x8mm,
24.8x20.7x10mm, 19.6x7.75x15.5mm, 24.85x7.75x16.55mm,
24.6x19.7x16mm, 26.4x12.45x21mm, 24.1x20.8x9.7, 18.2x16.2x11mm,
25.2x20.5x16.2mm, 22.3x15.5x18.7mm, 22x19.1x9mm, 24.8x21.7x11.4mm,
18.2x15.8x14.2mm, 15.2x11.7x8.8mm, 24.5x14.4x18.5mm,
23.8x20.7x10.3mm, 38.5x34.95x10.6mm, 36.3x32.5x10.2mm,
23.6x19.3x7.6mm, 12.8x27.5x12x3.4x1.8mm, 30.02x11.15x27.81mm,
4.5x3x2mm, 33x27.5x20.8mm, 24.9x4.4x4.6x1.9mm, 36x32x10.4mm,
14.8x3.8x8.7mm 25x6.05mm.
Contact us for more information about specifications and prices for
our various universal fuel injector filters.
Why SHARE
SHARE produce a wide range of mesh-insert plastic molded filters
for various automotive applications:
Oil filters
Gasoline filters
Injector filters
ABS filters
Automobile air conditioner filters
Transmission filters
Brake filters
Power steering filters
Oil control panel filters
Gas Cap Breather Filters
Reservoir Filters
SCR Urea Systems filters
Solenoid valve filters
Steering filters
Call or email us for more information and support about our
specific customized molded plastic filters for automotive
applications.
SHARE application specialists with decades of years experiences
will help you select the best solution for your application.
Packaging & Shipping
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the
actual size
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage
during transportation
4. Package belt strengthen if pallets are available
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date,
order number, batch number etc.
| Port to Port | Door to Door |
| Express(DHL,UPS,FEDEX, EMS) | | 1 - 5 days |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are
one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your
evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly
notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically,
it takes 5 to 15 working days for us to complete mass production once you have
placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and
automated 3D image-inspection equipment, our production operators
conduct self-inspections at every stage of the process.
Additionally, we have spot inspections and final inspections
carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting
capabilities from yarn over weaving to converted items with
professional technical team and quality guarantee and management
for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
