    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Ask Lasest Price
    Brand Name : Share Filters
    Model Number : Welded Black Nylon Mesh Tube Filter
    Certification : Rohs
    Price : USD0.04-USD1.00/pc
    Payment Terms : T/T, L/C, D/P, Western Union, PayPay
    Supply Ability : 20000pcs/day
    Delivery Time : 5-15 days
    • Product Details
    • Company Profile

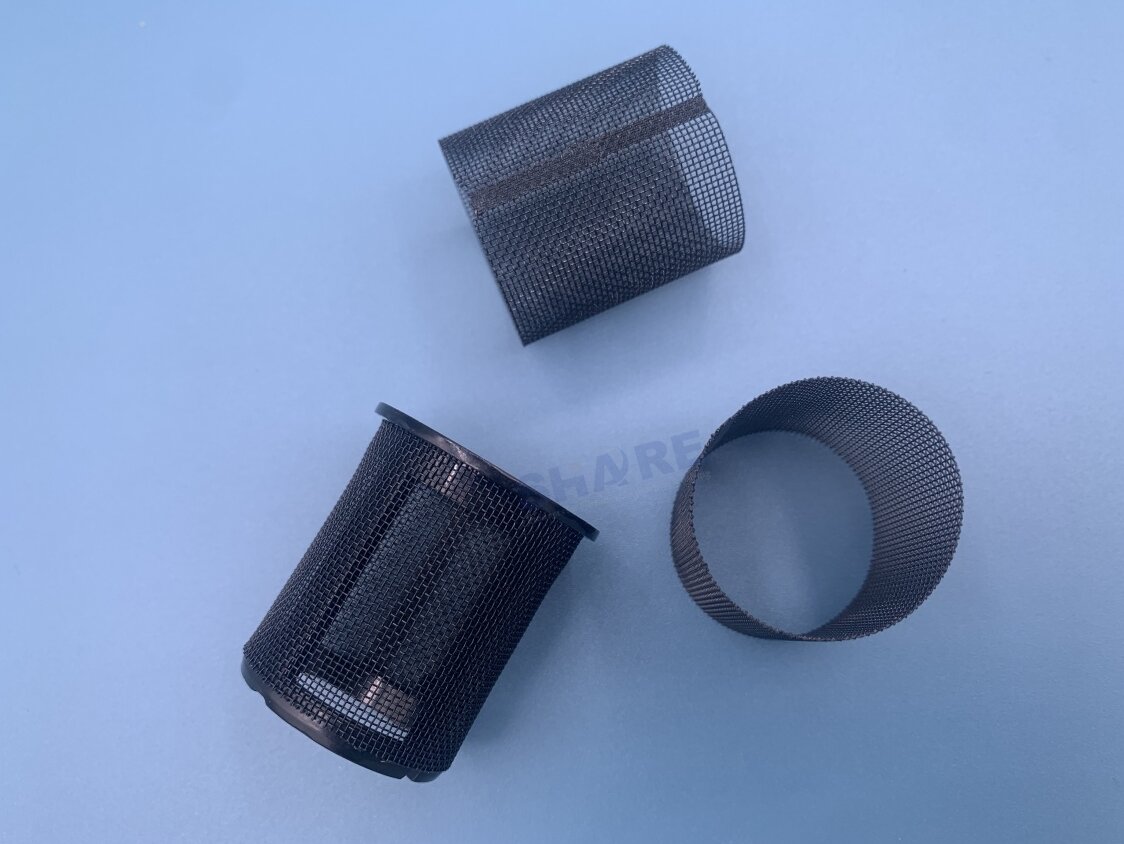

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Ultrasonic Welded Black Nylon Mesh Tube Filter for Industry Filtration Removable

    The nylon fiter mesh can be ultrasonically welded into tube configurations. Tubes are made with one overlapping ultrasonic weld. Welds are accurate, clean and are made without the introduction of secondary material to the weld.

    Nylon filter mesh is the most popular and economical synthetic filtration mesh. Share weaves nylon filter mesh with Sulzer P7100 looms. More than 20 years of production experience enables us to weave nylon filter mesh with precise and uniform mesh holes. Share Filters not only offers a wide range of specifications of nylon filter mesh in rolls, we also process the filter mesh into all kinds of filter components.

    Share Filters' Filter Mesh Options

    Material Options: Monofilament woven nylon filter mesh, polyester filter mesh, PP filter mesh
    Mesh Opening: From 3 micron to 4400 micron
    Thread Diameter: From 30 micron to 1000 micron
    Mesh Count: From 6 mesh to 600 mesh
    Weave Type: Plain weave, twill weave
    Fabricated Part: Sheets, pieces, strips, tubes, discs, shapes, ribbons
    Dimension: Can be tailored to any shape or dimension
    Colour: White, or customize

    Product Details

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Converting Filter Mesh To Be Mesh Strips, Pieces, Tubes, Moulded Filter

    Thanks to the advanced process equipments and many years of experience, Share Filters' filter mesh pieces and tubes can be tailored to any shape or dimension. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Share Filters has the competence to manufacture tubes either by heat slitting or by ultrasonic welding. By slitting two layers of mesh simultaneously, the heat emitting from the slitting facility will weld both sides together creating a tube. These mesh pieces and tubes are suitable for mesh insert injection moulding and simple and cheap in production. For higher weld strength, we recommend ultrasonic welded tubes having one overlapping weld.

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration RemovableUltrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Benefits from Precut Nylon Mesh Tubes:

    • Specific to the customer’s design needs
    • Wide range of micron rating and thread diameter options
    • Non-fraying and clean edges(depends on the technology)
    • Convenient for insert moulding
    • High productivity

    The Property of Nylon Filter Mesh:

    • High tensile strength and cost-effective
    • Precise and even mesh opening
    • Elasticity and flexibility
    • Good resistance to alkline
    • Easy cutting, dyeing, and cleaning

    Share Filters can supply mesh filter elements in every stages, from the mesh in rolls to final moulded filters.

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable
    • Slitted filter mesh ribbon
    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable
    • Cutted pieces, precise size is convenient for installment
    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable
    • Welded mesh filter tube, convenient for injection moulding
    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable
    • Mesh insert injection moulded filter

    Nylon Filter Mesh Specifications

    Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
      n/cm n/inch μm μm % μm g/m2
    PA 3233/58.3 2.3 6 1000 3233 58.3 1900 412
    PA 2300/51.3 3.1 8 900 2300 51.3 1700 450
    PA 1950/61 4 10 550 1950 61 950 262
    PA 1500/56 5 12 500 1500 58 850 271
    PA 1267/58 6 16 400 1267 56 780 208
    PA 1079/57 7 18 350 1079 57 675 186
    PA 900/52 8 20 350 900 52 685 212
    PA 860/60 9 24 250 860 58 455 145
    PA 700/49 10 25 300 700 49 576 195
    PA 583/49 12 30 250 583 49 470 162
    PA 533/41 12 30 300 533 41 585 234
    PA 414/34 14 35 300 414 34 595 273
    PA 425/46 16 40 200 425 46 370 139
    PA 375/36 16 40 250 375 36 485 217
    PA 350/49 20 50 150 350 49 375 98
    PA 300/36 20 50 200 300 36 385 173
    PA 267/41 24 60 150 267 41 285 117
    PA 237/44 28 70 120 237 44 215 87
    PA 213/41 30 76 120 213 41 225 94
    PA 213/46 32 80 100 213 46 165 69
    PA 178/41 36 90 100 178 41 178 78
    PA 150/36 40 100 100 150 36 190 87
    PA 152/43 43 110 80 152 42 135 60
    PA 130/38 48 120 80 130 38 145 62
    PA 120/44 56 140 60 120 44 85 44
    PA 110/42 59 150 60 110 41 98 46
    PA 100/37 64 160 60 100 38 105 50
    PA 90/41 72 180 50 90 41 82 39
    PA 75/36 80 200 50 75 36 90 43
    PA 60/36 100 250 42 60 34 65 35
    PA 42/25 120 305 42 42 24 75 42
    PA 44/27 120 305 38 44 29 72 35
    PA 42/25 120 305 38 42 25 67 35
    PA 45/29 120 305 35 45 33 60 28
    PA 55/42 120 305 30 55 40 52 20
    PA 40/26 130 330 38 40 25 74 36
    PA 42/30 130 330 35 42 29 62 30
    PA 47/37 130 330 30 47 37 55 22
    PA 32/20 140 355 38 32 21 68 36
    PA 37/26 140 355 35 37 26 65 33
    PA 38/28 140 355 30 38 33 53 25
    PA 31/21 150 380 38 31 18 68 40
    PA 35/27 150 380 30 35 29 57 26
    PA 34/26 150 380 30 34 26 50 26
    PA 30/25 165 420 30 30 25 59 28
    PA 30/19 145 368 38 30 19 64 40
    PA 25/21 180 460 30 25 21 60 31
    PA 25/15 165 420 38 25 15 75 42
    PA 20/16 200 508 30 20 16 65 34
    PA 10/4.3 208 530 38 10 4.3 77 53
    PA 8/3 220 560 38 8 3 78 56
    PA 6/1.7 228 580 38 6 1.7 80 59
    PA 3/1 236 600 38 3 1 85 61
    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Mesh count (n/cm), (n/in)

    The mesh count stands for the number of openings per inch.

    Mesh opening (w), (μm)

    The mesh opening w is the distance between two adjacent warp or weft thread.

    Thread diameter (d),( μm)

    The thread diameter is measured on the thread before weaving.

    Open area (%)

    The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area

    Share Filters Other Fabricated Filter Mesh Parts

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable
    Slitted mesh ribbon Mesh Disc Mesh Shape Mesh tube Welded bag

    Why Work With Share Filters ?

    Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.

    We're the suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Precise Filter Mesh Weaving

    The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

    Filter Mesh Slitted in Narrow Ribbons

    Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. Ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. Advanced heat and ultrasonic slitting and cutting equipment enables the production of various kind of mesh ribbons with clean edges.

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Filter Mesh Pre-Cut Pieces and Shapes

    Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.

    Cutting and Welding Tubes

    Share Filters has the competence to manufacture tubes either by heat slitting or by ultrasonic welding. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Ultrasonic Welded Mesh Bag Sewn Mesh Bag

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Standard Filter Bags

    Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

    Top design: plastic collar, metallic ring

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable

    Mesh Insert Injection Moulded Plastic Filters

    Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.

    Application of Share Filters Products

    Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.

    Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable Ultrasonic Welded Black Nylon Mesh Tube Filter For Industry Filtration Removable
    Fuel filter Biopsy bag Air purifier filter Coffee filter Irrigation filter Mesh disc filter
    Automotive Laboratory Appliance Food & Beverage Agriculture Power tool

    Contact Us

    Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


    Please connect with us now so we can learn more about your application and design specifications!
