Established in 1983, Taizhou Share Filters Co. Ltd. has been
specializing in the production of standard precision mesh fabrics
in polyamide, polyester, polypropylene, polyethylene and stainless
steel. In addition, SHARE develop and produce high performance
materials like Polyphenylenesulfide (PPS), Polyarylate(PAR),
Polyetheretherketone(PEEK), Etylenetetrafluorethylene (ETFE) and
Tungsten.
With years of hard research and development, SHARE have developed a
new type of material- PPS Mesh, which is unique in China until
2020.
PPS (Polyphenylene sulfide) mesh is part of a new generation of
high-tech mesh materials. It is specially developed for
applications which require a high resistance against temperature
and chemicals. Owing to its high temperature resistance, high toughness, good
dimensional stability and good rigidity, PPS provides a perfect solution for applications where other polymers
are not able to work, an ideal alternative to metallic media.
Specifications
| Item Name | High Temperature Resistance And Chemical Resistance Polyphenylene
Sulfide PPS Mesh |
| Manufacturer | Taizhou Share Filters Co. Ltd. |
| Brand | SHARE FILTERS |
| Material | Polyphenylene Sulfide(PPS) |
| Color | Slightly Yellow |
| Weave type | Plain woven, twill woven |
| Common width | 100cm, 127cm, 150cm, 160cm, 175cm, 200cm, 300cm or customized |
| Roll length | 30-100 mester or customized |
| Mesh Count/inch | 25 mesh/inch-420 mesh/inch |
| Thread diameter | 30um to 250um |
| Mesh Opening | 30um to 800um |
| Thickness | 56um to 508um |
| Certificate | ISO19001 SGS ROHS REACH |
| Features | 1. High temperature resistance: 190° C in continuous operation
2. Excellent hydrolysis and electrolysis resistance
3. Excellent alkali / acid and solvent resistance
4. Excellent mechanical resistance
5. Good flame resistance
6. Less strength loss
7. Highest fineness
8. Recyclable
9. Alternative for PEEK |
| Quality Control | Visual inspection, optical or pressure sensitive equipment and
automated 3D image-inspection equipment |
| Scope of applications | High temperatures and strong chemical environments |
| Artificial or Synthetic Fiber Chemical Resistance Comparison |
| Fiber Type | Continuous Working Temp. | Max. Working Temp. | Filtration Characteristic | Abrasion Resistance | Hydrolysis Resistance | Acid Resistance | Alkalis Resistance | Oxidation Resistance |
| PVC | 75ºC | 80ºC | Good | Excellent | Excellent | Excellent | Excellent | Good |
| PP | 90ºC | 100ºC | Good | Good | Excellent | Excellent | Excellent | Poor |
| PA | 110ºC | 115ºC | Moderate | Excellent | Poort | Moderate | Good | Moderate |
| PAN Copolymer | 120ºC` | 130ºC | Good | Good | Good | Moderate | Moderate | Good |
| PET | 135ºC | 150ºC | Excellent | Excellent | Poor | Moderate | Poor | Good |
| m-Aramide | 180ºC | 220ºC | Excellent | Excellent | Moderate | Moderate | Moderate | Good |
| PPS | 190ºC | 200ºC | Excellent | Good | Excellent | Excellent | Excellent | Moderate |
| Polyimide | 240ºC | 280ºC | Excellent | Moderate | Good | Good | Moderate | Excellent |
| Polyertrafluoroethylene | 250ºC | 280ºC | Moderate | Good | Excellent | Excellent | Excellent | Excellent |
| Fiberglass | 250ºC | 280ºC | Moderate | Moderate | Excellent | Poor | Moderate | Excellent |
Features
Affordable pricing
Uniform fabric structure
High porosity and large surface area
Exceptional corrosion resistance, thermal stability, and flame
retardancy
Applications
From what we've gathered, our clients are mainly using our PPS mesh
for
- ion exchange processes
- alkaline water electrolysis for hydrogen production
- feed and food drying
- filter for food, semiconductor and chemical applications
- chemical catalyst substrates
- oil-water separation
- gas filtration and purification
- wastewater treatment
- air pollution control
- desalination
- and more…
Product Options
PPS mesh specifications are designed to cater to a diverse array of
applications. The available mesh options are in the following
range:
Thread Diameter
30 - 250 µm
Mesh Count
25 - 420 per inch
Mesh Opening
30 - 800 µm
Open Area
25 - 60%
Mesh Thickness
56 - 508 µm
Pattern
Plain weave, twill weave
Width
Up to 300cm (Can be cut to specific widths such as 100 cm or 200
cm, or customized to any width as per request)
Below are a few standard specifications of our PPS mesh for your
information, but this isn't the full extent. Please reach out to us
for more information.
| SHARE PPS Filter Mesh Technical Datasheet |
| Material | Item No. | Specification | Thread Diameter | Mesh Opening | Open Area | Mesh Thickness | Weight | Tensile Breaking Strength | Tensile Elongation |
|
| | | μm | μm | % | μm | g/m2 | (N/5CM) (warp/weft) | (%) (warp/weft) |
| PPS | 20T-140 | 350/51PW | 140 | 350 | 51 | 260 | 86 | 660/643 | 29.5/27.8 |
| PPS | 20T-150 | 340/48PW | 150 | 340 | 48 | 280 | 100 | 766/755 | 29.5/28.4 |
| PPS | 47T-55 | 156/55PW | 55 | 156 | 55 | 100 | 34 | 246/253 | 26.4/30 |
PPS
(Toray yarn) | 20T-150 | 340/48PW | 150 | 340 | 48 | 287 | 100 | 810/780 | 24/24 |
PPS
(Toray yarn) | 59T-45 | 125/54PW | 45 | 125 | 54 | 80 | 27 | 210/210 | 17.7/17.7
|
Real Images
Packaging & Shipping

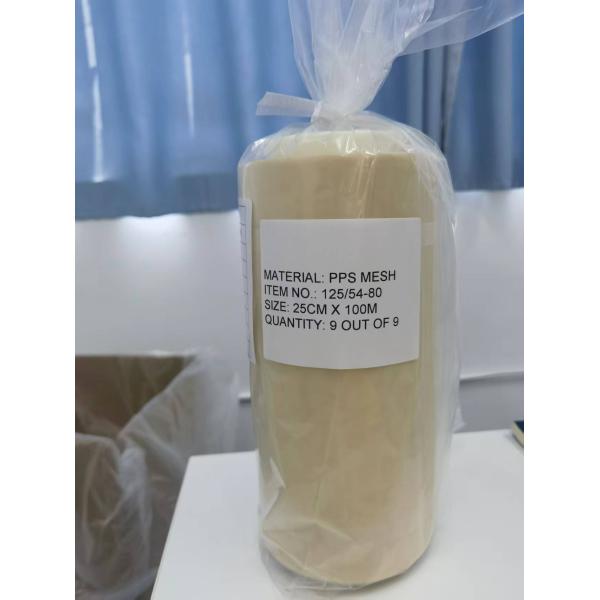

1. Rolled on the paper core or plastic pipe, packed into PE bags
2. Put into standard export carton
3. Put into PP woven bag to prevent damage during transportation
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date,
order number, batch number etc.
| Port to Port | Door to Door |
| Express(DHL,UPS,FEDEX, EMS) | | 1 - 5 days |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are
one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly
notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically,
it takes 5 to 15 working days for us to complete mass production once you have
placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and
automated 3D image-inspection equipment, our production operators
conduct self-inspections at every stage of the process.
Additionally, we have spot inspections and final inspections
carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting
capabilities from yarn over weaving to converted items with
professional technical team and quality guarantee and management
for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
