SHARE Polypropylene (PP) Woven Mesh Filters: Elevating Pharmaceutical Filtration Excellence!

Are you seeking precision and purity in your pharmaceutical processes? Look no further than SHARE Polypropylene Woven Mesh Filters - your trusted pharmaceutical filtration solution for cutting-edge filtration technology!

SHARE polypropylene woven filters key applications for pharmaceutical:

1. Aqueous Serum Clarification:
Achieve clear serums by effortlessly removing impurities, make sure the highest standards of clarity and purity.

2. Organic Serum Clarification:
Tailored for organic serums, SHARE filters ensures excellent clarity by effectively eliminating impurities

3. Immunological & Diagnostic Assays:
Enhance the accuracy and reliability of your assays with SHARE filters, esigned for precise particle removal.

4. Solution Manufacturing:
Elevate your solution manufacturing processes by entrusting SHARE filters to eliminate contaminants, aggregates, and particles, guaranteeing top-tier pharmaceutical solutions.

Why Choose SHARE Polypropylene Woven Mesh Filters?

1. Uniform Mesh Opening: Tailor filtration to your exact needs with SHARE's precisely engineered polypropylene filters.
2. Chemical Compatibility: Rely on SHARE filters for compatibility with a diverse range of pharmaceutical solutions.
3. Durability: Built to withstand rigorous pharmaceutical processes, SHARE filters ensure longevity and consistent performance.

SHARE has the ability to engineer woven mesh fabrics into finished or partly finished products. With its industrial lines and long-standing experience, we provide fabrics cut to size, lot-to-lot consistency and high quality custom fabricated components, in almost any requested shapes.

Please refer to our technical data sheet below for our common specifications of polypropylene filters. SHARE application specialists with decades of years experiences will also help you select the best polypropylene filters for your application.

Contact us now to discuss how SHARE filters can revolutionize your pharmaceutical filtration needs.

Specifications

Gallery

Cotact SHARE for more images and applications of our fabricated mesh filters.

Technical Datasheet

SHARE Precision Polypropylene Filter Mesh Technical Data Sheet
Fabric Number	Mesh Count	Thread Diameter	Mesh Opening	Open Area	Fabric Thickness	Weight
No.	mesh/cm	um	um	%	um	g/m²
PP-3360/60	2.3	1000	3360	60	1800	340
PP-2400/50	2.9	1000	2400	50	1730	470
PP-2000/51	3.6	800	2000	51	1310	310
PP-1680/46	4	800	1680	46	1600	410
PP-1190/42	5.5	600	1190	42	1340	318
PP-1000/45	6.8	500	1000	45	1020	300
PP- 840/45	8	440	840	45	725	190
PP- 710/41	9	440	710	41	800	216
PP- 500/36	12.2	340	500	36	610	180
PP- 420/30	13.9	300	420	30	610	200
PP- 405/41	16.8	230	405	41	350	100
PP- 350/32	16.2	270	350	32	515	160
PP- 297/35	20	215	297	35	420	125
PP- 295/23	16.2	340	295	23	610	245
PP- 280/41	22.7	165	280	41	300	90
PP- 250/29	22.2	215	250	31	430	140
PP- 210/32	27	165	210	32	295	95
PP- 177/29	29	165	177	29	314	110
PP- 150/34	38.5	110	150	34	195	65
PP- 125/30	43.5	106	125	30	200	68
PP- 105/25	47.5	106	105	25	230	78
PP- 105/16	36,5	165	105	16	360	134
PP-3360/60	2.3	1000	3360	60	1800	340
PP-2400/50	2.9	1000	2400	50	1730	470
PP-2000/51	3.6	800	2000	51	1310	310
PP-1680/46	4	800	1680	46	1600	410
PP-1190/42	5.5	600	1190	42	1340	318
PP-1000/45	6.8	500	1000	45	1020	300
PP- 840/45	8	440	840	45	725	190
PP- 710/41	9	440	710	41	800	216
PP- 500/36	12.2	340	500	36	610	180
PP- 420/30	13.9	300	420	30	610	200
PP- 405/41	16.8	230	405	41	350	100
PP- 350/32	16.2	270	350	32	515	160
PP- 297/35	20	215	297	35	420	125
PP- 295/23	16.2	340	295	23	610	245
PP- 280/41	22.7	165	280	41	300	90
PP- 250/29	22.2	215	250	31	430	140
PP- 210/32	27	165	210	32	295	95
PP- 177/29	29	165	177	29	314	110
PP- 150/34	38.5	110	150	34	195	65
PP- 125/30	43.5	106	125	30	200	68
PP- 105/25	47.5	106	105	25	230	78
PP- 105/16	36,5	165	105	16	360	134

The data are compiled to the best of our knowledge. Subject to change without notice. Current data are available on you demand.

Mesh Count: Number of openings per inch or centimeter
Weave Type: Plain Weave (PW) or Twill Weave (TW)
Thread Diameter: The diameter of each thread before weaving
Mesh Thickness: The average thickness of the woven mesh
Mesh Opening: The distance between adjacent threads
Open Area: The ratio (%) of the open area to the thread area within a woven mesh

Production Process

Yarn

Monofilament

• Excellent diameter control for precise openings
• High flow rates and low pressure drops
• Filtration by surface particle capture
• Excellent surface particle release, easy to clean
• High degree of stiffness

Weave

Plain Weave

Plain weave is made by crossing the warp and weft yarns with each other. Well-regulated and highly durable textile fabrics can be created as there are many points where the threads cross each other (structure points). It is also resistant to friction.

Since the warp and weft yarns appear on the front and rear surfaces of the textile uniformly, it is sometimes difficult to make a distinction between the front side and the rear side compared to other structures.

Product Procedure

Yarn→Raw yarn inspection→Warping arranging→Drawing in heddle→Drawing in reed→Weaving→Initial survey→Washing→Heat setting treatment→Physical properties inspection→Products inspection→Product→Fabricated mesh if needed→Plastic molded filters if needed

Mesh

SHARE precision filter mesh has smooth surface, great dimensional stability and strength than other material options, and tighter tolerance. It has different but precise mesh opening from 3um to 4400um. These allow for the different sized filter meshes to be used in different situations and for different purposes, such as home appliance, liquid filtration, dust collection or separation, dry and wet filter bags, sifting, milling, automotive, medical, food, pharmaceutical, molded filters and many more.

SHARE can further processed filter mesh into various forms of custom filters, such as filter pieces, shapes, ribbons, tubes, plastic filters by our state-of-the-art technologies of cutting, stitching, gluing, welding, laser cutting, molding and more, to fuifil customers and markets' demanding filtration and screening needs.

Company Profile

Established in 1983, Taizhou Share Filters Co., Ltd. offers a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products.

Our products are categorized into three classes.

Monofilament Mesh Rolls 30 years of experience & capabilities PA, PET, PP, PE, PPS, PEEK etc. Characterized by precise mesh opening, open area and thickness Excellent converting capabilities from yarn over weaving to converted items
Discs, Tubes, Ribbons, Bags Cutting, calendering, welding, slitting, sewing, pleating, molding Discs, tubes, ribbons, bags etc. Various converting capabilities by stamping or slitting technology: cold, heat, laser, ultrasonic Clean, smooth & closed edge quality Maximum compatibility with injection molding process
Plastic Molded Filters Insert molding and over molding Mold design, modeling, prototyping, manufacturing and testing High efficiency, excellent particles holding capacity and low pressure drop High stability, repeatability and reliability Extensive material options and industry-best lead times

Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.

Contact SHARE today for additional information and how we can help you with your specific filtration requirements.

Packaging & Shipping

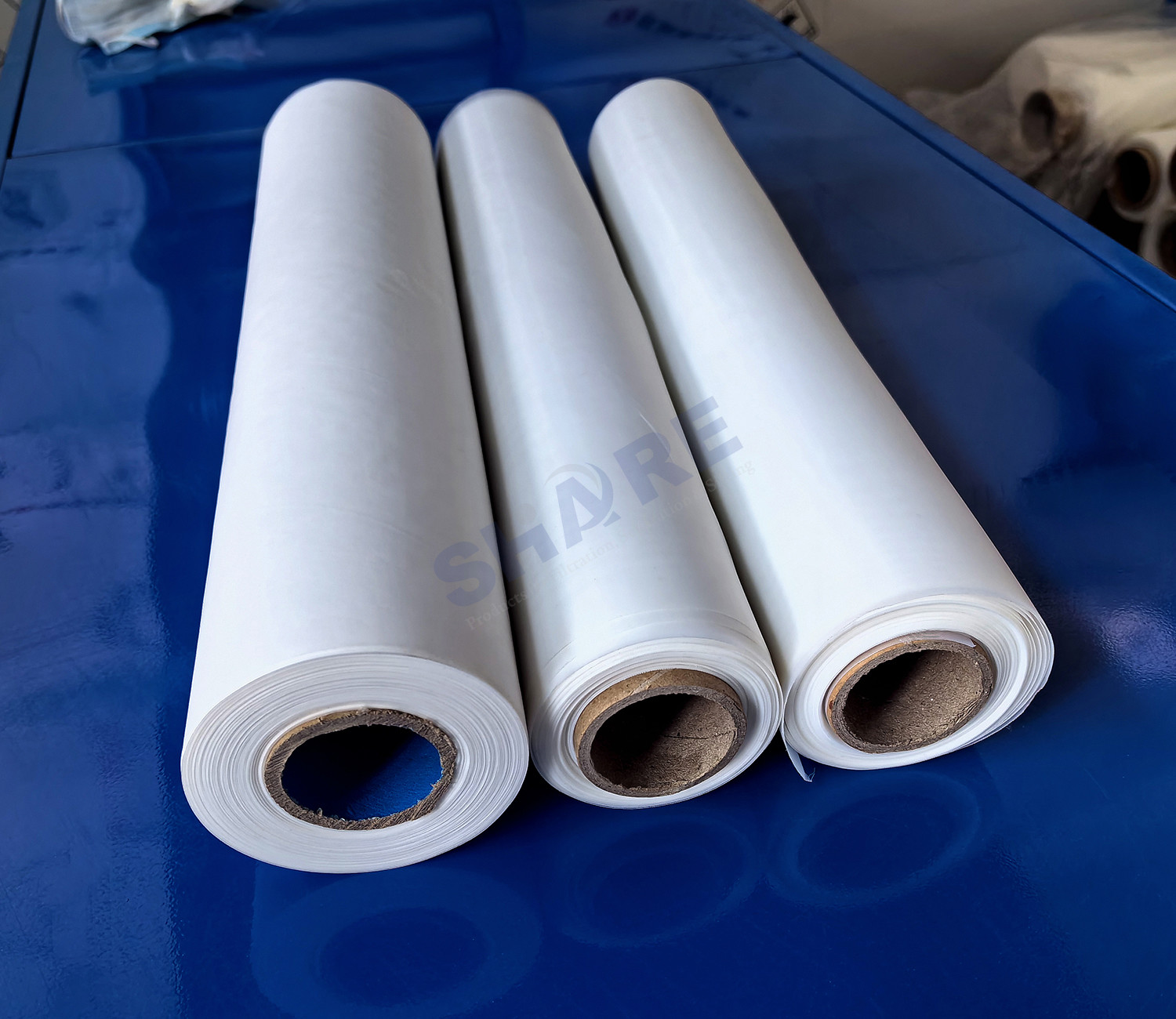

1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen

For fabricated & molded filters:

1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available

The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.
