Motorcycle Inline Fuel Filter Micron KTM Custom Fuel Injection System Strainer

Ask Lasest Price
Brand Name :	Share Filters
Model Number :	In-Line Fuel Filter
Certification :	SGS
Price :	USD0.30-USD1.50/pc
Payment Terms :	T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability :	10000pcs/day
Delivery Time :	7-20 days

Add to Cart

Product Details
Company Profile

Motorcycle Inline Fuel Filter Micron KTM Custom Fuel Injection System Strainer

Motorcycle In-Line Fuel Filter 20 Micron KTM Custom Fuel Injection System Strainer

The motorcycle in-line fuel filter works by allowing the fuel to pass through a fine mesh or element that traps particles and contaminants such as dirt, rust, and debris. This helps to prevent these particles from entering the engine and causing damage or reducing its performance.

Share Filter's custom motorcycle in-line fuel filter consist of a synthetic filter mesh held in a polymer plastic frame, allowing for a more robust part/product giving more reliability and longevity in its use. Injection moulding can take many forms and Share filters is fully capable to help develop and produce the injection moulded filter product that will best suit your filtration needs, as well as, offering any additional advice or service along the way.

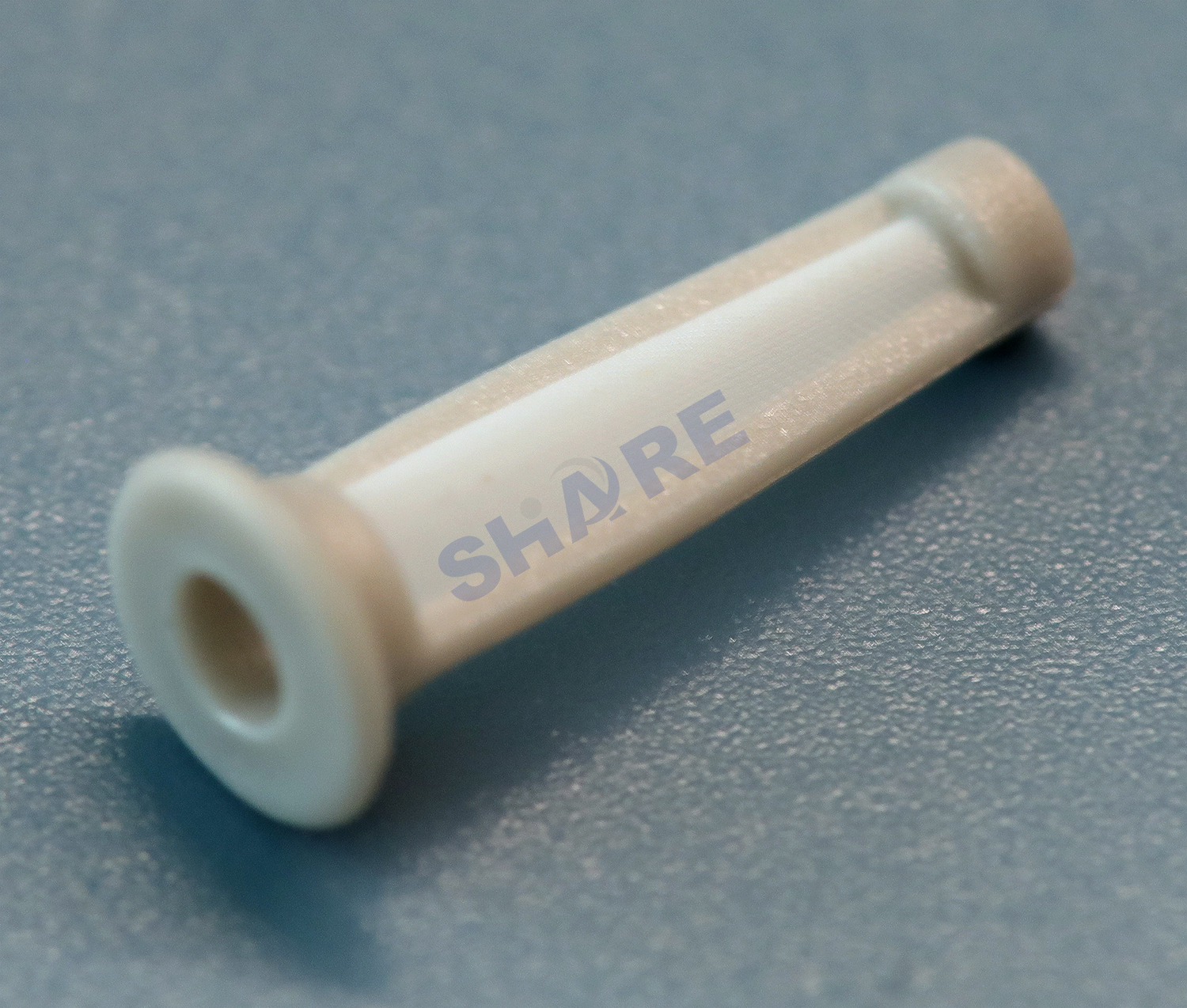

motorcycle fuel filter in-line fuel filter

Fuel Filters Materials Options

	Support rim material	PA6, PA66, PET, PP, ABS, brass, and other High- Performance Thermoplastics
	Filter media	Nylon mesh, polyester mesh, PP mesh, metallic mesh
	Micron rating	16μm - 1500μm
	Mesh parts fabrication	Laser cutting, sonic cutting, sonic welding
	Process	Injection moulding
	Specification	Custom

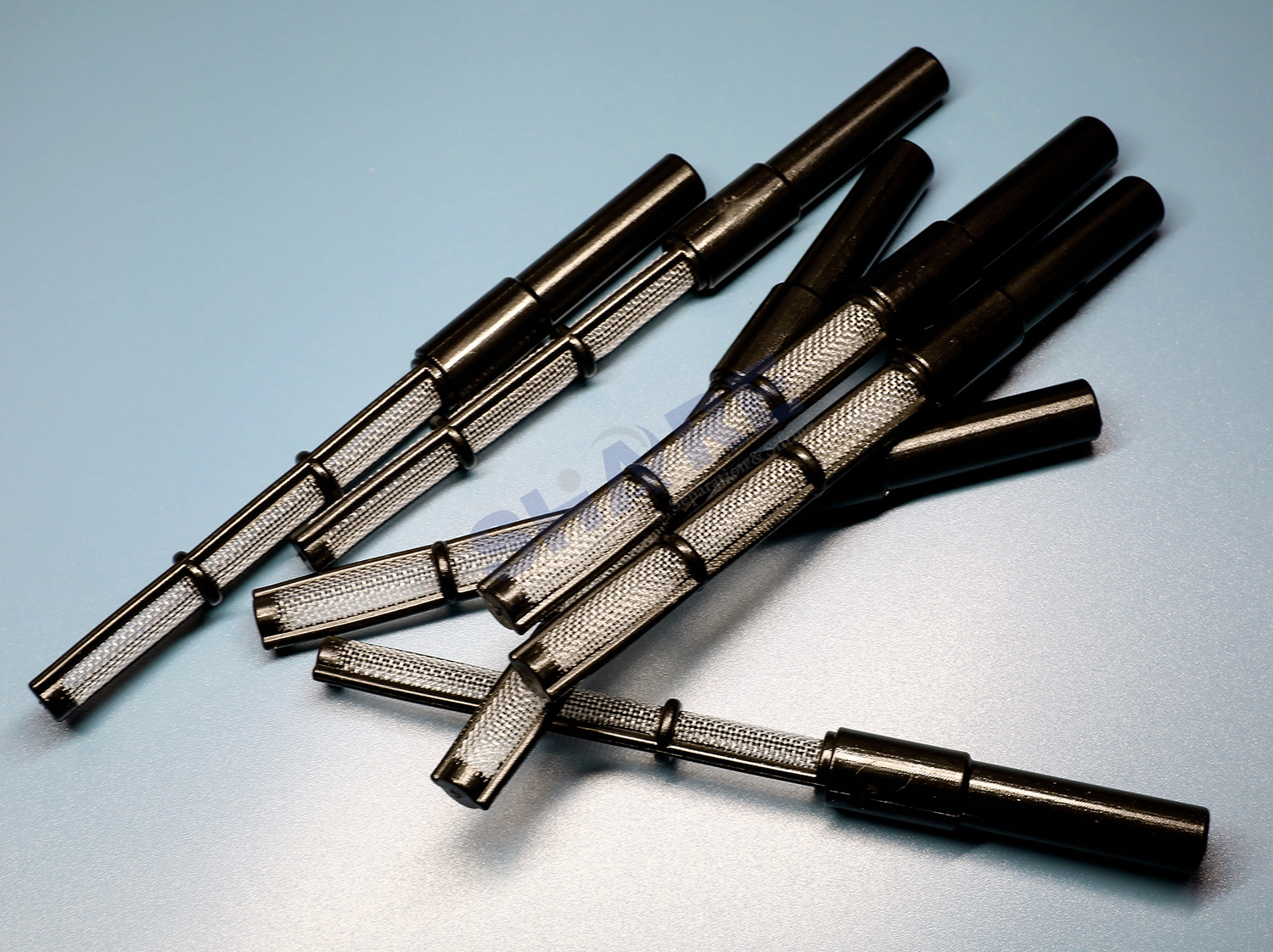

Share Filters Custom In-line Filters

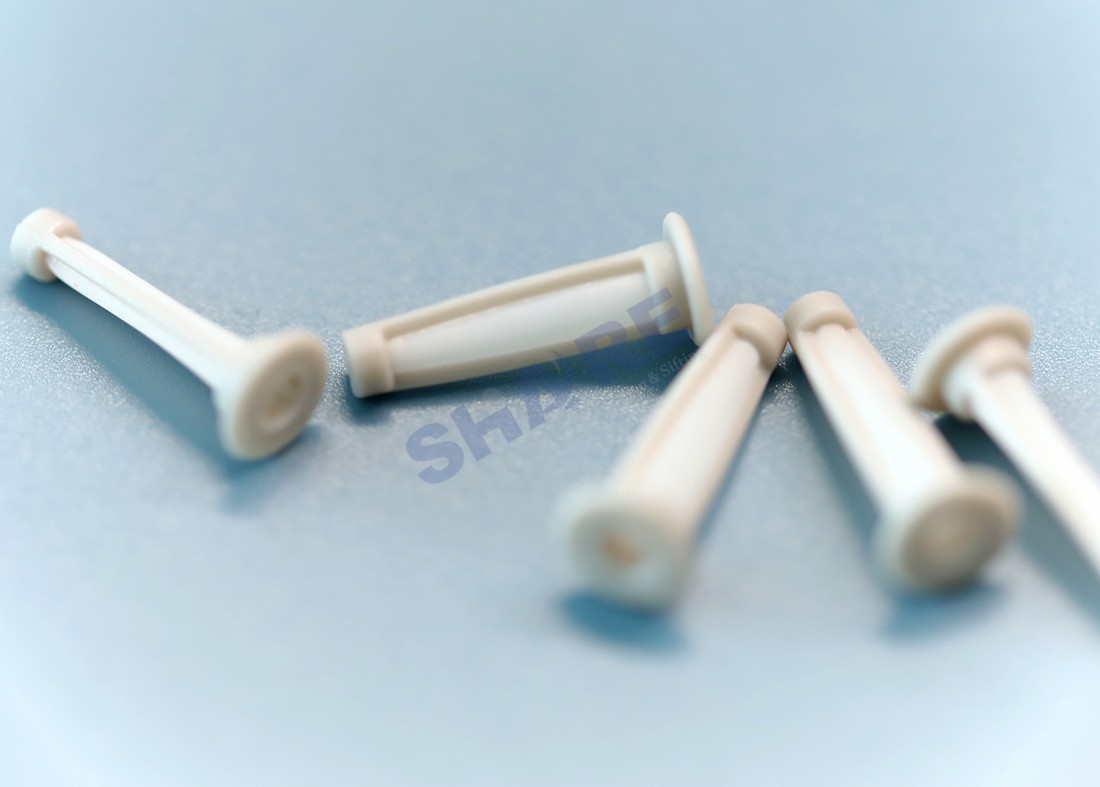

INLINE FILTER

Property of Plastic

Material	PA6	PA66	PET	PP	PEEK
Specific gravity (g/mm²)	1.14	1.14	1.38	0.91	1.3
Tensile strength(daN/mm²)	41-67	41-67	45-75	35-62	33-75
Relative strength at wet conditions(%)	89-90	85-90	100	100	100
Elongation at break (%)	20-35	20-35	15-30	20-50	20-40
Moisture absorption at 20°C / 65% r.h. (%)	3.5-4	3.5-4	0.4	0	0.1
Melting point (°C)	210-220	260-268	250-260	165-175	334
Softening point (°C)	-	-	220-240	140-155	300
Working temperature dry (°C)	-	-	-75 to +150	-30 to +90	up to 250
Stability to light	poor	poor	poor	poor	good
Atmospheric influence	-	-	none	none	none
Abrasion resistance	good	good	limited	limited	good
Acid resistance	limited-poor	limited-poor	good	good	good
Alkaline resistance	good	good	limited	good	good
Stability to solvents	limited	limited	good	good	good

How To Select the Right Filter Media?

You can follow these points.

Opening size or the size of the particle you need to filter
Mesh material (consider the working condition)
Mesh thread diameter, mesh thickness
Opening area

Mesh count(n/cm), (n/in)

The mesh count stands for the number of openings per inch.

Mesh opening (w), (μm)

The mesh opening w is the distance between two adjacent warp or weft thread.

Thread diameter (d), ( μm)

The thread diameter is measured on the thread before weaving.

Open area (%)

The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area.

Filter Mesh

filter mesh

PA(nylon) Filter Mesh Specification

Ref. No.	Mesh Count		Thread Diam.	Mesh Opening	Opening Area
	mesh/cm	mesh/inch	µm	µm	%
JPP5	5	12	500	1500	56
JPP6	6	16	400	1267	58
JPP7	7	18	350	1079	57
JPP8	8	20	350	900	52
JPP9	9	24	250	860	60
JPP10	10	25	300	700	49
JPP12	12	30	250	583	49
JPP12	12	30	300	533	41
JPP14	14	35	300	414	34
JPP16	16	40	200	425	46
JPP16	16	40	250	375	36
JPP20	20	50	150	350	49
JPP20	20	50	200	300	36
JPP24	24	60	150	267	41
JPP28	28	70	120	237	44
JPP30	30	76	120	213	41
JPP32	32	80	100	213	46
JPP36	36	90	100	178	41
JPP40	40	100	100	150	36
JPP43	43	110	80	152	43
JPP48	48	120	80	130	38
JPP56	56	140	60	120	44
JPP59	59	150	60	110	42
JPP64	64	160	60	100	37
JPP72	72	180	50	90	41
JPP80	80	200	50	75	36
JPP100	100	250	40	60	36
JPP120	120	305	40	43	25
JPP130	130	330	40	37	23
JPP140	140	355	30	38	33.7
JPP150	150	381	30	34	30.25
JPP165	165	420	30	28	20.7
JPP180	180	460	30	25	19.5
JPP200	200	510	30	16	10.2

About Share Filters

Share Filters has over 20 years of experience developing and manufacturing filter mesh and custom product solutions for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.

Share Filters Productions Application


Automotive	Healthcare	Appliances	Beverage	Chemical	Environment
