150 170 210 Micron Nylon Filter Mesh For Paint And Coating
Filtration
In paint filtration, numerous solutions exist, yet they often fall
short in terms of effectiveness, whether from a technical or
environmental standpoint. The current state of the market is being
shaped by the escalating cost per kilogram of technical paints,
prompting industry participants to seek waste-free industrial
filtration alternatives. As new application methods for technical
paints emerge, the need for exceptionally fine filtration becomes
increasingly crucial. In response to these evolving technical and
environmental requirements, Share Filters presents a comprehensive
selection of filters, each equipped with distinct advantages
tailored to meet customs' demands.

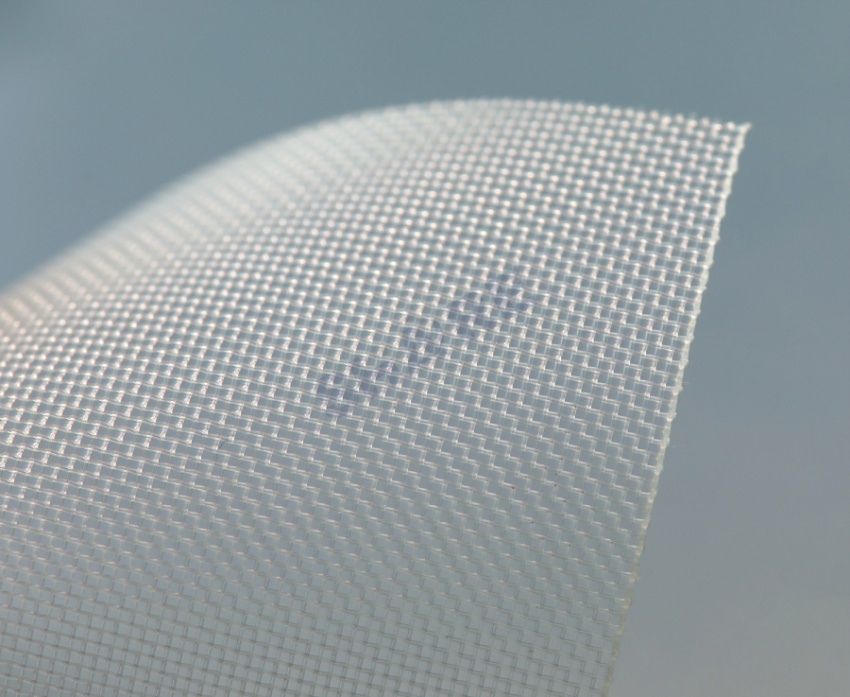

 | The Advantage Properties of Nylon Filter Mesh: • High tensile strength • Precise and even mesh opening • Light weight • Elasticity and flexibility • Good resistance to alkalis • Temperatures up to 100°C • Hydrophilic • Soft, smooth feeling • Easy cutting, dyeing, and cleaning |
Nylon Filter Mesh Specification Options
| Yarn | Monofilament (Single Filament), Multi-filament |
| Yarn Diameter | From 38 micron to 600 micron |
| Mesh Opening | From 3 micron to 2000 micron |
| Open Area | From 10% to 60% |
| Weave Type | Plain Weave, Twill Weave and Satin Weave |
| Treatment | Washing, Heat-setting, Calendaring, Water-repellent |
| Size | Can slit or cut in custom dimension |
We're a trusted provider of precision injection-molded plastic
parts with mesh filters for critical practices. There are many ways
to make a filtration product. Share Filter Can Offer the Nylon Filter Mesh in Different Types to
meet customs' Painting and Coating Filtration demands.
Nylon Filter Mesh in Rolls
The width of nylon filter mesh rolls can be in 100cm, 127cm, 150cm,
160cm, 175cm, 183cm, 365cm or other custom width.
Length can be 30m, 50m, 70m, or other custom length.
Nylon Filter Mesh in Narrow Strips
Share Filters ultrasonic slitting is also used for manufacturing
fabric strips and produces a closed edge with very little material
build up at the edge.
Nylon Filter Mesh in Cutted Shapes.
Our cutting method include Laser cutting, Cold cutting, Hot
cutting, Slitting, Punching. Professional cutting using custom made
tools that will not damage the materials.
Nylon Filter Mesh In Tubes
Sonic welding are accurate, clean. Lapping welding strength to some
degree.

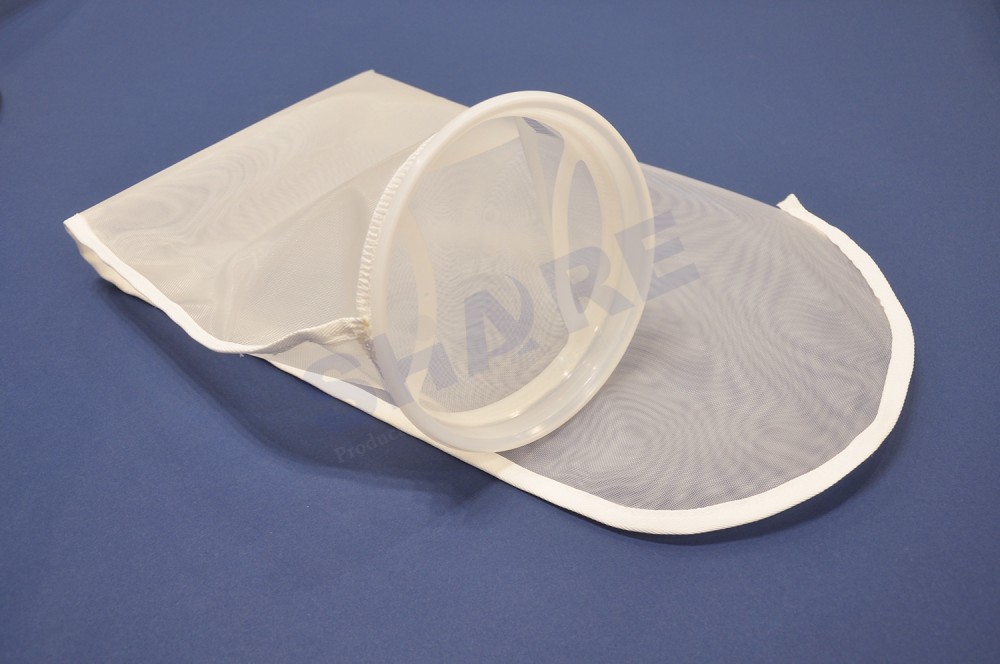

Custom Nylon Filter Mesh Bags
For paint filtration operations, Share Filters has standard filter
bags with galvanized steel or plastic rings, which are sewn or
welded, made of regenerable monofilament filter cloth from 3 micron
to 2000 microns or felt from 0.5 microns to 200 microns.
Mesh Insert Plastic Injection Molded Filters
Our injection moulded filters products consist of a synthetic
filter mesh held in a polymer plastic frame, allowing for a more
robust part/product giving more reliability and longevity in its
use.
PA(nylon) Filter Mesh Specification For Paint and Coating
| Ref. No. | Mesh Count | Thread Diam. | Mesh Opening | Opening Area |
| mesh/cm | mesh/inch | µm | µm | % |
| JPP5 | 5 | 12 | 500 | 1500 | 56 |
| JPP6 | 6 | 16 | 400 | 1267 | 58 |
| JPP7 | 7 | 18 | 350 | 1079 | 57 |
| JPP8 | 8 | 20 | 350 | 900 | 52 |
| JPP9 | 9 | 24 | 250 | 860 | 60 |
| JPP10 | 10 | 25 | 300 | 700 | 49 |
| JPP12 | 12 | 30 | 250 | 583 | 49 |
| JPP12 | 12 | 30 | 300 | 533 | 41 |
| JPP14 | 14 | 35 | 300 | 414 | 34 |
| JPP16 | 16 | 40 | 200 | 425 | 46 |
| JPP16 | 16 | 40 | 250 | 375 | 36 |
| JPP20 | 20 | 50 | 150 | 350 | 49 |
| JPP20 | 20 | 50 | 200 | 300 | 36 |
| JPP24 | 24 | 60 | 150 | 267 | 41 |
| JPP28 | 28 | 70 | 120 | 237 | 44 |
| JPP30 | 30 | 76 | 120 | 213 | 41 |
| JPP32 | 32 | 80 | 100 | 213 | 46 |
| JPP36 | 36 | 90 | 100 | 178 | 41 |
| JPP40 | 40 | 100 | 100 | 150 | 36 |
| JPP43 | 43 | 110 | 80 | 152 | 43 |
| JPP48 | 48 | 120 | 80 | 130 | 38 |
| JPP56 | 56 | 140 | 60 | 120 | 44 |
| JPP59 | 59 | 150 | 60 | 110 | 42 |
| JPP64 | 64 | 160 | 60 | 100 | 37 |
| JPP72 | 72 | 180 | 50 | 90 | 41 |
| JPP80 | 80 | 200 | 50 | 75 | 36 |
The Process Filter Mesh Production
About Us
Share has over 20 years of experience developing and manufacturing
filter mesh and custom product solutions for our customer's screen
and filtration needs. We can offer the filter mesh and filter
components services including slitting, cutting, welding, sewing
and injection molding. Our customer base comes from a wide variety
of industries including – Automotive, Home appliances, Food and
beverage, Milling, Medical, Life Science and laboratory,
Electronical as well as more general engineering, giving us a
wealth of experience in many areas.
