100, 75, 50, 25 Micron Polyester Filter Mesh For Water Filtration
In Food Processing
The quality of the water used for bakery and food processing has
been of increasing interest over the last few years. Water is used
in many ways: for washing, for cooking or cleaning installations,
it can also be incorporated into preparations at different stages.
water in the food industry must meet very precise standards,
hygiene and purity levels. In food processing, water filtration is
crucial to ensure the quality and safety of the final products.
Polyester filter mesh is used in filtration systems to remove
impurities, particles, and contaminants from water. It effectively
captures solid particles, sediments, and other suspended matter,
leading to cleaner and clearer water.
Share Filters' polyester filter mesh is available in various micron
ratings, allowing for precise filtration based on the specific
requirements of the water filtration in food processing
application.
Share Filters Polyester Filter Mesh Options for Water Filtration in
Food Processing
| Yarn | Monofilament (Single Filament) |
| Mesh Opening | From 25 micron to 100 micron |
| Thread Diameter | From 34 micron to 64 micron |
| Open Area | From 13.9% to 38.7% |
| Weave Type | Plain Weave, Twill Weave |
| After Treatment | Washing, Heat-setting, Calendaring, Water-repellent, etc |
| Size | Can slit or cut in custom dimension |
| Colour | White, or customize |
Polyester Filter Mesh
Polyester Mesh Filter Bag
The Advantage of Polyester Filter Mesh:
 | *High strength and durability *Excellent dimensional stability *Hydrophobic surface *Resistance to acids, corrosion, heat/fire, mold/mildew staining,
ultraviolet light, and wear *Easy sewing and cleaning requirements |
Properties of Polymers
| Material | PA6 | PA66 | PET | PP |
| Specific gravity (g/mm²) | 1.14 | 1.14 | 1.38 | 0.91 |
| Tensile strength(daN/mm²) | 41-67 | 41-67 | 45-75 | 35-62 |
| Relative strength at wet conditions(%) | 89-90 | 85-90 | 100 | 100 |
| Elongation at break (%) | 20-35 | 20-35 | 15-30 | 20-50 |
| Moisture absorption at 20°C / 65% r.h. (%) | 3.5-4 | 3.5-4 | 0.4 | 0 |
| Melting point (°C) | 210-220 | 260-268 | 250-260 | 165-175 |
| Softening point (°C) | - | - | 220-240 | 140-155 |
| Working temperature dry (°C) | - | - | -75 to +150 | -30 to +90 |
| Stability to light | poor | poor | poor | poor |
| Atmospheric influence | - | - | none | none |
| Abrasion resistance | good | good | limited | limited |
| Acid resistance | limited-poor | limited-poor | good | good |
| Alkaline resistance | good | good | limited | good |
| Stability to solvents | limited | limited | good | good |
| Hydrolysis resistance | good | good | limited | good |
How to select the right filter mesh? You can follow these points.
- Mesh size or the size of the particle you need to filter
- Mesh material (consider the working condition)
- Mesh thread diameter, Mesh thickness
- Opening area
Polyester Filter Mesh Datasheet for Water Filtration
| Mesh of Count | Type of Weave | Thread Diameter (microns) | Mesh Opening (microns) | Overall Fabric Thickness (microns) | % Open are | Theoretical Ink Deposit (cm³/ m²) | Mesh Weight (g/sm²) |
| 30/76-120W | PW | 120 | 211 | 212 | 40.2 | 82.4 | 101 |
| 32/83-70W | PW | 70 | 240 | 117 | 58.7 | 68.7 | 37 |
| 32/83-100W | PW | 100 | 209 | 166 | 44.5 | 72.1 | 75 |
| 36/92-90W | PW | 90 | 183 | 147 | 43.3 | 64.9 | 68 |
| 36/92-100W | PW | 100 | 174 | 162 | 39.1 | 62.6 | 84 |
| 40/103-80W | PW | 80 | 166 | 133 | 44.1 | 58.6 | 60 |
| 43/110-80W | PW | 80 | 149 | 130 | 40.8 | 53.0 | 64 |
| 45/115-80W | PW | 80 | 138 | 130 | 38.7 | 50.3 | 67 |
| 48/123-80W | PW | 80 | 122 | 130 | 34.5 | 44.8 | 72 |
| 48/123-55W | PW | 55 | 151 | 90 | 52.8 | 47.5 | 34 |
| 51/131-70W | PW | 70 | 121 | 114 | 38.1 | 43.5 | 58 |
| 54/137-64W | PW | 64 | 115 | 103 | 38.7 | 39.8 | 51 |
| 61/156-64W | PW | 64 | 90 | 101 | 30.1 | 30.4 | 58 |
| 68/175-55W | PW | 55 | 85 | 87 | 33.5 | 28.4 | 48 |
| 68/175-64W | PW | 64 | 78 | 98 | 28.2 | 27.6 | 65 |
| 71/180-55W | PW | 55 | 79 | 90 | 31.5 | 28.4 | 51 |
| 77/195-48W | PW | 48 | 77 | 80 | 35.0 | 28.0 | 42 |
| 77/195-55W | PW | 55 | 67 | 87 | 26.5 | 23.3 | 55 |
| 82/206-48W | PW | 48 | 68 | 79 | 30.8 | 24.3 | 44 |
| 90/230-40W | PW | 40 | 68 | 65 | 37.6 | 24.4 | 33 |
| 90/230-48W | PW | 48 | 55 | 78 | 24.6 | 19.2 | 49 |
| 100/255-40W | PW | 40 | 57 | 64 | 32.5 | 21.1 | 37 |
| 110/280-34W | PW | 34 | 54 | 55 | 35.2 | 19.3 | 31 |
| 110/280-40W | PW | 40 | 47 | 65 | 26.6 | 17.3 | 40 |
| 120/305-34W | PW | 34 | 45 | 55 | 29.6 | 16.3 | 34 |
| 120/305-40W | PW | 40 | 37 | 64 | 20.1 | 13.0 | 44 |
| 130/330-34W | PW | 34 | 40 | 55 | 26.9 | 14.3 | 37 |
| 140/355-34W | PW | 34 | 31 | 55 | 19.4 | 10.6 | 39 |
| 150/380-34W | PW | 34 | 23 | 55 | 12.1 | 6.6 | 42 |
| 165/420-34W | PW | 34 | 23 | 62 | 13.9 | 8.6 | 46 |
Factory Capabilities
Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh,
polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to filter mesh ribbons,
filter mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' Filtration demands.
Filter Mesh Stock in Rolls
The width of filter mesh rolls can be in 100cm, 127cm, 150cm,
165cm, 175cm, 183cm, 365cm or
other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.
Filter Mesh Slitted in Narrow Ribbons
Our ribbons are used in a multitude of applications such as
automotive filters, appliances filters, industrial filters,
electronic devices, diagnostic test strips, perfusion and
transfusion filters in healthcare. Share Filters ultrasonic
slitting is also used for manufacturing fabric strips and produces
a closed edge with very little material build up
at the edge.

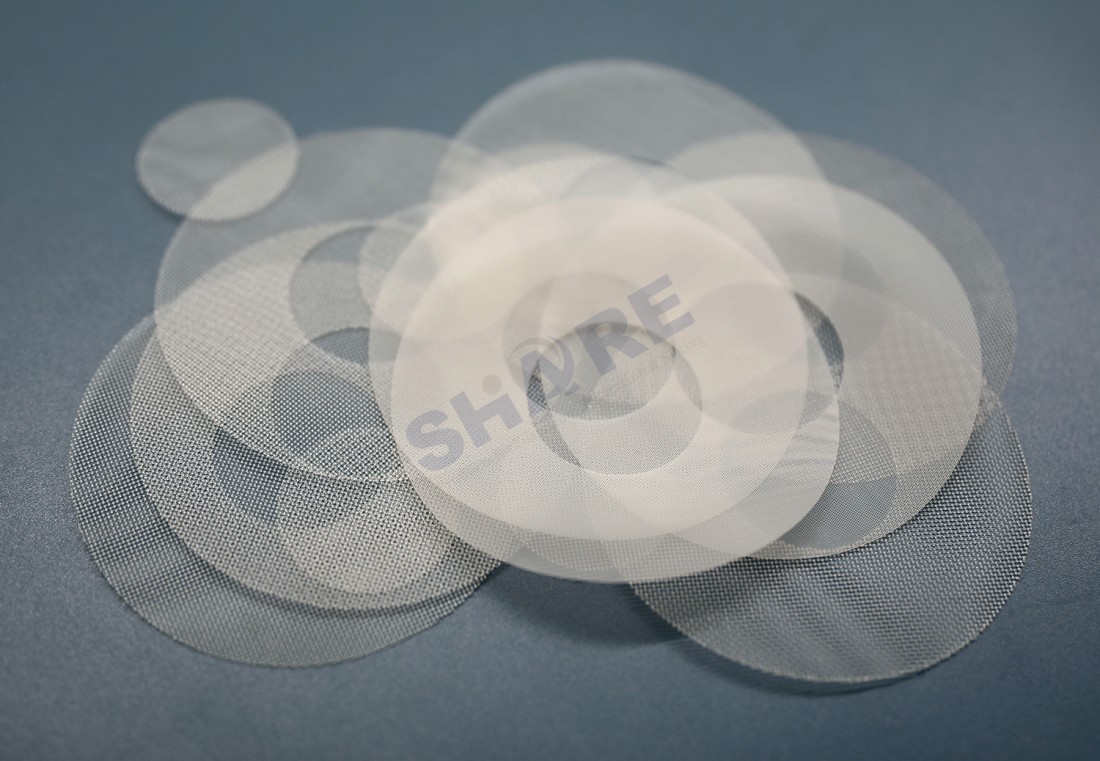

Filter Mesh in Cut Shapes.
Share Filters cutting method include Laser cutting, Cold cutting,
Hot cutting, Slitting, Punching. Professional cutting
using custom made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that
are specific to the customer’s design needs
Welded MeshTubes
Sonic welding are accurate, clean. The tubes are equipped with one or two functional seams, which
provide
the necessary seam strength.
Custom Filter Bags
Rosin press bag
Biopsy bag
Standard Filter Bags
A bag filter system is one of the most popular filtration methods
for liquid process applications. It provides a
versatile, cost economical and consistent filtration system
suitable for a broad range of applications from small
batch operations to bulk processing. Mesh filter bag from 3 micron to 2000 microns or felt from 0.5 microns to
200 microns. Custom bag is also accepted.
Mesh Insert Plastic Injection Molded Filters
Our injection moulded filters products consist of a filter mesh
held in a polymer plastic frame,
allowing for a more robust part/product giving more reliability and
longevity in its use.
About Us
Share Filters has over 20 years of experience developing and
manufacturing filter mesh and custom product solutions
for our customer's screen and filtration needs. We can offer the
filter mesh and filter components services including
slitting, cutting, welding, sewing and injection molding. Our
customer base comes from a wide variety of industries
– Automotive, Home appliances, Food and beverage, Milling, Medical,
Life Science and laboratory, Electronical
as well as more general engineering, giving us a wealth of
experience in many areas.
Manufacture Process of Filter Mesh
Application of Share Filters Products
 |  |  |  |  |
| Automotive | Healthcare | Appliance | Food & Beverage | Environment |
