Filter Mesh Ribbons Nylon Filter Mesh Narrow Strips For Automotive Filter

Ribbons are often the basis for various further processing steps in numerous manufacturing processes. The creation of ribbons is made possible through the utilization of a diverse array of cutting equipment, including both heat and ultrasonic methods. These cutting techniques enable efficient and precise production of ribbons with different sizes and shapes to meet specific requirements.

Filter mesh ribbons used for automotive filters are specialized components designed to trap and separate contaminants from air or fluid streams in automotive applications. These ribbons are typically made of high-quality materials such as stainless steel or synthetic mesh, which offer excellent filtration efficiency and durability.

Filter Mesh Ribbon Specifications Option

	Product Name	Woven filter mesh ribbon
	Color	White, yellow and other colour
	Material	Nylon mesh, polyester mesh
	Certificate	SGS
	Weave type	Plain woven
	Mesh Opening	16-1500μm
	Fabric Width	4mm-700mm
	Roll length	30-100m or custom length
	Mesh Count	12 - 510 mesh
	Samples supply	1m free.

When selecting filter mesh ribbons for automotive filters, it is essential to consider factors such as the required filtration level, operating conditions, and compatibility with the filter housing. Consulting with us can help in choosing the right filter mesh ribbon for a specific automotive application.

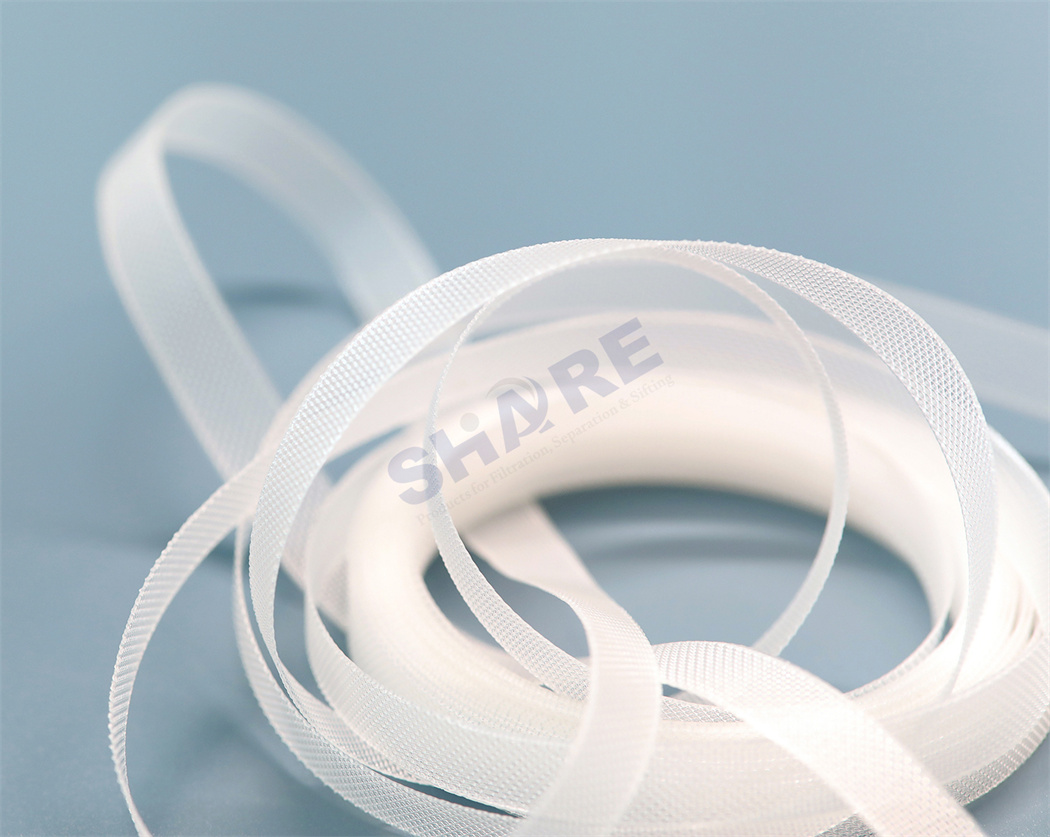

Nylon Filter Mesh Ribbon

Polyester Filter Mesh

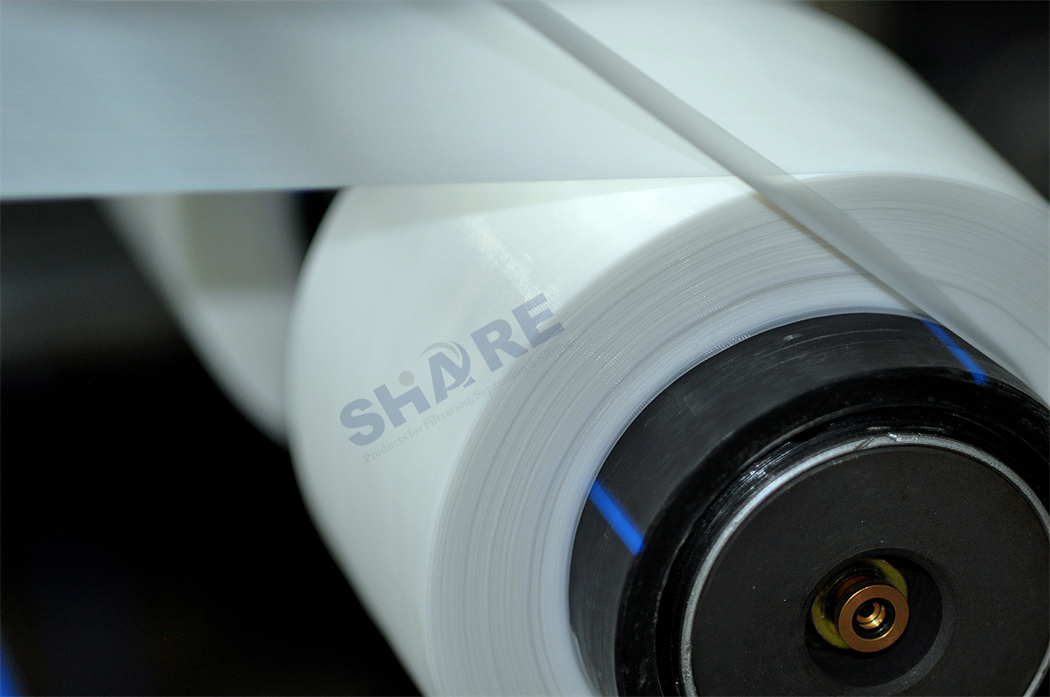

Two Main Slitting Process

Slitting Process	Opening	Mini width	Max width	Tolerance	Edge
Ultrasonic Slitting	< 280 µm	4 mm	700 mm	±0.1~0.3 mm
Heat Slitting		12 mm	1600 mm	±0.3~3.0 mm

Advantage of Slitting Mesh Ribbons:

• Get fixed width of filter mesh
• Edges without fraying
• Clean and smooth edges
• Can be applied in medical industry

​The Ultrasonic Slitting Machine

​

How to select the right filter mesh? You can follow these points

• Mesh size or the size of the particle you need to filter
• Mesh material (consider the working condition)
• Mesh thread diameter, Mesh thickness (consider the durability)
• Opening area

Nylon Filter Mesh Datasheet

About Share Filters

Share Filters has over 20 years of experience developing and manufacturing custom product solutions for our customer's screen and filtration needs. We can offer filter meshes filter components services including slitting, cutting, welding, sewing and mesh insert injection molding. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science, laboratory, Electronical, general engineering, giving us a wealth of experience in many areas.

Application of Share Filters

Automotive	Healthcare	Appliances	Beverage	Chemical

Introduction:

SHARE GROUP LIMITED (hereinafter short for SHARE) is an enterprise set up in 1983, producing and supplying filter fabrics back then. After more than 30 years of fast development, SHARE has successfully developed and evolved into a big group company owning three production units, producing Filter Clothes, Printing Mesh and Plastic Filter Parts separately, however, Sales, After-service and Accounting are maintained and operated under the name of SHARE.

What SHARE offers:

• Industrial Filter Fabrics: Polyester Filter Cloth, Polyamide Filter Cloth, Polypropylene Filter Cloth, Airslide Fabrics, Polyester Filter Mesh, Polypropylene Filter Mesh, Nylon Filter Mesh, Stainless Steel Filter Mesh, Dust Collection and Liquid Filtration Felts and various kinds of Standard and Customized Liquid Filter Bags, Dust Collector Filter Bags made of Filter Mesh, Filter Cloth and Filter Felts.
• Silk Printing Mesh: Mono-filament Polyester Printing Mesh, Multifilament Polyester Printing Mesh, Nylon Printing Mesh, Stainless Steel Printing Mesh
• Molded Filters: Insert/Over-molded Plastic Filters, Rubber-molded Filters

Where SHARE products applied:

• Industrial Filtration: Automotive, Chemical Processing, Cooking Oil/Food Processing, Ethanol, Mining Operation, Municial Waterworks, Oil and Gas, Power Plants, Pulp and Paper Mills, Vehicle Washing Systems.
• Silk Printing: Electronic (Printed Circuits, Membrane Swtiches and Dials, Touchscreen and Displays), Glass, Graphics, Plastics and Packaging, Textiles, Ceramic and Tiles Industry, Solar.
