    Synthetic Plastic Woven Filter Mesh For Sieving Training And Filtering

    Ask Lasest Price
    Brand Name : SHARE
    Model Number : Synthetic Smooth Filter Mesh
    Certification : SGS
    Price : USD1.00-USD3.50/meter
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 2000m/week
    Delivery Time : 7-20 days
    • Product Details
    • Company Profile

    Synthetic Plastic Woven Filter Mesh For Sieving Training And Filtering

    Synthetic Plastic Filter Mesh Ideal For Sieving, Training And Filtering


    Share's Synthetic filter mesh is a very versatile and reliable material to create products at a cost-effective and with a quick reproduction rate to allow you to quickly manufacture more and deliver your products on time and with a strong sense of quality.

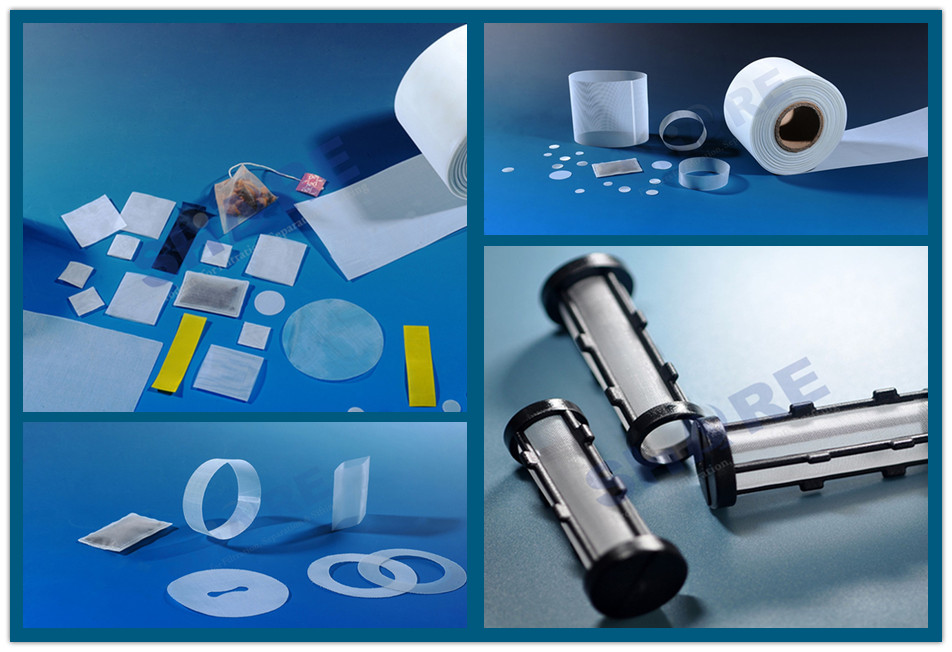

    Share has the facility to manufacture the synthetic filter mesh for many different sectors and uses, such as shape filters, tublar, medical uses, university lab, automotive filters, food filters, bags and lastic molded filter. Synthetic materials are quick and easy to produce. Share Filter has everything covered. Share can offer a start to finish service that will help you design your mesh product to fabrication and ready it for delivery.


    Services we can provide:slitting, cutting, sewing, welding and injection molding and other mesh fabrication.





    So if you need a reliable and professional synthetic filter mesh and related filter products supplier, then look no further than Share in China. Providing high-quality synthetic mesh products to worldwide at resonable cost.


    Contact us to get your project underway or if you would like to discuss what we can do for you with no obligation.


    Polyester Filter Mesh Datesheet:


    Mesh count

    (per cm/inch)

    Type of weave

    (tw or pw)

    Thread diameter (microns)Mesh opening (microns)Overall fabric thickness (microns)% Open areaTheoretical
    ink deposit (cm3/m2)
    Mesh Weight (gsm)
    8/20-300WPW30095056057.8323.5169
    10/25-260WPW26073949854.6272.0158
    12/30-140WPW14068825668.2174.755
    15/40-200WPW20046535348.6171.5141
    18/45-180wPW18037533045.5145.5128
    21/54-140WPW14033325049.0122.596
    24/60-120WPW12029421049.7104.381
    27/70-120WPW12024921045.395.091
    30/76-120WPW12021121240.282.4101
    32/83-70WPW7024011758.768.737
    32/83-100WPW10020916644.572.175
    36/92-90WPW9018314743.364.968
    36/92-100WPW10017416239.162.684
    40/103-80WPW8016613344.158.660
    43/110-80WPW8014913040.853.064
    45/115-80WPW8013813038.750.367
    48/123-80WPW8012213034.544.872
    48/123-55WPW551519052.847.534
    51/131-70WPW7012111438.143.558
    54/137-64WPW6411510338.739.851
    61/156-64WPW649010130.130.458
    68/175-55WPW55858733.528.448
    68/175-64WPW64789828.227.665
    71/180-55WPW55799031.528.451
    77/195-48WPW48778035.028.042
    77/195-55WPW55678726.523.355
    82/206-48WPW48687930.824.344
    90/230-40WPW40686537.624.433
    90/230-48WPW48557824.619.249
    100/255-40WPW40576432.521.137
    110/280-34WPW34545535.219.331
    110/280-40WPW40476526.617.340
    120/305-34WPW34455529.616.334
    120/305-40WPW40376420.113.044
    130/330-34WPW34405526.914.337
    140/355-34WPW34315519.410.639
    150/380-34WPW34235512.16.642
    165/420-34WPW34236213.98.646
