Customizable Thermoforming 3D Filter Mesh Shape 3um-1500um Conformal Stretchable Strainer

Ask Lasest Price
Brand Name :	Share Filters
Model Number :	Thermoforming 3D Filter Mesh Shape
Certification :	ISO, REACH
Price :	USD0.05-USD0.50/pc
Payment Terms :	T/T, L/C, D/P, Western Union, PayPay
Supply Ability :	20000pcs/day
Delivery Time :	5-15 days

Add to Cart

Product Details
Company Profile

Customizable Thermoforming 3D Filter Mesh Shape 3um-1500um Conformal Stretchable Strainer

Customizable Thermoforming 3D Filter Mesh Shape, 3um-1500um Conformal Stretchable Strainer

Share Filters stocks synthetic filter mesh with opening sizes ranging from 3 microns to 3233 microns, in nylon, polyester, polypropylene, polyethylene. While we stock large volumes of this product and sell it by rolls, widths for the rolled mesh range from a minimum of 100cm up to 365 cm. We also offer this mesh in custom sizes of cut pieces and customized 3D shape and welding of various of tubes.

Thermoforming is a versatile technique to fabricate stretchable and customizable 3D shape for a variety of sythetic filter mesh.

For more information about current available widths and for customized fabricated mesh, please email us for pricing. We strive to bring application-specific functionality to various industries by customizing our products. Please contact us if you have further questions about the customization options of nylon mesh filter.

Technical Data

Product name:	Thermoforming 3D mesh filter shape	Material options:	Nylon mesh, polyester mesh, PP mesh, PE mesh
Usage:	Directly using, or for mesh insert injection moulding	Feature:	Stretchable and conformal
Application:	Food & beverage, automotive, medical, chemical	Micron rating:	3μm -1500μm, other pore size
Process method:	Laser cutting, thermoforming	Shape:	Customize
Dimension:	Customize	Package:	Plastic bag, master carton

Product Details

Customizable Thermoforming 3D Filter Mesh Shape 3um-1500um Conformal Stretchable Strainer

Nylon Filter Mesh Datasheet

Fabric Number	Mesh Count		Thread Diameter	Mesh Opening	Open Area	Mesh Thickness	Weight
Fabric Number	Mesh Count		Thread Diameter	Mesh Opening	Open Area	Mesh Thickness	Weight
	n/cm	n/inch	μm	μm	%	μm	g/m2
PA 1079/57	7	18	350	1079	57	675	186
PA 900/52	8	20	350	900	52	685	212
PA 860/60	9	24	250	860	58	455	145
PA 700/49	10	25	300	700	49	576	195
PA 583/49	12	30	250	583	49	470	162
PA 533/41	12	30	300	533	41	585	234
PA 414/34	14	35	300	414	34	595	273
PA 425/46	16	40	200	425	46	370	139
PA 375/36	16	40	250	375	36	485	217
PA 350/49	20	50	150	350	49	375	98
PA 300/36	20	50	200	300	36	385	173
PA 267/41	24	60	150	267	41	285	117
PA 237/44	28	70	120	237	44	215	87
PA 213/41	30	76	120	213	41	225	94
PA 213/46	32	80	100	213	46	165	69
PA 178/41	36	90	100	178	41	178	78
PA 150/36	40	100	100	150	36	190	87
PA 152/43	43	110	80	152	42	135	60
PA 130/38	48	120	80	130	38	145	62
PA 120/44	56	140	60	120	44	85	44
PA 110/42	59	150	60	110	41	98	46
PA 100/37	64	160	60	100	38	105	50
PA 90/41	72	180	50	90	41	82	39
PA 75/36	80	200	50	75	36	90	43
PA 60/36	100	250	42	60	34	65	35
PA 42/25	120	305	42	42	24	75	42
PA 44/27	120	305	38	44	29	72	35
PA 42/25	120	305	38	42	25	67	35
PA 45/29	120	305	35	45	33	60	28
PA 55/42	120	305	30	55	40	52	20
PA 40/26	130	330	38	40	25	74	36
PA 42/30	130	330	35	42	29	62	30
PA 47/37	130	330	30	47	37	55	22
PA 32/20	140	355	38	32	21	68	36
PA 37/26	140	355	35	37	26	65	33
PA 38/28	140	355	30	38	33	53	25
PA 31/21	150	380	38	31	18	68	40
PA 35/27	150	380	30	35	29	57	26
PA 34/26	150	380	30	34	26	50	26
PA 30/25	165	420	30	30	25	59	28
PA 30/19	145	368	38	30	19	64	40
PA 25/21	180	460	30	25	21	60	31
PA 25/15	165	420	38	25	15	75	42
PA 20/16	200	508	30	20	16	65	34
PA 10/4.3	208	530	38	10	4.3	77	53
PA 8/3	220	560	38	8	3	78	56
PA 6/1.7	228	580	38	6	1.7	80	59
PA 3/1	236	600	38	3	1	85	61

Customizable Thermoforming 3D Filter Mesh Shape 3um-1500um Conformal Stretchable Strainer

Mesh count (n/cm), (n/in)

The mesh count stands for the number of openings per inch.

Mesh opening (w), (μm)

The mesh opening w is the distance between two adjacent warp or weft thread.

Thread diameter (d),( μm)

The thread diameter is measured on the thread before weaving.

Open area (%)

The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area

Share Filters Other Fabricated Filter Mesh Parts

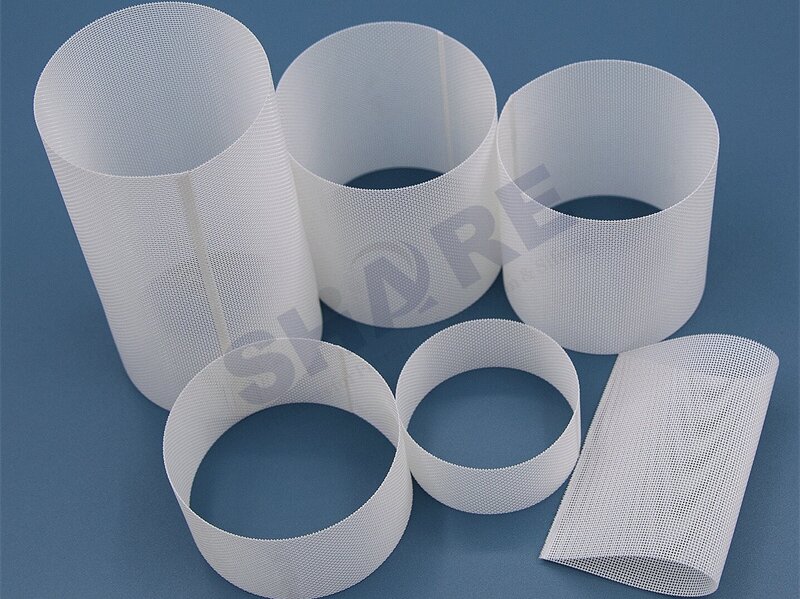

Slitted mesh ribbon	Mesh Disc	Mesh Shape	Mesh tube	Welded bag

Why Work With Share Filters ?

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.

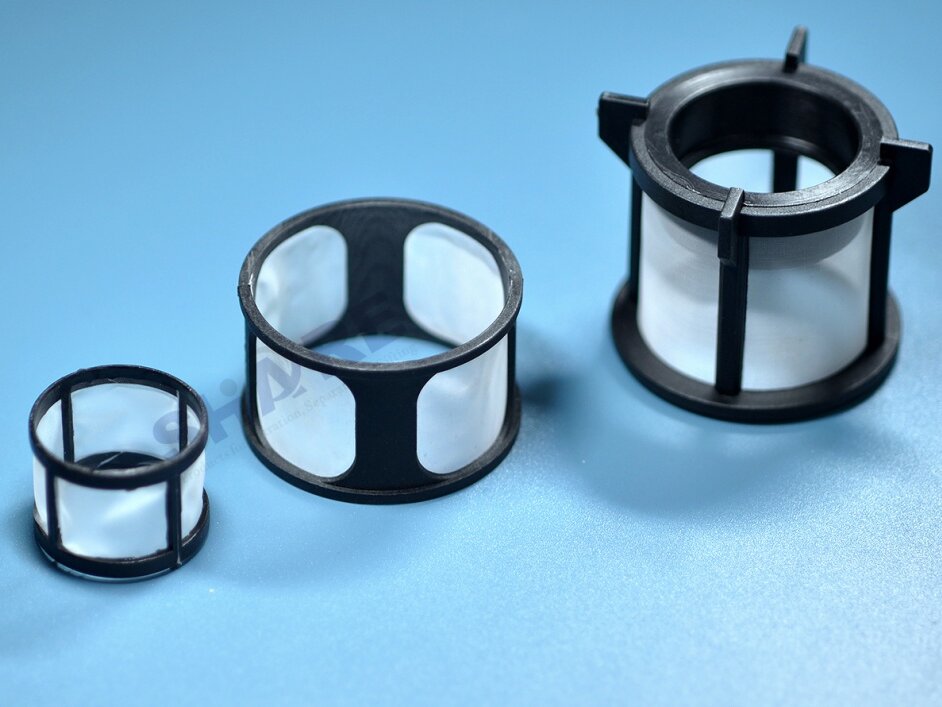

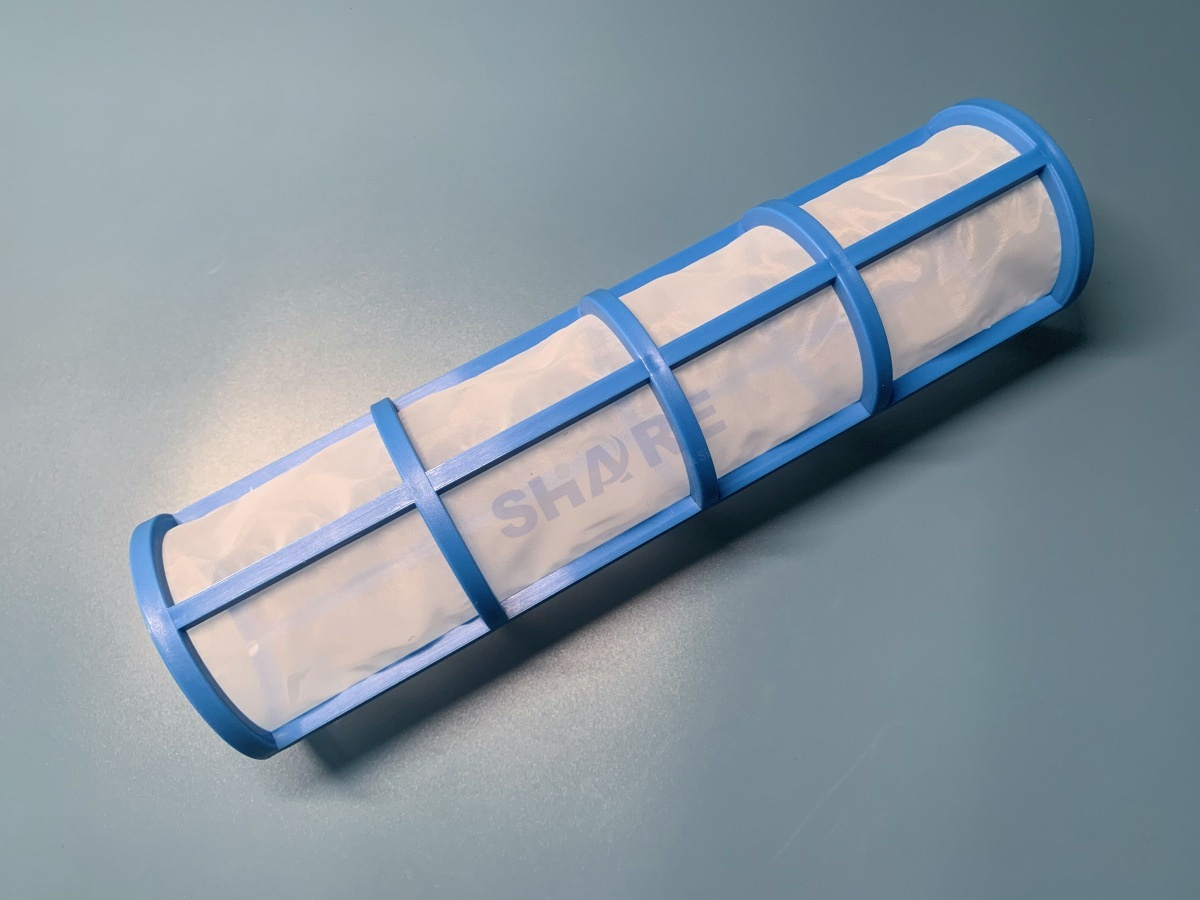

We're the suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

Customizable Thermoforming 3D Filter Mesh Shape 3um-1500um Conformal Stretchable Strainer

Factory Capabilities

Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to mesh ribbons, mesh shapes , discs, mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.


Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape.	Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.	Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials.

Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.	Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.	Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.

Application of Industries

Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.


Automotive	Laboratory	Appliance	Food & Beverage	Agriculture	Power tool

Packing and Delivery

Customizable Thermoforming 3D Filter Mesh Shape 3um-1500um Conformal Stretchable Strainer

Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

• Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS

• Large quantities is better by sea which is cost economic. Sometimes by air if urgent in need.

• SF EXPRESS usually to Hongkong and Southeast Asia countries.

• Samples are always sent via express commonly.

Customizable Thermoforming 3D Filter Mesh Shape 3um-1500um Conformal Stretchable Strainer

Contact Us

Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.

Please connect with us now so we can learn more about your application and design specifications!

FAQ

Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.

Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.

Which Port You Ship?

Ningbo port.

Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.

What's Your Payment Term ?

T/T, LC, PayPal, and others.

What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.

What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.

Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.

How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
