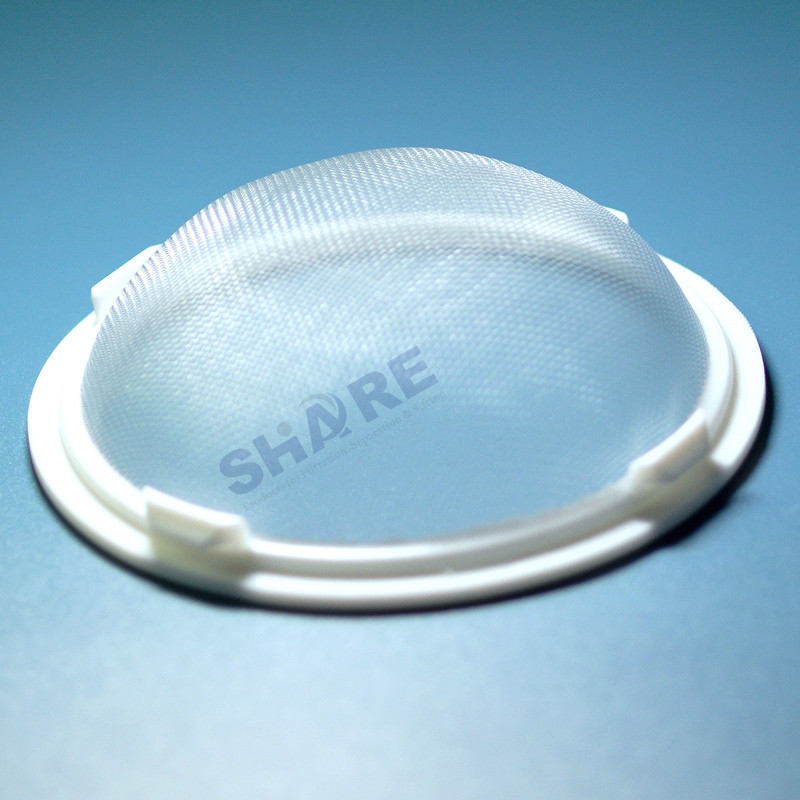

Mesh insert molding is a process of injecting melted plastic into a
mold that has mesh inserts inside. The inserts are our precision
filter mesh in PA, PES, PP, PE, creating a flexible filter with
accurate openings. The plastic fills the mold and covers the mesh,
and then combine a single product with a plastic outside and mesh
filter inside.
SHARE has years of experience in manufacturing insert injection
molded filters for our proprietary in line strainers. We have
expanded our insert injection molding capabilities to allow us to
design and manufacture a wide range of insert molded custom
products. Most of these products combine cylinders or flat blanks
with thermoplastics or thermoplastic elastomers (TPE's). These
products offer significant advantages over metal on mesh, welded or
soldered designs. These components are made by taking a
prefabricated mesh form and putting it into an injection mold. The
mold closes around the mesh and plastic is injected to create a
gasket and/or a support cage. Mesh sizes range from 3 microns
openings up to 2500 microns openings. Our experienced engineering
staff will assist you in the design of a component that will
achieve your desired results.
Our engineers can help customers with their application at every
stage of development, from designing custom filters to choosing the
right materials, making molds with tight tolerances, creating
prototypes quickly, testing to make sure everything works, and
producing filters in both small and large quantities. With our
support, you can have confidence in the quality and performance of
your filters.
Specification
| Item Name | PP Molded Tubular Plastic Filters for Medical and Life Science |
| Manufacturer | Taizhou Share Filters Co., Ltd |
| Brand | SHARE FILTERS |
| Commonly Used Housing Material | ABS, PP, HDPE, POM, PA66, PA6+GF, TPU, PBT |
| Commonly Used Filter Material | 1. Synthetic Filter Meshes (Polyamide Filter Mesh, Polyester Filter
Mesh, Polypropylene Filter Mesh, Polyethylene Filter Mesh)
2. Metallic Filter Mesh (Stainless Steel Filter Mesh, Brass Filter
Mesh, other alloy filter meshes)
3. Other filter fabrics and filter felts. |
| Housing Color | Black white blue yellow red and any Pantone colors |
| Micron Rating | 2500 microns down to 0.5 microns |
| Product Size | Customizable according to customer needs and applications |
| Sample | Available upon your request |
| Processing Technology | Insert injection molding |
| Quality Control | ISO 9001. Visual inspection, optical or pressure sensitive
equipment and automated 3D image-inspection equipment, self-inspections, spot inspections and final inspections at every
stage of the process |
| Feature and benefits | 1. Many years of application expertise and manufacturing experience
to support customers
(including custom design, material selection, tight tolerance mold
manufacture, rapid prototyping, validation testing and high or low
volume manufacturing)
2. Wide range of molded materials and variety of filter media
available
3. Consistency and quality, reduced cost and maintenance, ease of
installation and replacement
4. Adaptable to any system configuration
5. Long life in aggressive environments
6. Environmentally friendly (fully recyclable) |
| Applications | 1. Home appliance
2. Automotive
3. Irrigation
4. Hydraulic
5. Medical and health
6. Food and beverage
7. Electronics and aerospace
8. Industries requiring liquid filtration, dust collection and
sifting
And many more |

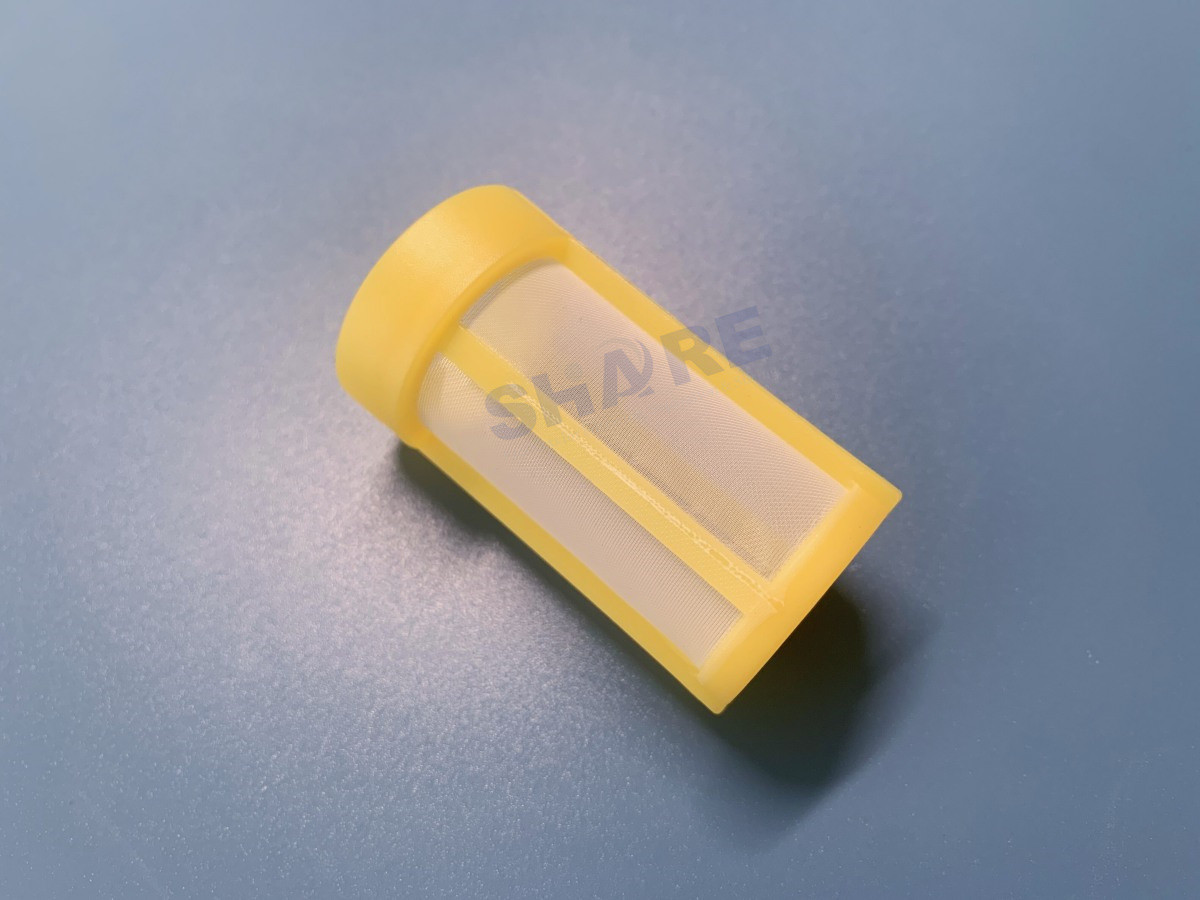

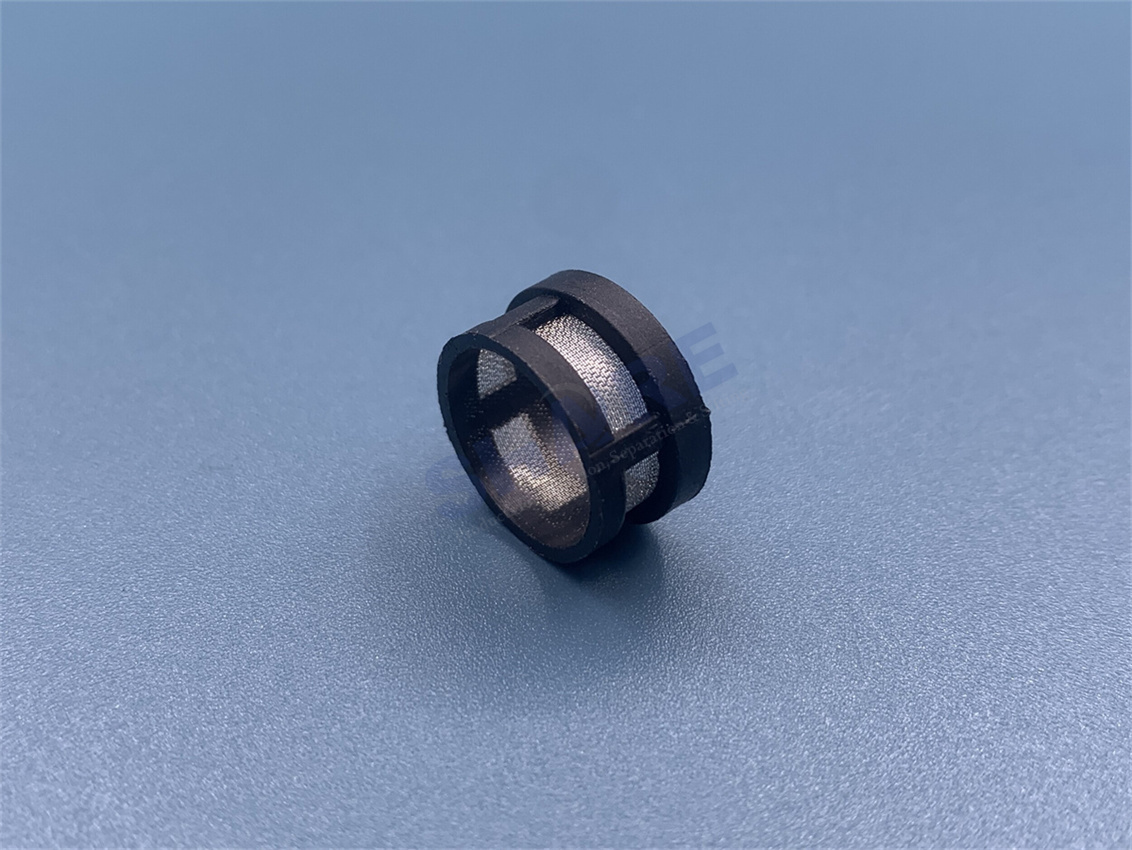

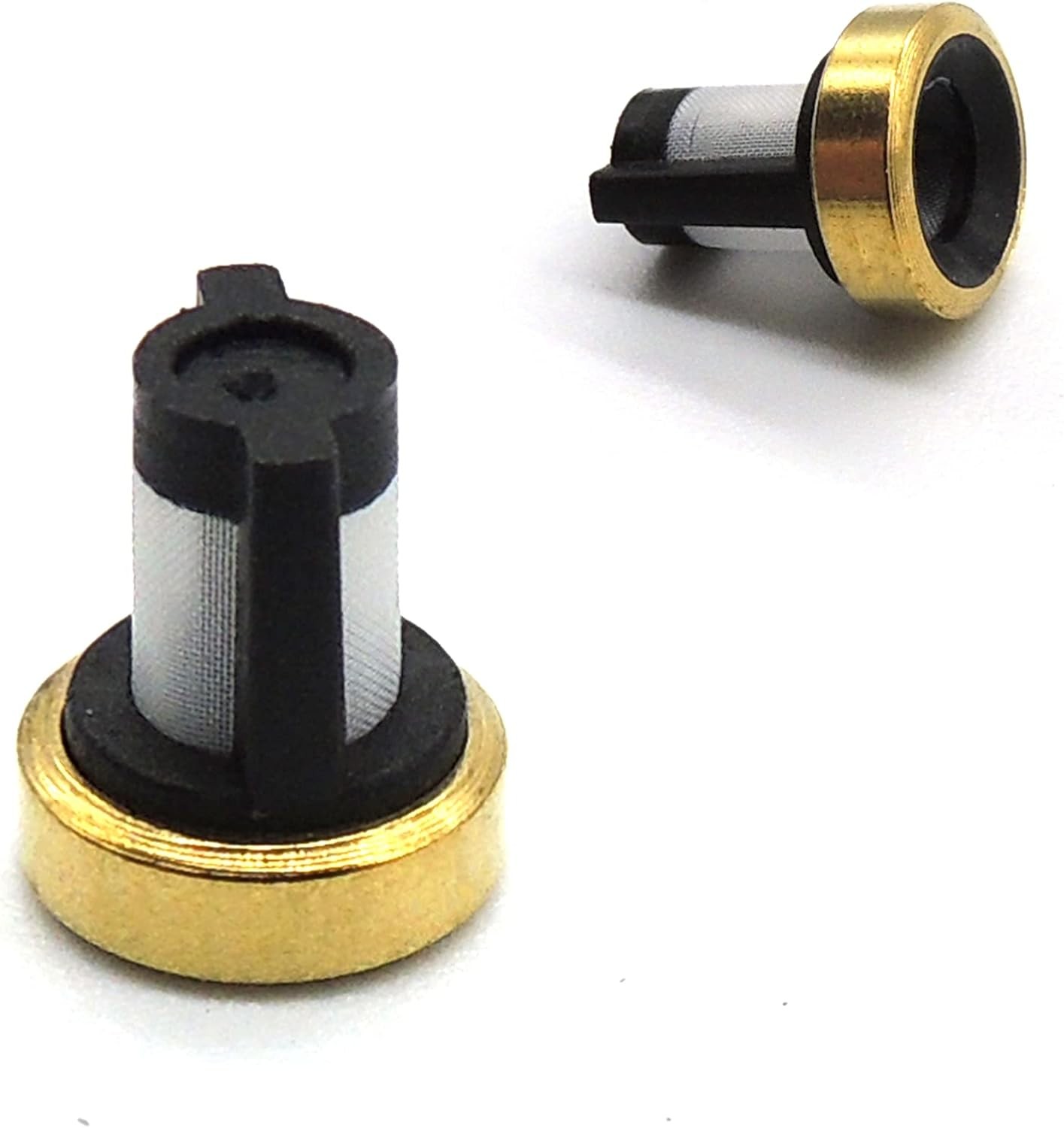

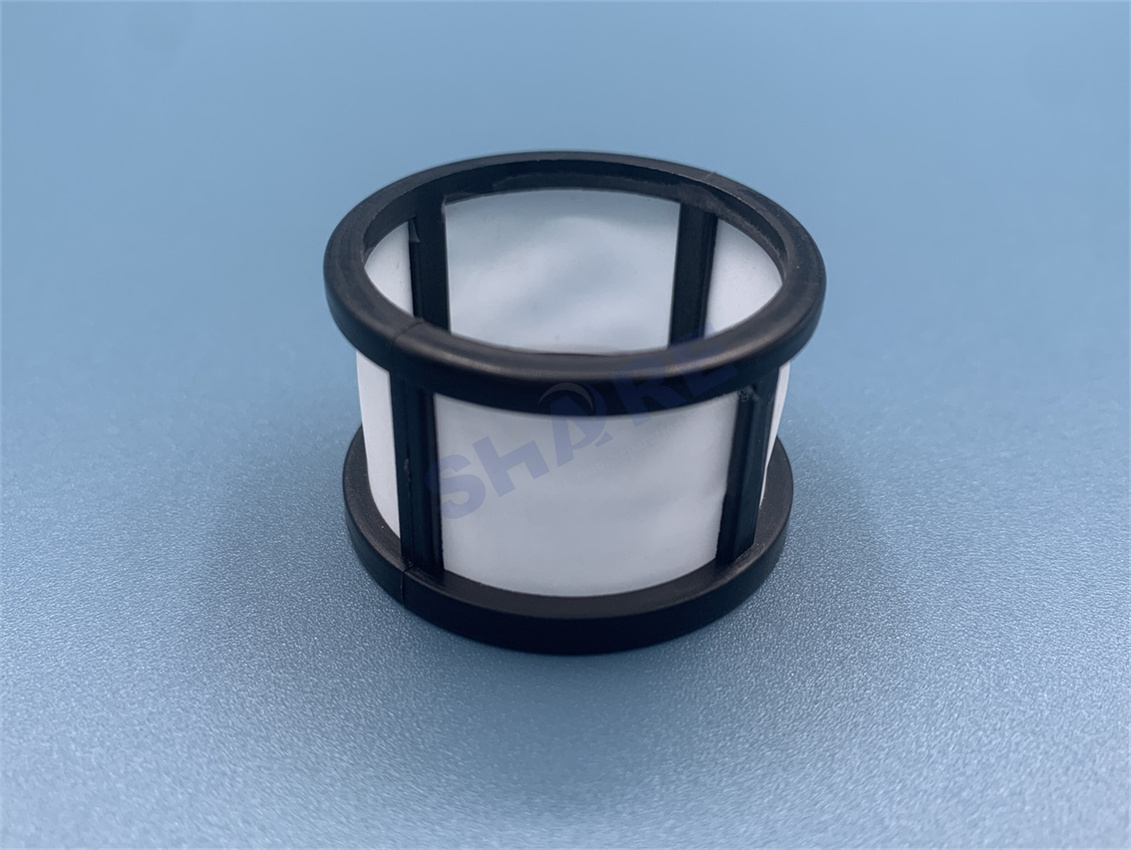

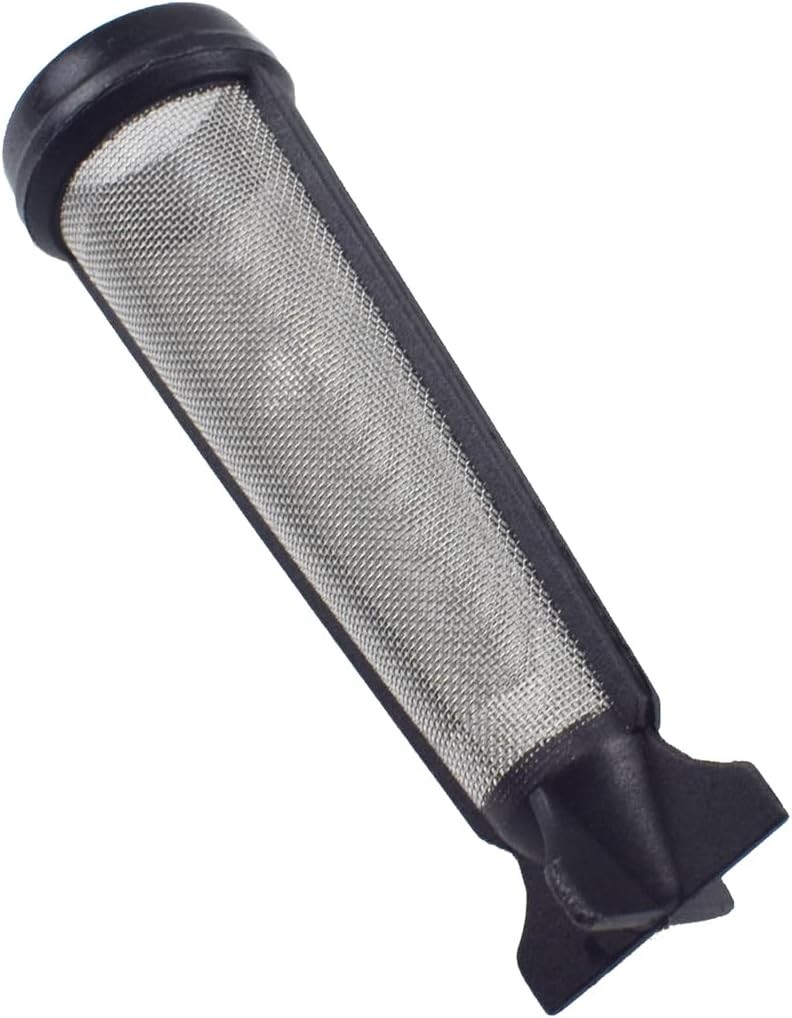

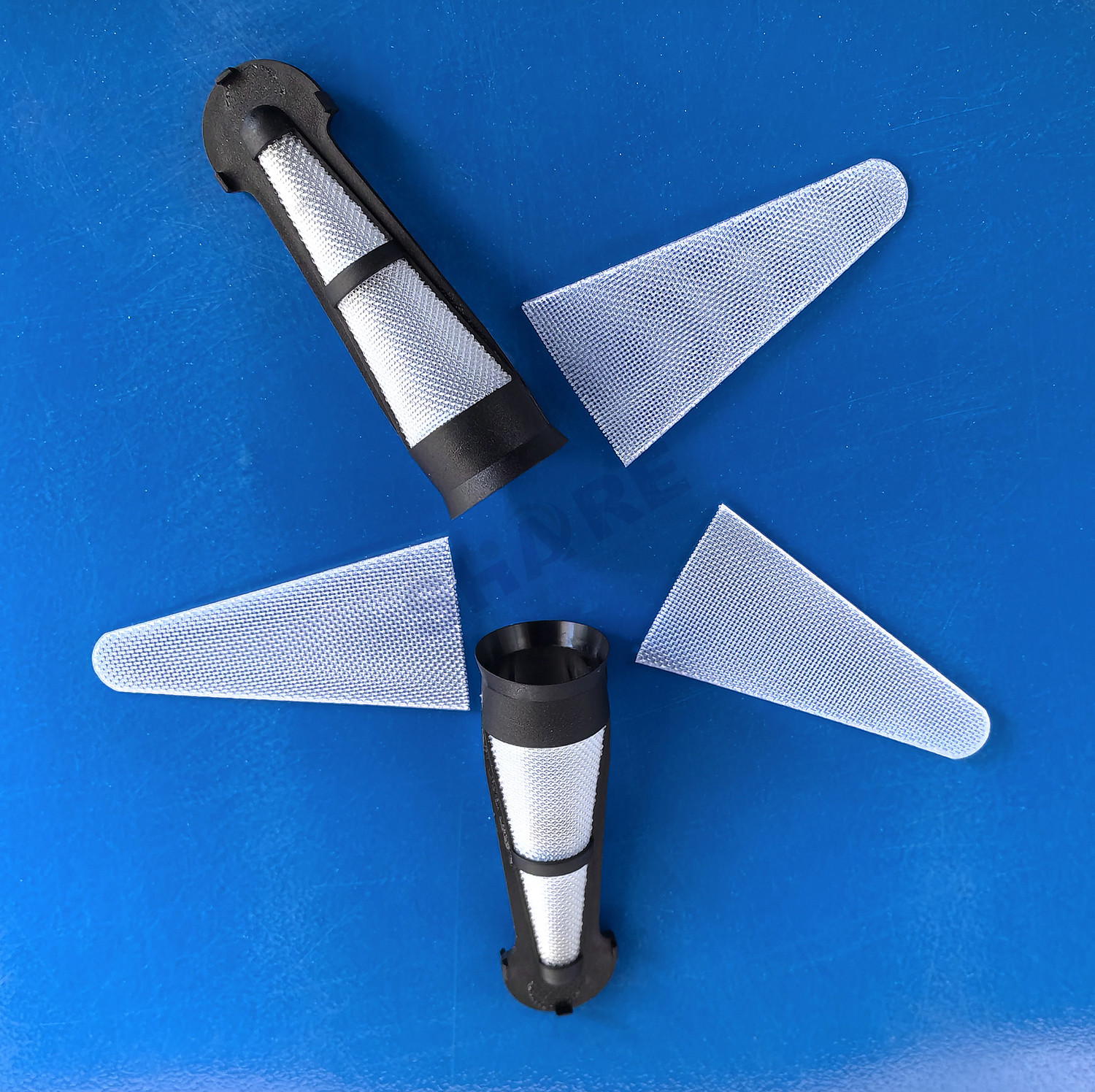

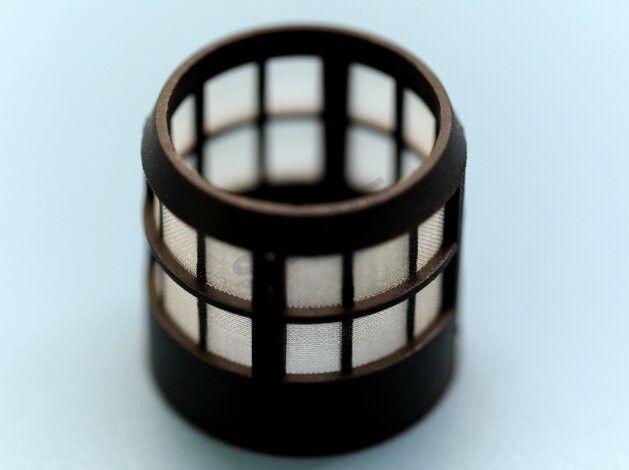

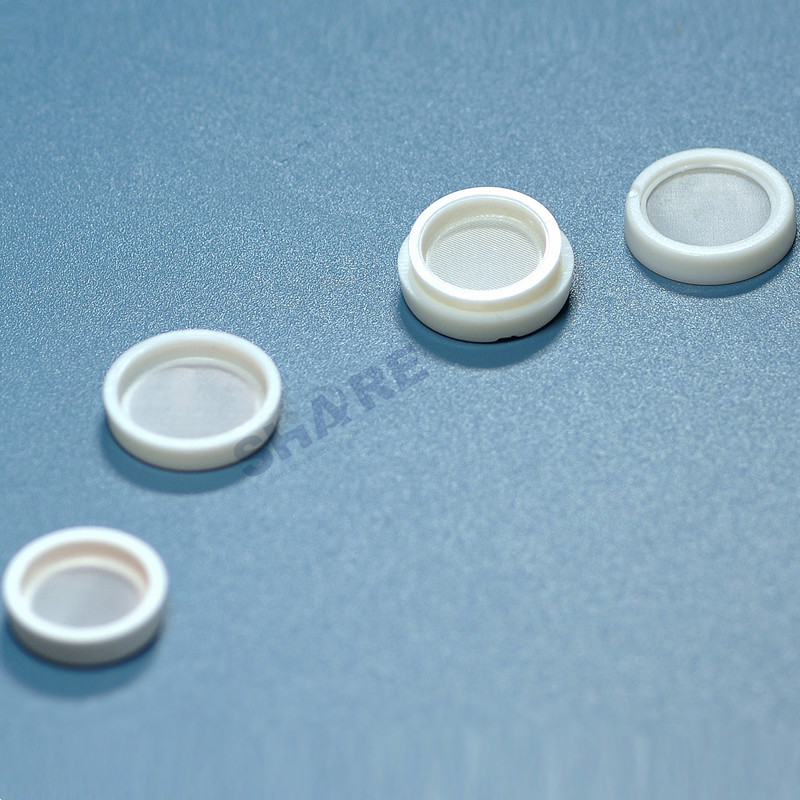

Are you ready for a visual feast? Step into the world of Plastic
Filters now!
Due to the platform's limit on the number of images, reach out to
us to continue enjoying more plastic filters.
Call or email us for more information and support about our
specific customized molded plastic filters for various
applications.
SHARE application specialists with decades of years experiences
will help you select the best solution for your application.
Packaging & Shipping
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the
actual size
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage
during transportation
4. Package belt strengthen if pallets are available
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date,
order number, batch number etc.
| Port to Port | Door to Door |
| Express(DHL,UPS,FEDEX, EMS) | | 1 - 5 days |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are
one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your
evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly
notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically,
it takes 5 to 15 working days for us to complete mass production once you have
placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and
automated 3D image-inspection equipment, our production operators
conduct self-inspections at every stage of the process.
Additionally, we have spot inspections and final inspections
carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting
capabilities from yarn over weaving to converted items with
professional technical team and quality guarantee and management
for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
