    Nylon Filter Mesh Tube For Water Medical Milling Automotive Filtration

    Ask Lasest Price
    Brand Name : SHARE FILTERS
    Model Number : SG-FT-PA-02
    Certification : Reach Svhc, SGS RoHS, US California Proposition 65
    Price : $0.5 for 100 M2, $0.45 for 1,000 M2, $0.4 for 10, 000 M2
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 5, 0000 pcs / day
    Delivery Time : 5 to 20 working days
    • Product Details
    • Company Profile

    Nylon Filter Mesh Tube For Water Medical Milling Automotive Filtration


    SHARE has been customizing mesh components to fit our customers' needs and applications for decades. We are able to convert our precision woven filter mesh fabrics(PA, PET, PP) into various cut-to-order discs, tubes, ribbons, shapes, cut-to-size sections, bags. These are just a few examples that SHARE processes with cold cutting, ultrasonics welding and hot cutting technology.

    NYLON MESH FILTER TUBE


    • Mesh filter tube made of food grade nylon material.
    • With a precise mesh design, even the smallest particles can be effectively captured.
    • With superior filtration performance, your filter remains free of impurities and contaminants.
    • Available in a wide range of diameters, weights, and mesh sizes.
    • Can be further processed into various types of cylindrical molded filters

    1. Nylon Tubes Specifications


    Item NameNylon Filter Mesh Tube
    ManufacturerTaizhou Share Filters Co., Ltd.
    BrandSHARE FILTERS
    MaterialPrecision nylon pa6 and pa 6.6 filter mesh
    Micron Rating2500 micron to 3 micron
    Tube DiameterDown to 2mm
    Tube LengthUp to 500 meters
    Tube TypeContinuous tubes and Tube cuts in tublar, round, square, rectangular, trapezoidal, circular shape, etc.
    Various size and diameter can be tailored according to customer's specification or drawing
    SeamSingle seam, double seam and overlapping seam
    Processing TechnologiesCold, heat, ultrasonic, laser
    Features1. Non-toxic, no chemicals treatment or additive, odourless, tasteless, high strength, high elongation, good elasticity
    2. With high toughness, resistance to weak acid, oil resistance, alkali resistance, wear resistance, heat resistance and other characteristics, it also has good insulation, low lubricating coefficient characteristics, wide application range
    3. High quality material, corrosion resistance, wear resistance, long use life, smooth surface high strength, strong elastic
    4. Excellent alkaline resistance
    5. Great precision, uniform thread diameter and regular square holes
    6. Smooth surface for easy particle separation
    7. Good dimensional stability
    8. Available in disc, tube, ribbon, bag and special shapes
    9. Compliance with food grade
    10. RoHs Reach certificate
    Your Benifits1. Almost unlimited range of shapes (various technologies)
    2. Suited for healthcare applications (FDA compliant, sterile treatment)
    3. Traceability (label)
    4. Non-fraying edges (depending on selected technology)
    Quality ControlVisual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment
    Scope of applicationsWater, oil, lubricating oil, food, drink and beverage, liquid medicine, paint, chemicals, alcohol etc. automotive, irrigation, chemical processing, home appliance, medical and health, aerospace, electronics, such as air purifier filter, air conditioner filter, circulating/waster water filter, blood filter transfusion, injector filtration, coffee filter, ceramics, waste water treatment

    2. Nylon Tubes Types


    Tubes can be devided into continuous tube and tube cuts by length.

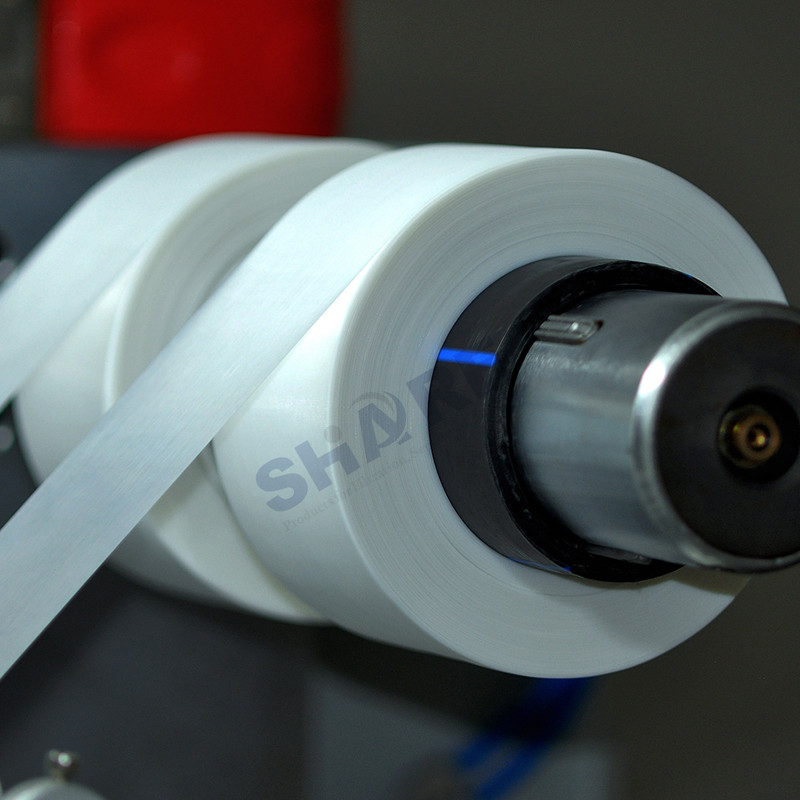

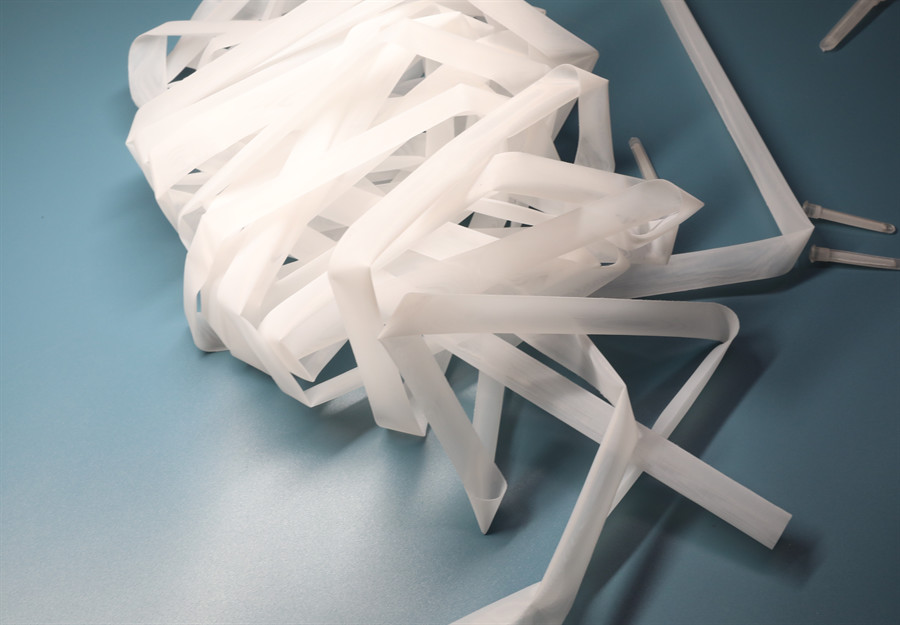

    1. Continuous tubes: Simultaneous slitting two layers of filter mesh with heated blades to form continuous tubes. Suitable for in-molding and simple and cheap in production. Two or more narrow layers can be attached using ultrasonic slitting, a fine filtration media can be supported or protected with a coarser one. Production technology: heat, ultrasonics.


    Nylon Filter Mesh Tube For Water Medical Milling Automotive Filtration

    Nylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive Filtration

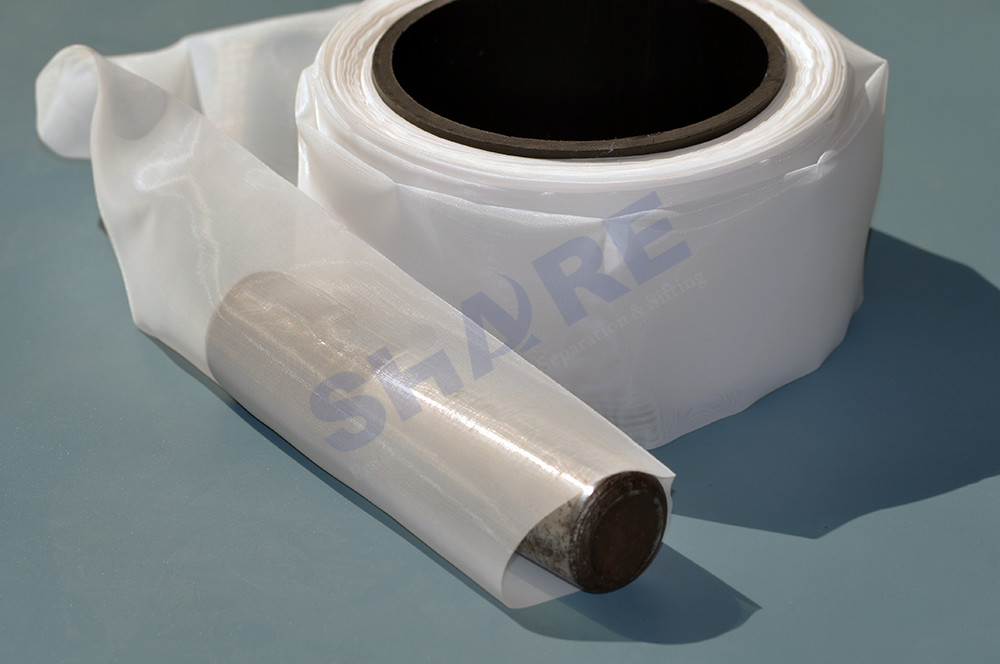

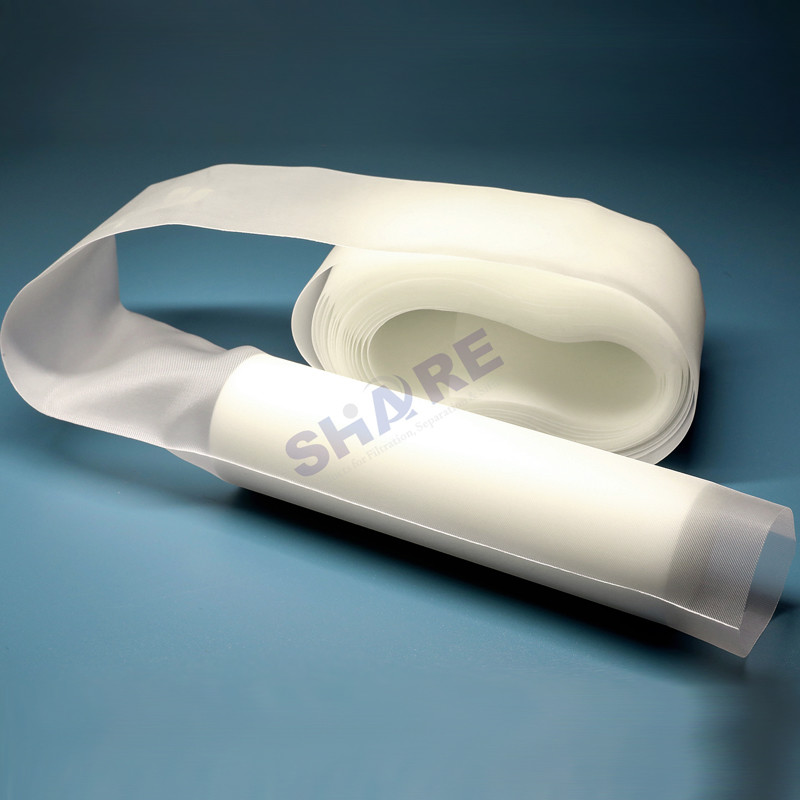

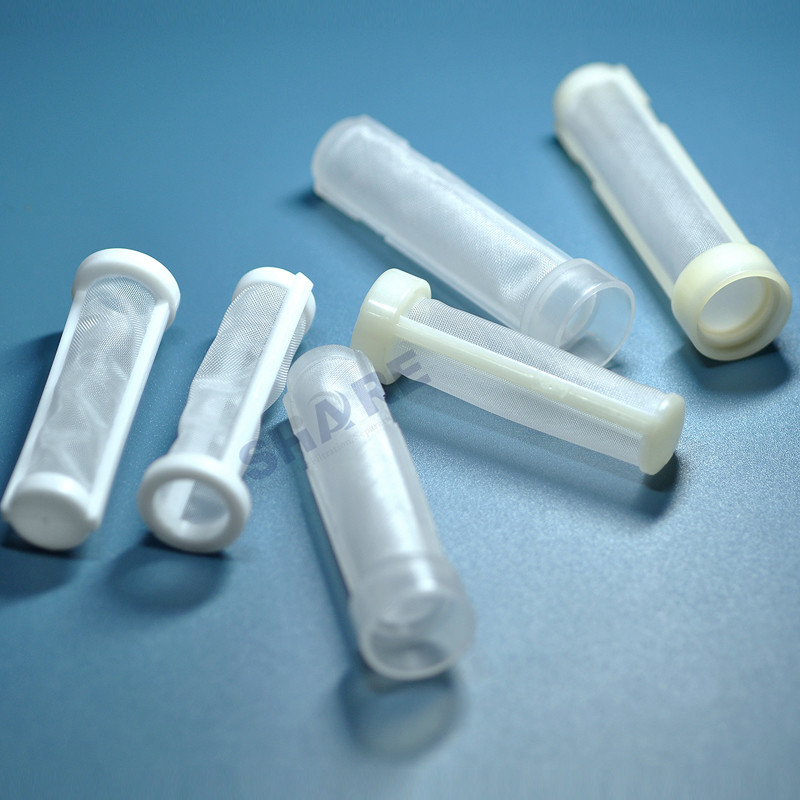

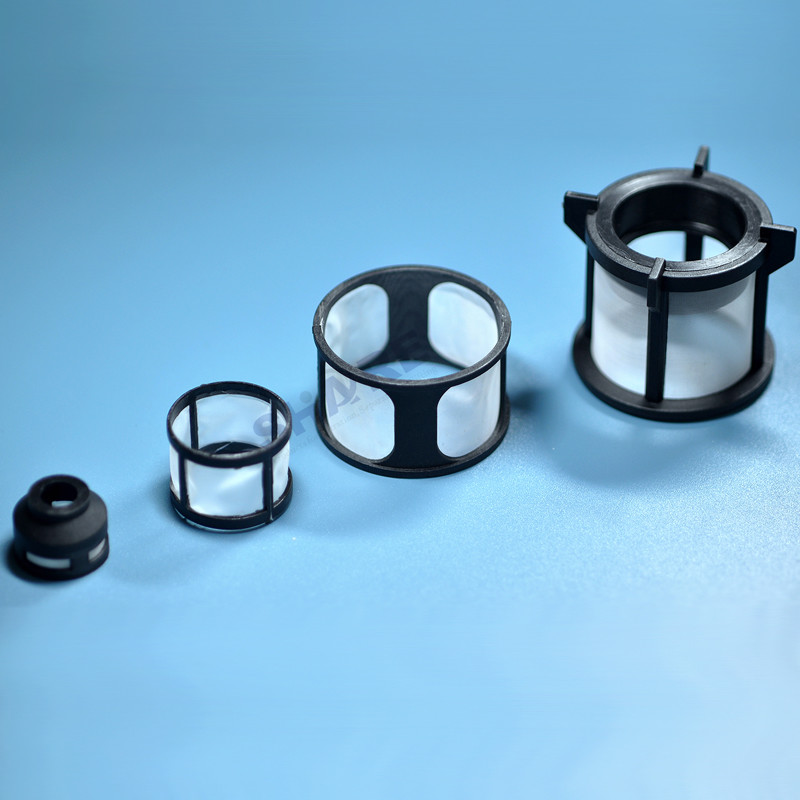

    2. Tube cuts: Cut to length and cut to size. Fabric tubes and rectangles with two open ends. Ultrasonic sealing for one end if needed. Suitable for molded cylindrical filters. Production technology: cold, heat, ultrasonics, laser depending on your required edge quality. We are happy to advise the best fabrication technology according to your specification, drawing or application.


    Nylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive Filtration


    Tubes can also be devided into single seam, double seam and overlapping seam by the welding methods.

    1. Lap Welding (Jointed Surface)

    • High welding strength
    • The productivity is low and small-sized parts can't be welded

    Nylon Filter Mesh Tube For Water Medical Milling Automotive Filtration


    2. Corner or Edge Welding (Jointed Edge)

    • Low Welding strength
    • The productivity is high and even small-sized parts can be welded

    Nylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive Filtration

    Nylon Filter Mesh Tube For Water Medical Milling Automotive Filtration


    3. Fiber Chemical Resistance Chart


    Fiber Chemical Resistance Comparison
    Fiber TypeContinuous Working Temp.Max. Working Temp.Filtration CharacteristicAbrasion ResistanceHydrolysis ResistanceAcid ResistanceAlkalis ResistanceOxidation Resistance
    PVC75ºC80ºCGoodExcellentExcellentExcellentExcellentGood
    PP90ºC100ºCGoodGoodExcellentExcellentExcellentPoor
    PA110ºC115ºCModerateExcellentPoorModerateGoodModerate
    PAN Copolymer120ºC`130ºCGoodGoodGoodModerateModerateGood
    PET135ºC150ºCExcellentExcellentPoorModeratePoorGood
    m-Aramide180ºC220ºCExcellentExcellentModerateModerateModerateGood
    PPS190ºC200ºCExcellentGoodExcellentExcellentExcellentModerate
    Polyimide240ºC280ºCExcellentModerateGoodGoodModerateExcellent
    Polyertrafluoroethylene250ºC280ºCModerateGoodExcellentExcellentExcellentExcellent
    Fiberglass250ºC280ºCModerateModerateExcellentPoorModerateExcellent

    Remarks:

    PVC=Polyvinylchloride
    PP=Polypropylene
    PA=Polyamide/Nylon
    PET=Polyester


    4. SHARE Converting Capabilities


    Customers have different requirements for filtration & separation, and relying only on single fabrication technology is not sufficient to meet the challenges of today's demanding filtration market. Therefore, after years of developments, SHARE has developed expertise in almost all processing technologies, including cold cut&stamping, heat slitting, laser cutting, ultrasonics cutting, sewing, pleating, and injection molding etc.



    SHARE Fabricated Product
    SHARE Fabrication Capabilities
    COLDHEATULTRASONICSLASER
    Continuous & tubular ribbonsRibbonRibbonRibbon
    Double seam tubular ribbonDouble seam tubular ribbon
    Multiple layer ribbonMultiple Layer ribbon
    Multiple layer tubular ribbon
    Single seam tubular
    ribbon
    Tubes & RectanglesFilter segment, two sides heat cut,
    two sides cold cut
    Rectangle, four sides
    ultrasonically cut
    Rectangle, two sides heat cut and two sides ultrasonically cut
    Tube, two open endsTube, two open ends,
    hot wire cut
    Tube, one end sealedTube, two open ends, laser cut
    Tube special execution
    (single/double layer)
    Biopsy bag with or
    without flaps
    ShapesCold punched part
    (single layer)
    Punched part
    (single or multiple layer)
    Single layer shapes, laser cut
    Pleated ElementPleated pack
    (ultrasonically cross cut)
    Pleated cartridges
    (ultrasonically sealed)
    Cone Shaped
    (Truncated)
    Single seam
    Double seam
    (single/double layer)

    5. SHARE Nylon Filter Mesh Related Products


    Nylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive Filtration
    Nylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive Filtration

    Nylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive Filtration

    Nylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive Filtration

    Nylon Filter Mesh Tube For Water Medical Milling Automotive FiltrationNylon Filter Mesh Tube For Water Medical Milling Automotive Filtration




    6. Packaging & Shipping


    SHARE mesh tubes are packed into sealed PE bags(double-layer packaging for medical parts). The label contains the following standard information:

    item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.


    Port to PortDoor to Door
    Express(DHL,UPS,FEDEX, EMS)1 - 5 days
    Air Freight1 - 5 days4 - 10 days
    Sea Freight(FCL)15 - 30 days20 - 35 days
    Sea Freight(LCL)15 - 30 days22 - 37 days

    7. FAQ


    ​​1. Where is your factory located? How can I visit there?

    We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

    2. Can I get free samples and how long can you deliver them?
    We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.


    3. How long does a quotation take?
    In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

    4. How quickly can I get my order finished?
    The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

    5. What about your quality control?
    By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.


    6. What's your largest advantage?
    One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

    7. What kind of payment terms do you accept?
    T/T and LC and more.
