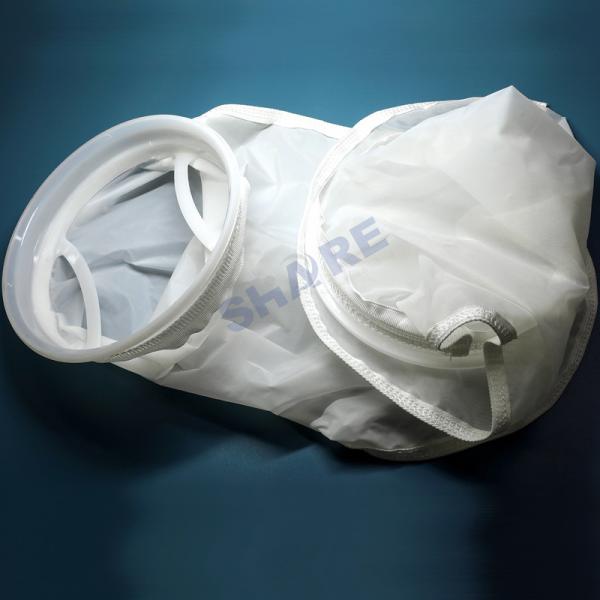

    Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt

    Ask Lasest Price
    Brand Name : Share Filters
    Model Number : Standard Liquid Filter Bag Micron Rating from 1 to 1500
    Certification : SGS
    Price : USD1.50 - USD6.50
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 3000pcs/day
    Delivery Time : 5-20 days
    • Product Details
    • Company Profile

    Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt

    Standard Liquid Filter Bag Micron Rating from 1 to 1500 in Nylon Polyester Mesh PP Felt

    Share Filters standard mesh bags are made from two primary materials: monofilament nylon mesh and monofilament polyester mesh. Monofilament mesh is woven from single-fiber threads. The openings are square and uniform. Bags made from this material have excellent strength. We have filter mesh micron ratings available ranging from 3 to 1500. The Polyester and Nylon options are FDA Approved for food contact. Mesh bags have a choice between a steel ring or a plastic flange. Mesh bags are a great choice for removing non-deformable contaminants and have a wide range of chemical compatibility.

    Share Filters offers a wide collection of standard felt liquid filter bags. Our standard felt bags are mainly made of Polypropylene (PP), Polyester (PET). Our liquid filter bags have micron sizes ranging from 1 to 200. There is a wide range of bags with various chemical compatibility as well as the choice of a steel ring or a plastic flange. The Polyester and Polypropylene options are FDA Approved for food contact. Felt bags can hold large amounts of dirt as well as other solid and gelatinous particles.

    Standard Liquid Filter Bag Specifications

    Filter Bag Standard Mesh Filter Bag Standard Felt Filter Bag
    Material Nylon Mesh, Polyester Mesh Polypropylene Felt, Polyester Felt
    Size #1 #2 #3 #4, others #1 #2 #3 #4, others
    Dimension 7 Ø x 16.5 in, 7 Ø x 32 in, 4 Ø x 8 in, 4 Ø x 14 in, others 7 Ø x 16.5 in, 7 Ø x 32 in, 4 Ø x 8 in, 4 Ø x 14 in, others
    Micron Rating 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 1500 1 5 10 25 50 100 150 200
    Seam Type Welded, Sewn Welded, Sewn
    Top Style Steel ring, plastic flange Steel ring, plastic flange
    FDA Compliant Yes Yes
    Key benefits
    • Micron ratings from 1 to 1500
    • All custom sizes available
    • High flow/low pressure drop media
    • Surface-retention filtration
    • Wide chemical compatibility
    • Sewn or welded construction
    • Choice of steel ring, plastic flange
    • Handles standard on all bags
    • Economical removal of non-deformable contaminants
    • Non-fiber releasing
    • Good removal effiencies
    • Temperature ratings to 350°F
    • Polyester and nylon materials meet FDA regulations for contact under CFR21, section 177.1520
    • Silicone-free construction
    • Micron ratings from 1 to 200
    • All custom sizes available
    • Broad chemical compatibility
    • High flow/low pressure drop
    • Sewn or fully-welded construction
    • Choice of steel ring, plastic flange
    • Temperature ratings to 200° F (PO), 275° F (PE ), 425° F (HT) and 500° F (Teflon®)
    Country China China
    Manufacture Share Filters Share Filters

    Product Pictures

    Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt

    Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt

    Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt

    Size and Flow Rate

    Share Filters nylon filter bags can be made in industry standard sized or custom sized to fit your filtration system. Other configurable options include seam style, handle, reverse collar, ring style such as galvanized steel, stainless steel, polypropylene, and more.

    Filter Bag Dimensions Maximum Flow Rate
    Size Dimension gpm m³/h
    1 7 Ø x 16.5 in 178 Ø x 419 mm 80 18
    2 7 Ø x 32 in 178 Ø x 813 mm 150 34
    3 4 Ø x 8 in 102 Ø x 203 mm 25 6
    4 4 Ø x 14 in 102 Ø x 355 mm 50 12
    5 Other customer size
    Maximum Operating Temperature
    Monofilament Nylon 239 F° 115 C°
    Monofilament Polypropylene 194 F° 100 C°
    Recommended change out at a maximum differential
    pressure of 25 psi / 1.72 bar

    Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt

    #2 #1 #4 3#

    Typical Products Application

    • Water Treatment
    • Food & Beverage
    • Agriculture
    • Petrochemical
    • Oil & Gas
    • Waste Treatment
    • Automotive
    • Processing industry
    • Chemical
    • Dyes and Resin
    • Adhesives
    • Aerosol Products
    • Vegetable Oils
    • Cleaning Fluids
    • Coolants
    • Cutting Fluids
    • Detergents
    • Dyestuffs
    • Fabric Coatings
    • Food Products
    • Pharmaceuticals

    Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt

    Nylon Filter Mesh Specification

    Fabric
    number
    Mesh count Thread
    diameter
    Mesh
    opening
    Open
    surface
    Fabric
    thickness
    Weight
    No. mesh/cm mesh/inch micron micron % micron g/m2
    JPP2 2.3 6 1000 3233 58.3 1900 412
    JPP3 3.1 8 900 2300 51.3 1700 450
    JPP4 4 10 550 1950 61 950 262
    JPP5 5 12 500 1500 56 850 271
    JPP6 6 16 400 1267 58 780 208
    JPP7 7 18 350 1079 57 675 186
    JPP8 8 20 350 900 52 685 212
    JPP9 9 24 250 860 60 455 145
    JPP10 10 25 300 700 49 576 195
    JPP12 12 30 250 583 49 470 162
    JPP12 12 30 300 533 41 585 234
    JPP14 14 35 300 414 34 595 273
    JPP16 16 40 200 425 46 370 139
    JPP16 16 40 250 375 36 485 217
    JPP20 20 50 150 350 49 375 98
    JPP20 20 50 200 300 36 385 173
    JPP24 24 60 150 267 41 285 117
    JPP28 28 70 120 237 44 215 87
    JPP30 30 76 120 213 41 225 94
    JPP32 32 80 100 213 46 165 69
    JPP36 36 90 100 178 41 178 78
    JPP40 40 100 100 150 36 190 87
    JPP43 43 110 80 152 43 135 60
    JPP48 48 120 80 130 38 145 62
    JPP56 56 140 60 120 44 85 44
    JPP59 59 150 60 110 42 98 46
    JPP64 64 160 60 100 37 105 50
    JPP72 72 180 50 90 41 82 39
    JPP80 80 200 50 75 36 90 43
    JPP100 100 250 42 60 36 65 35
    JPP120 120 305 30 55 42 52 20
    JPP120 120 305 35 45 29 60 28
    JPP120 120 305 38 42 25 67 35
    JPP120 120 305 42 42 25 75 42
    JPP130 130 330 30 47 37 55 22
    JPP130 130 330 35 42 30 62 30
    JPP130 130 330 38 40 26 74 36
    JPP140 140 355 30 38 28 53 25
    JPP140 140 355 35 37 26 65 33
    JPP140 140 355 38 32 20 68 36
    JPP145 145 368 38 30 19 64 40
    JPP150 150 380 30 34 26 50 26
    JPP150 150 380 38 31 21 68 40
    JPP165 165 420 30 30 25 59 28
    JPP165 165 420 38 25 15 75 42
    JPP180 180 460 30 25 21 60 31
    JPP200 200 508 30 20 16 65 34

    What Share Filters Do?

    Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.

    We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

    Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt

    Our in-house capabilities include enhanced processing such as weaving, slitting, stamping, laser cutting, tubing, sewing, mesh insert injection molding and other products used in various of applications.


    Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt

    Example of Applications

    Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical and etc., giving us a wealth of experience in many areas.

    Automotive Laboratory Healthcare Appliance Beverage Agriculture
    Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt

    Factory Photos

    Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt

    Packing & Transportation

    Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

    • Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
    • Large quantities is better by sea which is cost economic. Sometimes by air if urgent in need.
    • SF EXPRESS usually to Hongkong and Southeast Asia countries.
    • Samples are always sent via express commonly.

    Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt Standard Liquid Filter Bag Micron 25 50 100 125 150 200 250 300 400 500 600 800 1000 1200 Nylon Polyester Mesh PP Felt

    Contact Us

    Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


    Please connect with us today so we can learn more about your application and design specifications!

    FAQ

    Are You Factory or Trade Company ?

    We're factory, and manufacture our products in-house.

    Where Is Your factory Located? How Can I Get There?
    We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.

    Which Port You Ship?

    Ningbo port.

    Can I Get Free Samples ?
    We are pleased to provide you with free samples for testing, just the freight will be at your account.

    What's Your Payment Term ?

    T/T, LC, PayPal, and others.

    What's the Lead Time of the Order?
    The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.

    What About Your Quality Control?
    By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.

    Why Choose You ?
    One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.

    How To Delivery the Order?

    Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
