OEM Pool Clean Robot Filter Panel Basket 60 100 150 200 Micron
Robotic pool cleaner filters play a crucial role in maintaining clean pool water by capturing debris and contaminants. Standard filters usually made of mesh screens that capture larger debris, for the first cleaning or in a swimming pond, After the pool is clean and you want to make the pool and the water immaculate, use the fine robot filter cartridges.
This robot cleaner filter consist of a filter mesh held in a polymer plastic frame, allowing for a more robust part/product giving more reliability and longevity in its use. Injection moulding can take many forms and Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit your needs, as well as, offering any additional advice or service along the way.
- Normal filter basket = 100 150 microns
- Fine filter basket = 60 microns
- Coarse - spring filter = 200 micron
Advantages of Share's Moulded Filters
| - Various of of filter medias for selection
- Wide range of micron rating avaiable
- Origin Factory manufacture make cost effective
- Precise and even mesh result high filtration efficiency
- Wide experience in mesh insert injection moulding
- Smooth surface make the filters easy installation
- OEM/ODM acceptable
|  |
Specification
| Product name: | Pool clean robot filter panel basket | Support rim material: | ABS PP PA PVC, others |
| Application: | Pool clean robot filtration system | Filter mesh: | Nylon mesh, polyester mesh |
| OEM/ ODM: | Acceptable | Micron rating: | From 20μm to 300μm |
| Dimension: | Custom size | Color: | Black, clear, white, beige, other custom color |
| Supply type: | Mesh cut in shapes, welded mesh baskets, plastic moulded filters | Package: | Plastic bag, master carton |

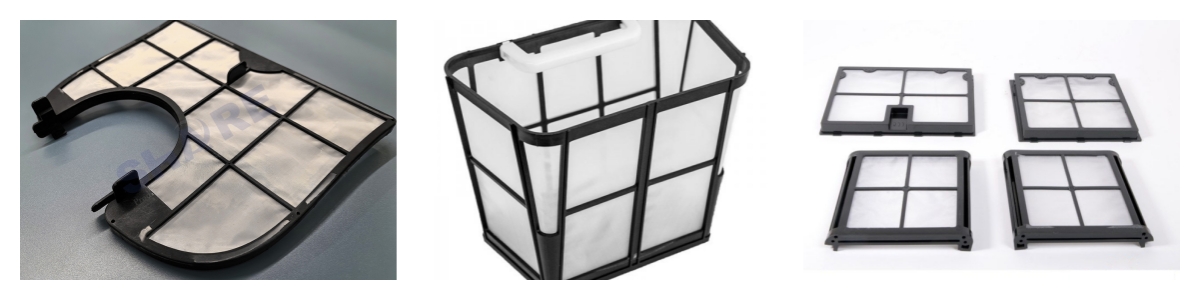

Product Pictures
If the filters you need are not included in our range, contact us for more information.
Share Filters not only manufactures the finished molded filters, but also supplies the various size of pre-cutted mesh pieces and welded mesh tubes which can directly usage or for insert injectin.
Polyester Filter Mesh Datasheet
Fabric
number | Mesh count | Thread
diameter | Mesh
opening | Open
surface | Fabric
thickness | Weight |
| No. | mesh/cm | mesh/inch | micron | micron | % | micron | g/m2 |
| DPP20 | 20S | 50 | 110 | 400 | 64 | 180 | 51 |
| DPP20 | 20T | 50 | 150 | 350 | 49 | 260 | 115 |
| DPP21 | 21T | 53 | 150 | 325 | 47 | 270 | 121 |
| DPP24 | 24S | 61 | 120 | 340 | 67 | 220 | 88 |
| DPP24 | 24T | 61 | 150 | 270 | 42 | 280 | 138 |
| DPP27 | 27T | 68 | 120 | 250 | 46 | 230 | 100 |
| DPP28 | 28S | 71 | 80 | 280 | 62 | 150 | 46 |
| DPP28 | 28T | 71 | 120 | 240 | 45 | 230 | 103 |
| DPP29 | 29T | 74 | 120 | 225 | 43 | 230 | 107 |
| DPP30 | 30T | 76 | 120 | 215 | 42 | 230 | 111 |
| DPP32 | 32S | 80 | 80 | 230 | 54 | 150 | 52 |
| DPP32 | 32T | 80 | 100 | 210 | 45 | 180 | 82 |
| DPP34 | 34S | 86 | 80 | 215 | 53 | 150 | 56 |
| DPP34 | 34T | 86 | 100 | 195 | 44 | 180 | 87 |
| DPP36 | 36T | 91 | 100 | 180 | 42 | 180 | 92 |
| DPP39 | 39S | 99 | 55 | 200 | 61 | 95 | 30 |
| DPP39 | 39T | 99 | 64 | 190 | 55 | 115 | 40 |
| DPP40 | 40T | 102 | 100 | 150 | 36 | 190 | 103 |
| DPP43 | 43T | 110 | 80 | 150 | 42 | 155 | 71 |
| DPP47 | 47S | 120 | 55 | 160 | 57 | 96 | 36 |
| DPP47 | 47T | 120 | 64 | 150 | 50 | 120 | 48 |
| DPP47 | 47HD | 120 | 71 | 140 | 43 | 130 | 59 |
| DPP49 | 49S | 125 | 64 | 140 | 47 | 120 | 50 |
| DPP49 | 49T | 125 | 71 | 135 | 44 | 130 | 62 |
| DPP53 | 53S | 135 | 45 | 144 | 55 | 76 | 27 |
| DPP53 | 53S | 135 | 55 | 135 | 51 | 97 | 40 |
| DPP53 | 53T | 135 | 64 | 125 | 44 | 122 | 54 |
| DPP53 | 53T | 135 | 71 | 117 | 39 | 132 | 67 |
| DPP59 | 59S | 150 | 55 | 115 | 46 | 99 | 45 |
| DPP59 | 59T | 150 | 64 | 105 | 38 | 123 | 61 |
| DPP64 | 64S | 160 | 55 | 100 | 41 | 100 | 48 |
| DPP64 | 64T | 160 | 64 | 90 | 33 | 125 | 66 |
| DPP72 | 72S | 180 | 45 | 95 | 47 | 78 | 37 |
| DPP72 | 72T | 180 | 55 | 85 | 38 | 102 | 55 |
| DPP77 | 77T | 195 | 55 | 75 | 33 | 105 | 58 |
| DPP80 | 80S | 200 | 45 | 80 | 41 | 80 | 41 |
| DPP80 | 80T | 200 | 48 | 85 | 44 | 86 | 44 |
| DPP90 | 90S | 230 | 39 | 70 | 40 | 68 | 34 |
| DPP90 | 90 | 230 | 45 | 68 | 34 | 80 | 46 |
| DPP90 | 90T | 230 | 48 | 65 | 33 | 82 | 49 |
| DPP100 | 100T | 250 | 39 | 60 | 36 | 69 | 38 |
| DPP110 | 110T | 280 | 34 | 56 | 38 | 62 | 34 |
| DPP110 | 110HD | 280 | 39 | 52 | 33 | 70 | 42 |
| DPP120 | 120S | 300 | 31 | 52 | 40 | 48 | 32 |
| DPP120 | 120T | 300 | 34 | 48 | 33 | 63 | 37 |
| DPP120 | 120HD | 300 | 39 | 44 | 28 | 72 | 46 |
| DPP130 | 130S | 330 | 31 | 47 | 37 | 50 | 35 |
| DPP130 | 130T | 330 | 34 | 42 | 30 | 58 | 40 |
| DPP140 | 140S | 350 | 31 | 43 | 34 | 50 | 37 |
This just a part of specifications which commonly used.
 | Mesh count (n/cm), (n/in) The mesh count stands for the number of openings per inch. Mesh opening (μm) The mesh opening w is the distance between two adjacent warp or weft thread. Thread diameter (μm) The thread diameter is measured on the thread before weaving. Open area (%) The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area |
Steps in the Making of a Custom-made Filter Element
Share Filters can take action at any stage of the custom filter element design process, either :
- In consulting: which is the right filter media for a tube, a bag, a cartridge, a strainer?
- In study: how to implement the filter fabric in a simple and economical way. Is it necessary to stitch, weld or inject, which plastic is best used for the support rim?
- Prototyping and tooling making.
- In production: samples test then mass production.
Share Filters, An OEM Mesh Insert Moulded Filters Manufacture From China
As a filter meshes and moulded filters manufacture, Share Filters always find the best solution to work with our OEM customers to collaborate on their filtration product development projects. Our experienced engineers are able to not only to meet your functional requirements, but also to recommend design alterations to improve performance and manufacturability. We will concentrate on the following:
| Consider Area | Factors | Outcoming |
Filtration Media |  | Select right material, weave type, pore size, thread diam, heat treatment, coatings | Media selected meets the required performance |
Component Design |  | Consider supporting media, housing, end caps | The filtration components can perform well in working condition |
Manufacturing Process |  | Design lends itself to easy manufacture and economic cost? | Produced at low cost of manufacture and high efficiency |
Quality Control |  | Determine parameters and frequency of measurement | High quality, precision filter components |
Example of Application
Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical and etc., giving us a wealth of experience in many areas.
| Automotive | Laboratory | Healthcare | Appliance | Beverage | Agriculture |
 |  |  |  |  |  |
What Share Filters Do?
Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world.
Filter mesh in rolls, shapes, tubes, bags, Injection-moulded filters and similar products of various shapes, sizes are our primary business.
As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure, from simple components like mesh pieces to complex devices like custom combination moulded filters.
We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic injection moulding in good conditions. The moulding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.
Factory Capabilities
Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to mesh ribbons, mesh shapes , discs, mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.
 | |  | |  |
| Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape. | | Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge. | | Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials. |
 | |  | |  |
| Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology. | | Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality. | | Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.
|
Photos of Factory
 |
| Warping | Weaving | Inspection |
 |
| Whashing | Heat setting | Ultrasonic welding, cutting |
Packing and Delivery
Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.
- Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
- Large quantities is better by sea which is cost economic. Sometimes by air if urgent in need.
- SF EXPRESS usually to Hongkong and Southeast Asia countries.
- Samples are always sent via express commonly.
Contact Us
Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the best products for your specific projects.
FAQ
Are You Factory or Trade Company ?
We're factory, and manufacture our products in-house.
Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.
Which Port You Ship?
Ningbo port.
Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.
What's Your Payment Term ?
T/T, LC, PayPal, and others.
What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.
What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.
Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.
How To Delivery the Order?
Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
