PA6 Filter Mesh 50um 100um 150um 213um 300um in Custom Diameter for Pharmaceutical Powder Filtration
PA6 filter mesh, also called nylon filter mesh, is the most popular and economical synthetic fiber mesh. Share Filters' stock of nylon filter mesh screening is available in a variety of sizes, mesh openings vary from 3μm to 3233μm, that take into consideration of the mesh opening (µ), open area, mesh count (threads per inch) and thread diameter. Other specifications such as weight (kg/m²), thickness (µ), and air permeability are available upon request.
Efficient and economic solid / liquid separation, and powder filtration are vital processing stages and the key to success for pharmaceutical & medical production. Share Filters not only offers filter mesh in rolls, but also convert the filter mesh into all kinds of customized pieces, shapes, tubes, bags and plastic molded filters.
| Benefits from Pre-cut Filter Mesh Parts - Specific to the customer’s design needs
- Wide range of micron rating and thread diameter options
- Non-fraying and clean edges(depends on the technology)
- Convenient for insert moulding
- High productivity
|  |
PA6 Filter Mesh Circle Specification
| Product name: | PA6(Nylon) filter mesh circle | Circle diameter: | 4cm 5cm 6cm 7cm, other custom diameter |
| Application: | Liquid, powder, air filtration | Mesh pore size: | 50 75 100 120 150 180 213 micron, others |
| Colour: | Natural | Packing: | 50 100 pcs per bag |
| Material: | 100% monofilament PA6 woven filter mesh | Comply: | FDA, European regulation |
| Other material option: | Polyester mesh, polypropylene mesh | Other product forms: | Filter mesh in rolls, in cuuted pieces, welde bags, tubes, moulded filters |
Product Pictures
PA6(Nylon) Filter Mesh Technical Data 20μm-00μm
Fabric
number | Mesh count | Thread
diameter | Mesh
opening | Open
surface | Fabric
thickness | Weight |
| NO. | mesh/cm | mesh/inch | micron | micron | % | micron | g/m2 |
| JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
| JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
| JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
| JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
| JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
| JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
| JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
| JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
| JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
| JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
| JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 |
| JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 |
| JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
| JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
| JPP100 | 100 | 250 | 42 | 60 | 36 | 65 | 35 |
| JPP120 | 120 | 305 | 30 | 55 | 42 | 52 | 20 |
| JPP120 | 120 | 305 | 35 | 45 | 29 | 60 | 28 |
| JPP120 | 120 | 305 | 38 | 42 | 25 | 67 | 35 |
| JPP120 | 120 | 305 | 42 | 42 | 25 | 75 | 42 |
| JPP130 | 130 | 330 | 30 | 47 | 37 | 55 | 22 |
| JPP130 | 130 | 330 | 35 | 42 | 30 | 62 | 30 |
| JPP130 | 130 | 330 | 38 | 40 | 26 | 74 | 36 |
| JPP140 | 140 | 355 | 30 | 38 | 28 | 53 | 25 |
| JPP140 | 140 | 355 | 35 | 37 | 26 | 65 | 33 |
| JPP140 | 140 | 355 | 38 | 32 | 20 | 68 | 36 |
| JPP145 | 145 | 368 | 38 | 30 | 19 | 64 | 40 |
| JPP150 | 150 | 380 | 30 | 34 | 26 | 50 | 26 |
| JPP150 | 150 | 380 | 38 | 31 | 21 | 68 | 40 |
| JPP165 | 165 | 420 | 30 | 30 | 25 | 59 | 28 |
| JPP165 | 165 | 420 | 38 | 25 | 15 | 75 | 42 |
| JPP180 | 180 | 460 | 30 | 25 | 21 | 60 | 31 |
| JPP200 | 200 | 508 | 30 | 20 | 16 | 65 | 34 |
This just a small part of specifications.
 | Mesh count (n/cm), (n/in) The mesh count stands for the number of openings per inch. Mesh opening (μm) The mesh opening w is the distance between two adjacent warp or weft thread. Thread diameter (μm) The thread diameter is measured on the thread before weaving. Open area (%) The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area |
| The Property of Nylon Filter Mesh: - Comply with U.S. FDA Code of Federal Regulations, Title 21 - Food and Drugs
- High tensile strength
- Precise and even mesh opening
- Elasticity and flexibility
- Good resistance to alkalis
- Temperatures up to 120°C
- Easy cutting, dyeing, and cleaning
- Washable and reusable
|  |
Fabricated Filter Mesh Elements
Share Filters has the ability to engineer woven filter meshes into finished or partly finished filtration products. The filter meshes available in nylon mesh, polyester mesh, PP mesh and stainless steel mesh. Thanks to quality equipment, anvanced processing methods and more than 20 years of experience, Share Filters provides meshes fabrics cut to size, lot-to-lot consistency and high quality custom fabricated parts, in almost any requested shapes. We process the filter mesh into all kinds of filter components, like ribbons, pieces, tubes, bags, moulded filters, which applied in different applications.
Fabricated Filter Mesh Edge Qualities
The edge quality differs significantly depending on processing technology
| Processing Technologies | Ultrasonic slitting & welding | Heat slitting & cutting | Laser cutting | Cold cutting & punching |
| Fabrication Method | Mesh materials are slitted while crushing the edge with ultrasonic vibration | Mesh materials are slitted by heat treatment (temperature close to melting point) | Almost all shapes and sizes can be processed with laser cutter | Mesh are cut by cold slitting or punching |
| Edge Quality |  |
|  |
|
| Advantage | Very clean cut edges, small material build-up
tight tolerances possible | Closed edge due to melting, possible for most mesh fabrics | Heat-sealed, non-fraying edges. High flexibility | Non-sealed edge. The most economical process, possible for all fabrics. |
Examples of Mesh Filter Components
Share Filters has the ability to engineer woven meshes into finished or partly finished products. Thanks to advanced processing equipment and more than 20 years of experience, Share Filters provides meshes fabrics cut to size, lot-to-lot consistency and high quality custom fabricated parts, in almost any requested shapes. We process the filter mesh into all kinds of filter components, like ribbons, pieces, tubes, bags, moulded filters, which applied in different equipments.
What Share Filters Do?
Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.
We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.
 |  |  |

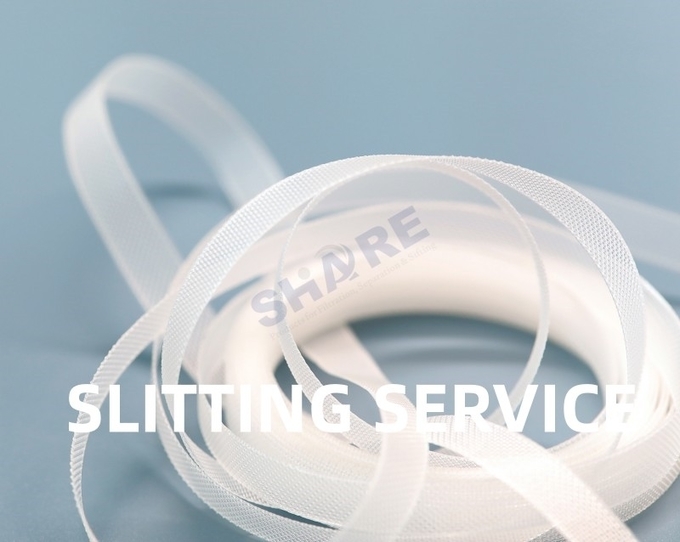

| Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape. | Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge. | Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials. |
 |  |  |

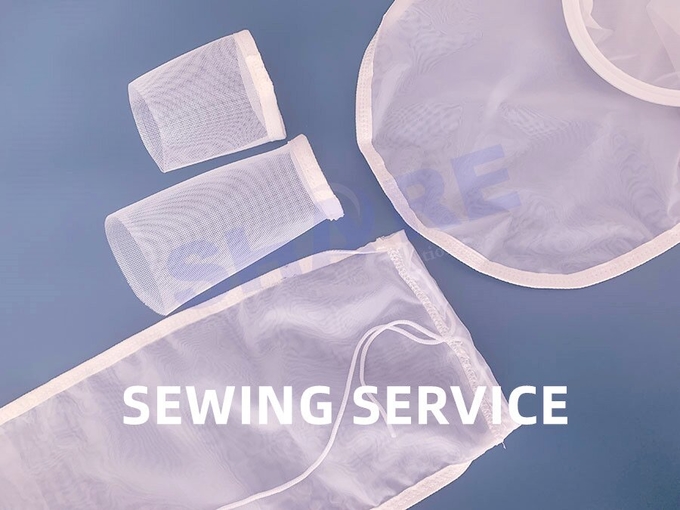

| Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology. | Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality. | Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science, etc. |
Example of Applications
Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical and etc., giving us a wealth of experience in many areas.
| Automotive | Laboratory | Healthcare | Appliance | Beverage | Agriculture |
 |  |  |  |  |  |
| Fuel filter | Biopsy bag | Blood filter | Dryer filter | Coffee filter | Water strainer |
Packing & Transportation
Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.
- Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
- Large quantities is better by sea which is cost economic. Sometimes by air if urgent in need.
- SF EXPRESS usually to Hongkong and Southeast Asia countries.
- Samples are always sent via express commonly.
Contact Us
Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.
Please connect with us today so we can learn more about your application and design specifications!
