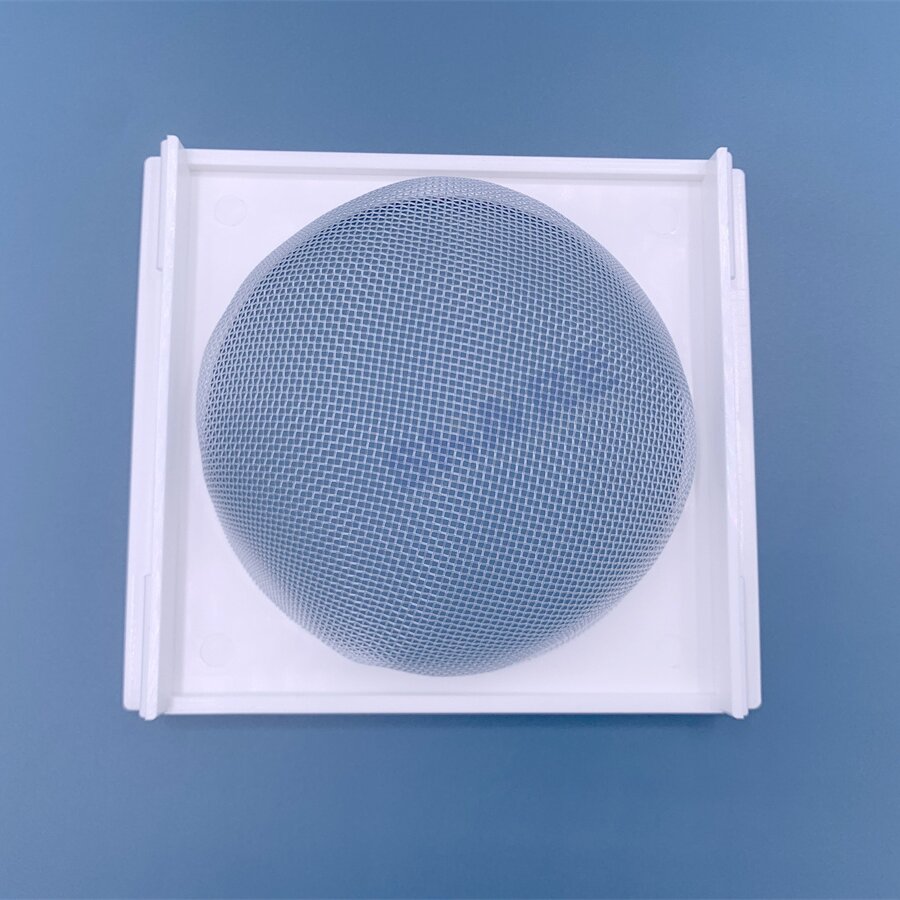

Easy Clean China Intermediate Proofer Cup Round Mesh Pocket Fit for Ø 192mm Tray for Fermentation

The bakery proofer cup is designed for proofing or measuring dough during the fermentation process. It is used to accurately measure the volume of dough and monitor its rise. Normally the shape of proofer cup is in round or retangle according the proofing machines.

In Share Filters, the rim of the proofer cup is made of high quality polypropylene (PP), which complies to FDA and EU regulations, and the cup is inserted with a high quality nylon mesh or polyester mesh, the selected the mesh of our cups with great care to guarantee the best moisture, air and heat permeability. Both the mesh and rim are suitable for direct contact with foodstuff.

Advantage of Share Filters' Proofer Cup Food Grade: both the mesh and rim comply with FDA and EU regulation Cost Effective: many sizes are available, save the cost of tooling User Friendly: designed for quick assembly and disassembly High Quality Materials: carefully selected materials with the best performence Mould Repellent: due to the design and use of high-quality materials Easy Clean: The integration injection moulding brings enhanced and superb cleaning results

Technical Data

Specifications	A	B	C	D	E
Dimensions in mm	203.5	192.4	9.5	2.54	74.9
Dimensions in inch	8.0"	7.57"	0.37"	0.10"	2.94
Material mesh	Coarse nylon mesh, polyester mesh, felt
Material rim	PP, PE

Customization

We can also use other colors or materials instead of our available versions on request.

If the desired dimensions of the proofer cups are not included in our range, we can customize according to your specifications.

Product Pictures

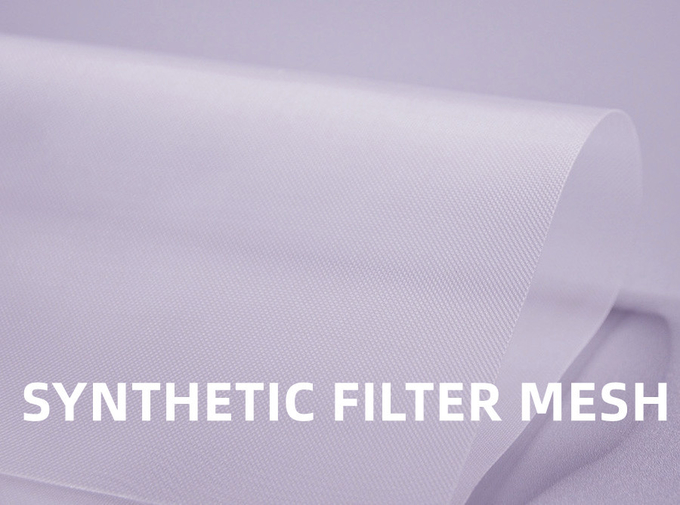

Nylon Filter Mesh Datasheet for Bakery Proofer Cup

Fabric Number	Mesh Count		Thread Diameter	Mesh Opening	Open Area	Mesh Thickness	Weight
	n/cm	n/inch	μm	μm	%	μm	g/m2
PA 860/60	9	24	250	860	58	455	145
PA 700/49	10	25	300	700	49	576	195
PA 583/49	12	30	250	583	49	470	162
PA 533/41	12	30	300	533	41	585	234
PA 414/34	14	35	300	414	34	595	273
PA 425/46	16	40	200	425	46	370	139
PA 375/36	16	40	250	375	36	485	217
PA 350/49	20	50	150	350	49	375	98
PA 300/36	20	50	200	300	36	385	173
PA 267/41	24	60	150	267	41	285	117
PA 237/44	28	70	120	237	44	215	87
PA 213/41	30	76	120	213	41	225	94
PA 213/46	32	80	100	213	46	165	69
PA 178/41	36	90	100	178	41	178	78
PA 150/36	40	100	100	150	36	190	87
PA 152/43	43	110	80	152	42	135	60
PA 130/38	48	120	80	130	38	145	62
PA 120/44	56	140	60	120	44	85	44
PA 110/42	59	150	60	110	41	98	46
PA 100/37	64	160	60	100	38	105	50

This just a part of specifications which common used.

Other Moulded Filters for Food & Beverage Industry

Steps in The Making of a Custom-made Filter Element

Share Filters can take action at any stage of the custom filter element design process, either :

In consulting: which is the right filter media for a bag, a disc, a cartridge, a strainer ?
In study: how to implement the filter mesh in a simple and economical way. Is it necessary to stitch, weld or inject?
In production: prototyping, tooling, test and then mass production.

Share Filters' plastic moulded filter consists of a filter mesh held in polymer by insert injection moulding, allowing for a more robust part giving more reliability and longevity in its usage. This injection moulding processing can take many forms. Thanks to advance equipments and more than 20 years of experience, Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit your needs, as well as, offering any additional advice or service along the way, from tool making to final products.

What Share Filters Do?

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.

We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape.	Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.	Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials.
Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.	Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.	Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science an

Application of Share Filters Products

Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.

Automotive	Laboratory	Appliance	Food & Beverage	Agriculture	Power tool

Contact Us

Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.

Please connect with us now so we can learn more about your application and design specifications!

Photos of Factory

Warping	Weaving	Inspection
Whashing	Heat setting	Ultrasonic cutting, welding

FAQ

Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.

Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.

Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.

When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.

What's Your Payment Term ?

T/T and LC and more.

What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.

What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.

Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.

How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
