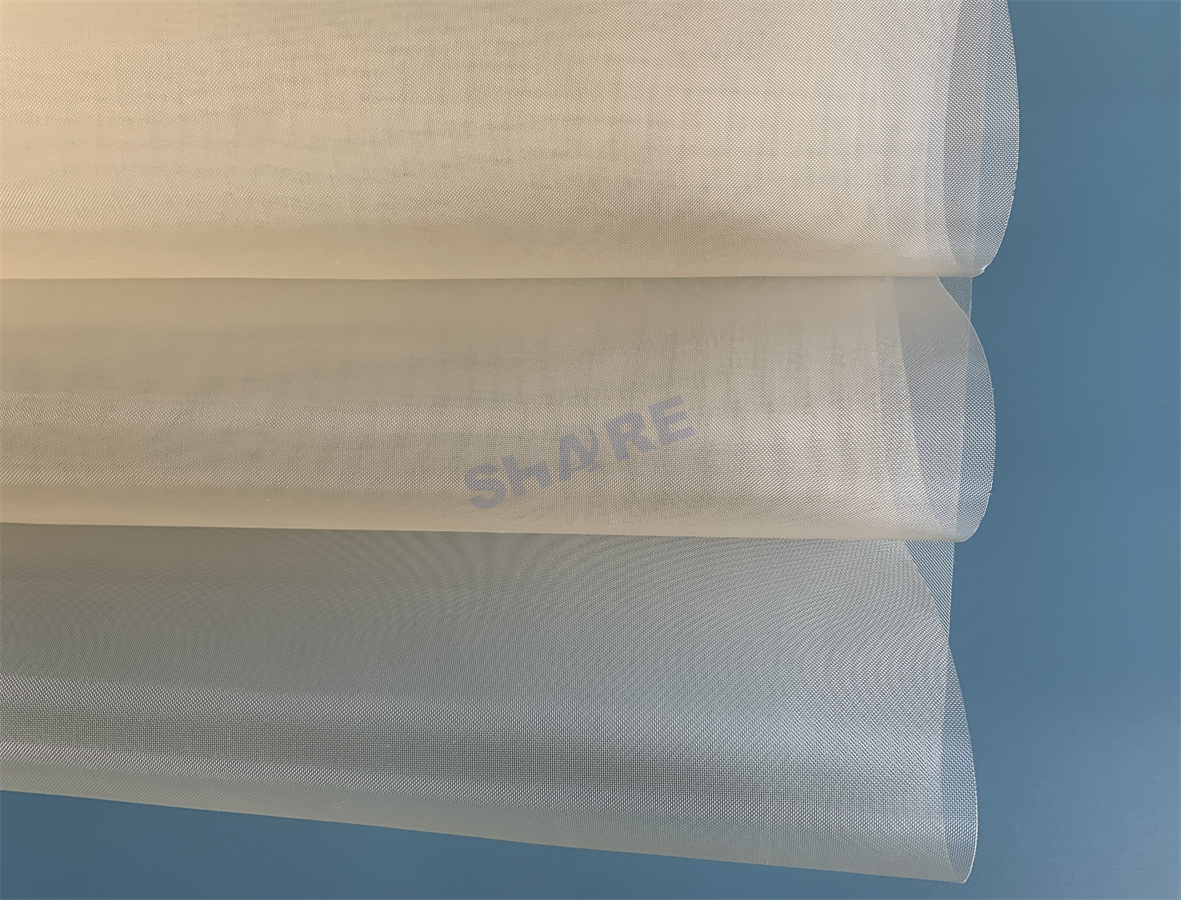

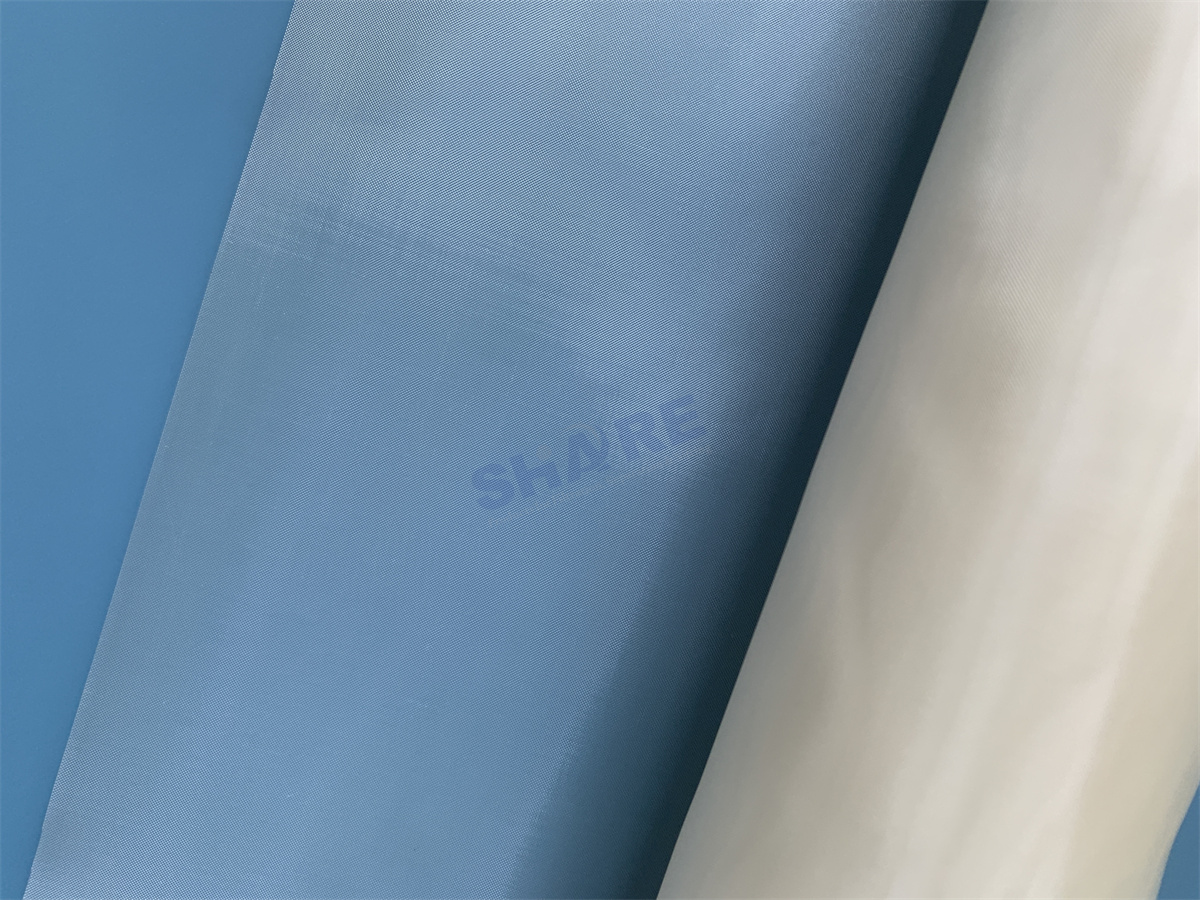

PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis

PPS (Polyphenylene Sulfide) mesh is a high-performance synthetic mesh known for its excellent thermal and chemical resistance. The mesh properties provide solutions for wide range of industries applications, especially where high temperatures and aggressive chemicals are involved, the water ShareFilters' PPS filter mesh thickness is available in 80μm 100μm 260μm 280μm, the Toray yarn is also avaible in thickness of 80μm and 280μm.

PPS Filter Mesh Data Sheet

This just a part of specifications which commonly used.

Mesh Count: Number of openings per inch or centimeter Weave Type: Plain Weave (PW) or Twill Weave (TW) Thread Diameter: The diameter of each thread before weaving Mesh Thickness: The average thickness of the woven mesh Mesh Opening: The distance between adjacent threads Mesh Opening =25400÷Mesh Count(per inch)−Wire Diameter Mesh Opening =10000÷Mesh Count(per cm)−Wire Diameter Open Area: The ratio (%) of the open area to the thread area within a woven mesh Open Area %=(Opening Size)2÷(Opening Size+Wire Diameter)2×100

Advantage of PPS Mesh

• High temperature resistance (190° C in continuous using and 220° C at top level)
• Excellent chemical resistance. Good resistance to a wide range of chemicals at high temperature
• Excellent hydrolysis and electrolysis resistance. Very resistant to steam and high pressure water
• Very good mechanical strength
• Dimensional stability at high temperatures
• Corrosion resistance
• Environmentally friendly. Unlike wire mesh, PPS is fully recyclable
• Alternative to PEEK mesh

Properties of Industry Mesh

Material	PA6	PA66	PET	PP	PPS	PEEK
Specific gravity (g/mm²)	1.14	1.14	1.38	0.91	1.37	1.30
Tensile strength(daN/mm²)	41-67	41-67	45-75	35-62	60-91	33-75
Relative strength at wet conditions(%)	89-90	85-90	100	100		100
Elongation at break (%)	20-35	20-35	15-30	20-50		20-40
Moisture absorption at 20°C / 65% r.h. (%)	3.5-4	3.5-4	0.4	0	0.6%	0.1
Melting point (°C)	215-220	250-260	250-260	165-175	285-288	334
Softening point (°C)	180	230-235	220-240	140-155	245-270	300
Working temperature dry (°C)	-40-115	-40-115	-75 to +150	-30 to +90	Until 215	up to 250
Stability to light	poor	poor	poor	poor	good	good
Atmospheric influence	-	-	none	none		none
Abrasion resistance	good	good	limited	limited		good
Acid resistance	limited-poor	limited-poor	good	good	good	good
Alkaline resistance	good	good	limited	good	good	good
Stability to solvents	limited	limited	good	good	good	good
Hydrolysis resistance	good	good	limited	good	good	good

What Share Filters Do

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.

We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The moulding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

Factory Capabilities

Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to mesh ribbons, mesh shapes , discs, mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.

Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape.		Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.		Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials.
Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.		Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.		Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.

Application of Share Filters Products

Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.

Automotive	Laboratory	Healthcare	Appliance	Beverage	Agriculture
