SHARE's PPS mesh/membranes is made of 100% PPS monofilament and are
widely used for energy and environmental applications. It offers
remarkable corrosion resistance, thermal stability, and flame
retardancy, excel in harsh conditions like high temperatures and
strong chemical environments.
Our PPS monofilament mesh has a melting point of 285ºC and is
capable of enduring continuous usage at temperatures up to 190ºC.
Additionally, it exhibits resistance to hydrolysis even at elevated
temperatures, as well as to acids, alkalis, and organic solvents.
Features
Affordable pricing
Uniform fabric structure
High porosity and large surface area
Exceptional corrosion resistance, thermal stability, and flame
retardancy
Applications
From what we've gathered, our clients are mainly using our PPS mesh
for
- ion exchange processes
- alkaline water electrolysis for hydrogen production
- feed and food drying
- filter for food, semiconductor and chemical applications
- chemical catalyst substrates
- oil-water separation
- gas filtration and purification
- wastewater treatment
- air pollution control
- desalination
- and more…
Product Options
PPS mesh specifications are designed to cater to a diverse array of
applications. The available mesh options are in the following
range:
Thread Diameter
30 - 250 µm
Mesh Count
25 - 420 per inch
Mesh Opening
30 - 800 µm
Open Area
25 - 60%
Mesh Thickness
56 - 508 µm
Pattern
Plain weave, twill weave
Width
Up to 300cm (Can be cut to specific widths such as 100 cm or 200
cm, or customized to any width as per request)
Below are a few standard specifications of our PPS mesh for your
information, but this isn't the full extent. Please reach out to us
for more information.
| SHARE PPS Filter Mesh Technical Datasheet |
| Material | Item No. | Specification | Thread Diameter | Mesh Opening | Open Area | Mesh Thickness | Weight | Tensile Breaking Strength | Tensile Elongation |
|
| | | μm | μm | % | μm | g/m2 | (N/5CM) (warp/weft) | (%) (warp/weft) |
| PPS | 20T-140 | 350/51PW | 140 | 350 | 51 | 260 | 86 | 660/643 | 29.5/27.8 |
| PPS | 20T-150 | 340/48PW | 150 | 340 | 48 | 280 | 100 | 766/755 | 29.5/28.4 |
| PPS | 47T-55 | 156/55PW | 55 | 156 | 55 | 100 | 34 | 246/253 | 26.4/30 |
PPS
(Toray yarn) | 20T-150 | 340/48PW | 150 | 340 | 48 | 287 | 100 | 810/780 | 24/24 |
PPS
(Toray yarn) | 59T-45 | 125/54PW | 45 | 125 | 54 | 80 | 27 | 210/210 | 17.7/17.7 |

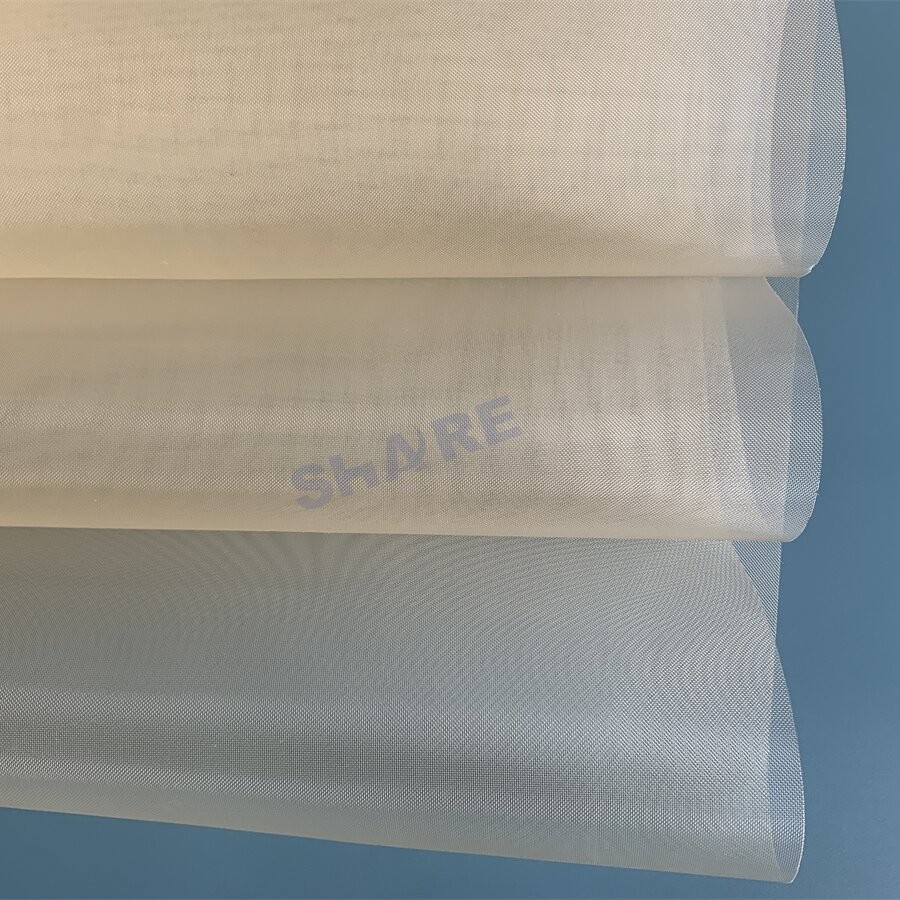

Real Images
Packaging & Shipping
1. Rolled on the paper core or plastic pipe, packed into PE bags
2. Put into standard export carton
3. Put into PP woven bag to prevent damage during transportation
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date,
order number, batch number etc.
| Port to Port | Door to Door |
| Express(DHL,UPS,FEDEX, EMS) | | 1 - 5 days |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are
one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly
notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically,
it takes 5 to 15 working days for us to complete mass production once you have
placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and
automated 3D image-inspection equipment, our production operators
conduct self-inspections at every stage of the process.
Additionally, we have spot inspections and final inspections
carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting
capabilities from yarn over weaving to converted items with
professional technical team and quality guarantee and management
for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
